Remove/install left catalytic converter - AR49.10-P-5502LF
ENGINE 157, 276.8, 278, 279 in MODEL 217
ENGINE 157, 276.8/9, 277, 278, 279 in MODEL 222

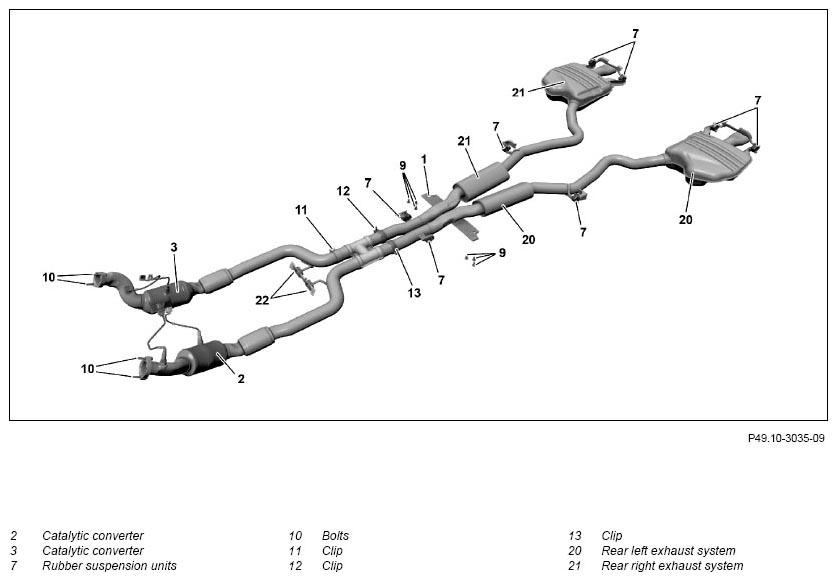

Shown on exhaust system for model 222 with engine 157
Fig 1: Left Catalytic Converter Remove/Install Components - Shown On Exhaust System For Model 222 With Engine 157
Shown on the exhaust system for engine 278
Shown on the exhaust system for engine 279
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove | |||
| 1 | Remove rear center and middle lower engine compartment paneling | AR61.20-P-1105LF | |
| 2 | Remove technical underbody protection | Engine 157, 276.8/9, 277, 278, 279 in model 222 with code Z07 (Top protection) |
AR61.40-P-1001LFS |
| 3 | Release and disconnect electrical connection of oxygen sensors for CATs (2, 3) | Engine 157, 276.8, 278, 279 in model 217 Engine 157, 276.8/9, 277, 278, 279 in model 222 |
|
| Engine 276.8 in model 217, 222 | AR07.52-P-5303LFA | ||
| Engine 276.9 in model 222 | AR07.52-P-5303LFH | ||
| Engine 277, 279 in model 222 Engine 279 in model 217 |
AR07.52-P-5303MUB | ||
| 4 | Expose feed lines for left and right oxygen sensors | ||
| 5 | Support CATs (2, 3) at rear exhaust system connecting point and secure against falling down | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 6 | Remove screw/bolts of rubber suspensions (7) on CAT (2, 3) | ||
| 7 | Unfasten screw/bolts (15), CATs (2, 3) on CATs holder | ||

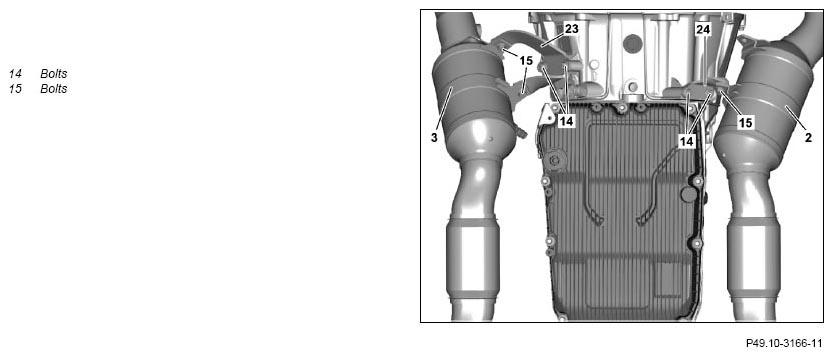

| 8 | Remove screw/bolts (14), CATs bracket (2) at transmission (3) | ||
| 9 | Remove screw/bolts (10) | Engine 157, 276.8, 278 in model 217 Engine 157, 276.8/9, 278 in model 222 |
|

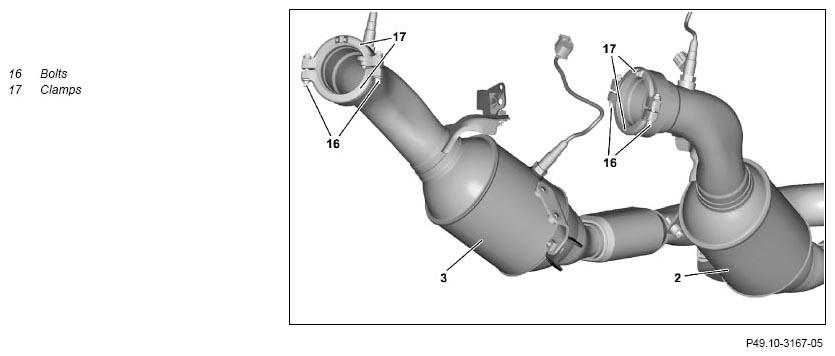

| 10 | Remove screws/bolts (16) and remove clamps (17) | Engine 277, 279 in model 222 Engine 279 in model 217 |
|
| 11 | Remove screws/bolts for clamps (12, 13) and push back clamps | ||
| 12 | Remove CATs (2, 3) in connection with an assistant downwards | ||
| 13 | Remove sealing ring at rear exhaust system connecting point or rear right exhaust system (21) to CAT (3) | ||
| 14 | Remove screw/bolt on clamp (11) | Engine 157, 277, 279 in model 222 Engine 157, 279 in model 217 When replacing the left catalytic converter (2). |
|
| 15 | Remove right (2) from left CAT (3) | Engine 157, 277, 279 in model 222 Engine 157, 279 in model 217 When replacing the left catalytic converter (2). |
|
| Install | |||
| 16 | Check rubber suspensions (7) at the CATs (2, 3) for damage and replace if necessary | ||
| 17 | Remove combustion and corrosion residue at separating points | ||
| 18 | Remove sealing ring at rear exhaust system connecting point or rear right exhaust system (21) to CAT (3) | ||
| 19 | Introduce CAT (2) in flange connection | Engine 157, 277, 279 in model 222 Engine 157, 279 in model 217 When replacing the catalytic converter (2). |
|
| 20 | Modify the left catalytic converter (2) | Engine 157, 277, 279 in model 222 Engine 157, 279 in model 217 When replacing the catalytic converter (2). |
|
| 21 | Tighten screw/bolt of the clamp (11) on the right CAT (3) flange connection slightly by hand | Engine 157, 277, 279 in model 222 Engine 157, 279 in model 217 When replacing the catalytic converter (2). |
|
| 22 | Introduce CATs (2, 3) with an assistant at the front on the ATL connecting point or exhaust manifold from below | ||
| 23 | Support CATs (2, 3) at rear exhaust system connecting point and secure against falling down | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 24 | Tighten screw/bolts (14) at CATs bracket (2, 3) at transmission slightly by hand | ||
| 25 | Tighten screw/bolts (15) at CATs bracket (2, 3) slightly by hand | ||
| 26 | Tighten screw/bolts for clamps (12, 13) slightly by hand | ||
| 27 | Slightly tighten screw/bolts (10) by hand | Engine 157, 276.8, 278 in model 217 Engine 157, 276.8/9, 278 in model 222 |
|
| 28 | Fasten clamps (17) with screw/bolts (16) and tighten screw/bolts (16) slightly by hand | Engine 277, 279 in model 222 Engine 279 in model 217 |
|
| 29 | Tighten screw/bolts on rubber suspensions (7) slightly by hand | ||
| 30 | Check installation position and unobstructed movement of all parts of CATs (2, 3) and rear exhaust system (20, 21) and re-adjust if necessary | ||
| 31 | Tighten bolts (10) | Engine 157, 276.8, 278 in model 217 Engine 157, 276.8/9, 278 in model 222 |
|
Engine 276.8/9 in model 222 Engine 278 in model 222 Bolt, front exhaust system to exhaust line |
*BA49.10-P-1001-01AN | ||
Engine 276.8 in model 217 Engine 278 in model 217 Bolt, front exhaust system to exhaust line |
*BA49.10-P-1001-02D | ||
| 32 | Tighten screw/bolts (16) of exhaust system on ATL | Engine 277, 279 in model 222 Engine 279 in model 217 |
|
Engine 279 in model 222 Clamp, front exhaust system to turbocharger |
*BA49.10-P-1023-01AN | ||
| *BA49.10-P-1006-02D | |||
| 33 | Tighten screw/bolts (14) for CATs holder (2, 3) at the front on transmission or crankcase | Engine 276 in model 217 Engine 278 in model 217 Engine 279 in model 217 Bolt, front exhaust system bracket to transmission |
*BA49.10-P-1003-02D |
Engine 276 in model 217 Engine 278 in model 217 Engine 279 in model 217 Screw/bolt, front exhaust system bracket to transmission and crankcase |
*BA49.10-P-1012-02D | ||
Engine 276 in model 222 Engine 277 in model 222 Engine 278 in model 222 Engine 279 in model 222 Bolt, front exhaust system bracket to transmission |
*BA49.10-P-1003-01AN | ||
Engine 279 in model 222 Bolt, front exhaust system bracket to transmission and crankcase |
*BA49.10-P-1022-01AN | ||
| 34 | Tighten screw/bolts (15) of holder on catalytic converters (2, 3) | Engine 276 in model 217 Engine 278 in model 217 Engine 279 in model 217 Bolt to front exhaust system bracket |
*BA49.10-P-1002-02D |
Engine 278 in model 217 Bolt, bracket to left front exhaust system |
*BA49.10-P-1011-02D | ||
Engine 276 in model 222 Engine 277 in model 222 Engine 278 in model 222 Bolt to front exhaust system bracket |
*BA49.10-P-1002-01AN | ||
Engine 279 in model 222 Bolt, front exhaust system to exhaust system bracket |
*BA49.10-P-1021-01AN | ||
| 35 | Tighten screw/bolts of clamps (11, 12, 13) | Engine 276 in model 222 Engine 277 in model 222 Engine 278 in model 222 Engine 279 in model 222 Bolt, clamp for front/center/rear exhaust system |
*BA49.10-P-1006-01AN |
Engine 276 in model 217 Engine 278 in model 217 Engine 279 in model 217 Bolt, clamp for front/center/rear exhaust system |
*BA49.10-P-1006-02D | ||
| 36 | Tighten screw/bolts of rubber suspensions (7) | Engine 276 in model 217 Engine 278 in model 217 Engine 279 in model 217 Screw/bolt, bracket for elastomer bearing for front exhaust system to rear engine support |
*BA49.10-P-1005-02D |
Engine 276 in model 222 Engine 277 in model 222 Engine 278 in model 222 Engine 279 in model 222 Bolt, bracket for elastomer bearing for front exhaust system to rear engine support |
*BA49.10-P-1005-01AN | ||
| 37 | Route feed lines for left and right oxygen sensors | Engine 157, 276.8, 278, 279 in model 217 Engine 157, 276.8/9, 277, 278, 279 in model 222 |
|
| Engine 276.8 in model 217, 222 | AR07.52-P-5303LFA | ||
| Engine 276.9 in model 222 | AR07.52-P-5303LFH | ||
| Engine 277, 279 in model 222 Engine 279 in model 217 |
AR07.52-P-5303MUB | ||
| 38 | Connect electrical connection of oxygen sensors for CATs (2, 3) | ||
| Check | |||
39 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check exhaust system for leaktightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 40 | Install lower rear and center engine compartment paneling | AR61.20-P-1105LF | |
| 41 | Install underbody protection | Engine 157, 276.8/9, 277, 278, 279 in model 222 with code Z07 (Top protection) |
AR61.40-P-1001LFS |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 222 | Engine 276 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1001-01AN | Bolt, front exhaust system to exhaust line | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 278 in model 222 | |
|---|---|---|---|
| BA49.10-P-1001-01AN | Bolt, front exhaust system to exhaust line | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 217 | Engine 276 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1001-02D | Bolt, front exhaust system to exhaust line | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 278 in model 217 | |
|---|---|---|---|
| BA49.10-P-1001-02D | Bolt, front exhaust system to exhaust line | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 222 | Engine 276 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1002-01AN | Bolt to front exhaust system bracket | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 277 in model 222 | Engine 278 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1002-01AN | Bolt to front exhaust system bracket | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 217 | Engine 276 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1002-02D | Bolt to front exhaust system bracket | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 278 in model 217 | Engine 279 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1002-02D | Bolt to front exhaust system bracket | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 222 | Engine 276 in model 222 | ||
|---|---|---|---|---|---|
| BA49.10-P-1003-01AN | Bolt, front exhaust system bracket to transmission | Stage 1 | Nm | 20 | 20 |
| Stage 2 | ∠° | - | - | ||
EXHAUST SYSTEM
| Number | Designation | Engine 277 in model 222 | Engine 278 in model 222 | ||
|---|---|---|---|---|---|
| BA49.10-P-1003-01AN | Bolt, front exhaust system bracket to transmission | Stage 1 | Nm | 10 | 20 |
| Stage 2 | ∠° | 90 | - | ||
EXHAUST SYSTEM
| Number | Designation | Engine 279 in model 222 | ||
|---|---|---|---|---|
| BA49.10-P-1003-01AN | Bolt, front exhaust system bracket to transmission | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 217 | Engine 276 in model 217 | ||
|---|---|---|---|---|---|
| BA49.10-P-1003-02D | Bolt, front exhaust system bracket to transmission | Stage 1 | Nm | 20 | 20 |
| Stage 2 | ∠° | - | - | ||
EXHAUST SYSTEM
| Number | Designation | Engine 278 in model 217 | Engine 279 in model 217 | ||
|---|---|---|---|---|---|
| BA49.10-P-1003-02D | Bolt, front exhaust system bracket to transmission | Stage 1 | Nm | 20 | 10 |
| Stage 2 | ∠° | - | 90 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 222 | Engine 276 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1005-01AN | Bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 277 in model 222 | Engine 278 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1005-01AN | Bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 279 in model 222 | |
|---|---|---|---|
| BA49.10-P-1005-01AN | Bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 217 | Engine 276 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1005-02D | Screw/bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 278 in model 217 | Engine 279 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1005-02D | Screw/bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 222 | Engine 276 in model 222 | ||
|---|---|---|---|---|---|
| BA49.10-P-1006-01AN | Bolt, clamp for front/center/rear exhaust system | M8 | Nm | 35 | 35 |
EXHAUST SYSTEM
| Number | Designation | Engine 277 in model 222 | Engine 278 in model 222 | ||
|---|---|---|---|---|---|
| BA49.10-P-1006-01AN | Bolt, clamp for front/center/rear exhaust system | M8 | Nm | 35 | 35 |
EXHAUST SYSTEM
| Number | Designation | Engine 279 in model 222 | ||
|---|---|---|---|---|
| BA49.10-P-1006-01AN | Bolt, clamp for front/center/rear exhaust system | M8 | Nm | 35 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 217 | Engine 276 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1006-02D | Bolt, clamp for front/center/rear exhaust system | Nm | 35 | 35 |
EXHAUST SYSTEM
| Number | Designation | Engine 278 in model 217 | Engine 279 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1006-02D | Bolt, clamp for front/center/rear exhaust system | Nm | 35 | 35 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 217 | Engine 278 in model 217 | |||
|---|---|---|---|---|---|---|
| BA49.10-P-1011-02D | Bolt, bracket to left front exhaust system | Stage 1 | Nm | 14 | 14 | |
| Stage 2 | Release turns | 3, 6 | 3, 6 | |||
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 217 | Engine 276 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1012-02D | Screw/bolt, front exhaust system bracket to transmission and crankcase | Nm | 38 | 38 |
EXHAUST SYSTEM
| Number | Designation | Engine 278 in model 217 | Engine 279 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1012-02D | Screw/bolt, front exhaust system bracket to transmission and crankcase | Nm | 38 | 38 |
EXHAUST SYSTEM
| Number | Designation | Engine 277 in model 222 | Engine 279 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1021-01AN | Bolt, front exhaust system to exhaust system bracket | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 277 in model 222 | Engine 279 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1022-01AN | Bolt, front exhaust system bracket to transmission and crankcase | Nm | 38 | 38 |
EXHAUST SYSTEM
| Number | Designation | Engine 277 in model 222 | Engine 279 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1023-01AN | Clamp, front exhaust system to turbocharger | Nm | 23 | 23 |
