Remove/install pressure transducer for boost pressure control - AR07.17-P-7002MUB
MODEL 217 with ENGINE 279
MODEL 222 with ENGINE 277, 279
MODEL 463 with ENGINE 279
Shown on engine 277 in model 222

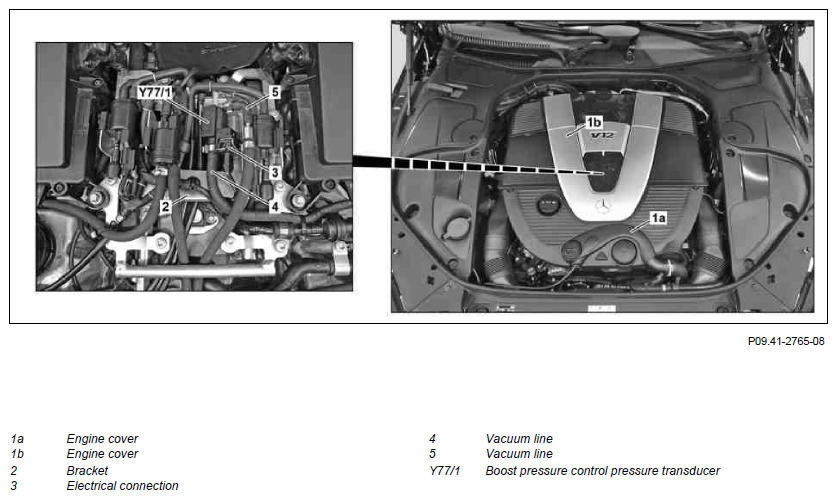

Fig 1: Pressure Transducer For Boost Pressure Control Remove/Install Components - Shown On Engine 277 In Model 222
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Open engine hood | ||
| 2 | Remove engine covers (1a, 1b) | ||
| 3 | Unclip boost pressure control pressure transducer (Y77/1) from bracket (2) | ||
| 4 | Detach electrical connection (3) at boost pressure control pressure transducer (Y77/1) | ||
| 5 | Detach vacuum lines (4) from boost pressure control pressure transducer (Y77/1) | ||
| 6 | Detach vacuum lines (5) from boost pressure control pressure transducer (Y77/1) | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory using the diagnostic system and clear if necessary | ||
| Model 463 with engine 279 | AD00.00-P-2000-04A | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 |
AD00.00-P-2000-04B |
