Remove/install charge air manifold - AR09.41-P-1310MUB
MODEL 217 with ENGINE 279
MODEL 222 with ENGINE 277, 279
MODEL 463 with ENGINE 279
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove fuel distributor with injection valves | AR07.03-P-1451MUB | |

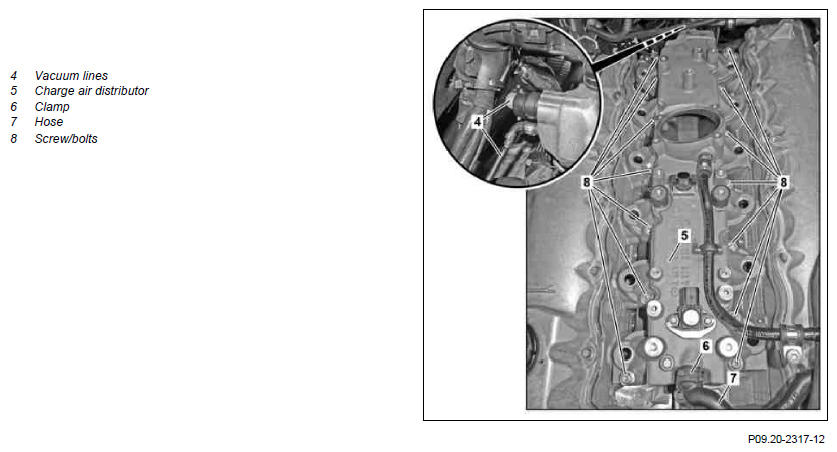

| 2 | Detach vacuum lines (4) on charge air distributor (5) at the rear | ||
| 3 | Release clamp (6) and disconnect hose (7) and place to one side | ||
| 4 | Remove screws/bolts (8) | ||
| *BA09.41-P-1004-01Q | |||
| 5 | Remove charge air distributor (5) upwards | ||
| 6 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 277 | Engine 279 | ||
|---|---|---|---|---|---|
| BA09.41-P-1004-01Q | Screw/bolt, charge air distributor to cylinder head | Stage 1 | Nm | 4 | 4 |
| Stage 2 | ∠° | 180 | 180 | ||
