Charge battery - AR54.10-P-1130LF
MODEL 217, 222
Shown on model 222

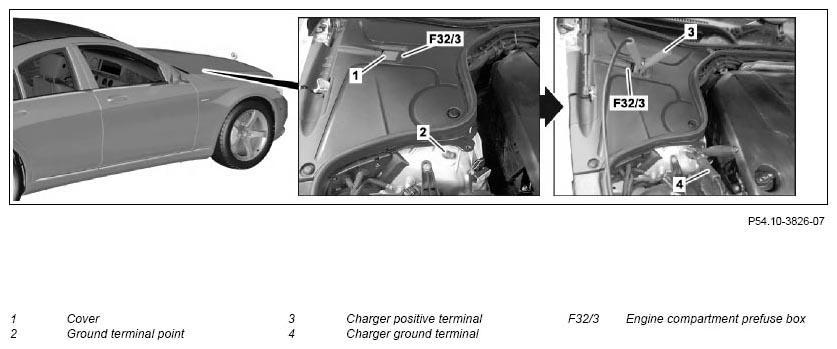

Fig 1: Engine Compartment Pre-Fuse Box, Ground Terminal Point, Cover, Charger Positive And Ground Terminal - Shown On Model 222
| Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte or due to short circuit. Risk of burn injuries due to thermal changes. Risk of poisoning from swallowing battery electrolyte. | Wear protective gloves, protective clothing and safety glasses. In the event of escaping battery electrolyte, battery vapors, battery mist, smoke or heat development, secure the area, leave it and alert the fire department. | AS54.10-Z-0001-04A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes for 12-V lithium-ion battery | AH54.10-P-0004-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Check | |||
| 1 | Check condition of on-board electrical system battery | Not with active transport mode. Model 217 (except 217.37/47) Model 222 (except 222.07/17) |
AR54.10-P-1129LF |
| Remove | |||
| 2 | Open engine hood | When charging an installed on-board electrical system battery. | |
| 3 | Remove cover over coolant expansion reservoir | When charging an installed on-board electrical system battery. | |
| Charging | |||
| 4.1 |
Connect charger to the on-board electrical system battery 000 588 00 81 00 Charger |
When charging a removed on-board electrical system battery. Do not reverse polarity. There is otherwise a risk of short circuit. |
WS54.00-P-0037B |
| 4.2 | Open cover (1) on engine compartment prefuse box (F32/3) and connect charger positive terminal (3) to jump-start connection point at engine compartment prefuse box (F32/3) and charger ground terminal (4) to ground terminal point (2) | When charging an installed on-board electrical system battery. Make sure that the vent hose and the stop plug of the on-board electrical system battery are installed correctly. Otherwise escaping battery vapors may cause damage. Do not reverse polarity. There is otherwise a risk of short circuit. |
|
| 5 | Charge on-board electrical system battery | Charge the on-board electrical system battery using only an approved charger. The on-board electrical system battery is sufficiently charged when the charging current reading is < 25 A. |
|
| 6 | Switch off and disconnect charger | Switch off the charger before disconnecting it. Arcing can otherwise occur. |
|
| 7 | Close cover (1) on engine compartment prefuse box (F32/3) | When an installed on-board electrical system battery has been charged. | |
| Install | |||
| 8 | Install cover over coolant expansion reservoir | When an installed on-board electrical system battery has been charged. | |
| 9 | Close engine hood | When an installed on-board electrical system battery has been charged. | |
| Check | |||
| 10 | Check condition of on-board electrical system battery | Not with active transport mode. Model 217 (except 217.37/47) Model 222 (except 222.07/17) |
AR54.10-P-1129LF |
