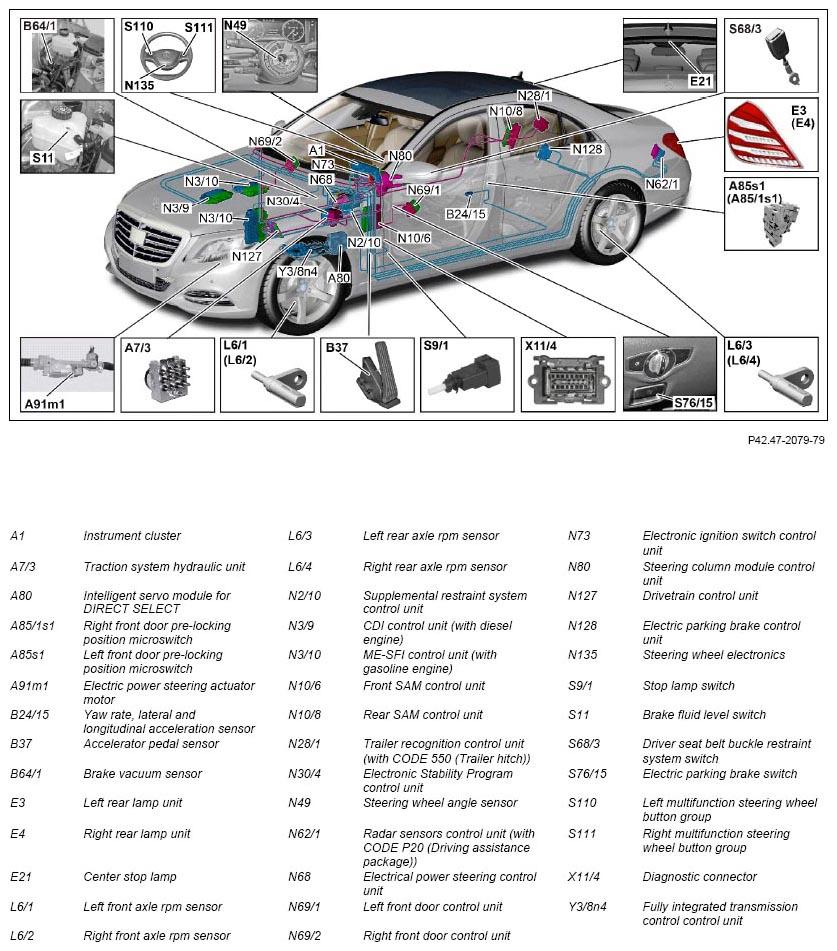

Overview of system components, Adaptive Brake (ABR) - GF42.47-P-9997LF
MODEL 217, 222 (except 222.004/057/104/157/163)
Shown on model 222
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 222 with TRANSMISSION 722.931/971 | GF27.19-P-4020AHD | |
| MODEL 217, 222 with TRANSMISSION 722.9 (except 722.931/932/971) A80 | GF27.19-P-4020AHB | ||
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | MODEL 222 (except 222.057/157) with ENGINE 642.8 N3/9 |
GF07.16-P-6000OGS | |
| Component description for ME-SFI (ME) control unit | MODEL 222 with ENGINE 157.9, 278.9 N3/10 |
GF07.61-P-6000MML | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Component description for trailer recognition control unit | MODEL 222 (except 222.004/057/104/157/163) with CODE 550 (Trailer coupling) N28/1 | GF31.19-P-4050LF | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119LF | |
| Component description for radar sensors control unit | MODEL 217, 222 (except 222.004/057/104/157/163) with CODE P20 (Driving Assistance package) N62/1 |
GF30.30-P-3301LF | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LF | |
| Drivetrain control unit, component description | MODEL 222 (except 222.057/157) with ENGINE 642.8 | GF54.21-P-2141OGS | |
| MODEL 217 with ENGINE 157.9, 278.9, 279 MODEL 222 (except 222.163) with ENGINE 276.8 MODEL 222 with ENGINE 157.9, 277, 278.9, 279 N127 |
GF54.21-P-2141LF | ||
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005LF | |
| Component description for fully integrated transmission control unit | MODEL 217, 222 with TRANSMISSION 722.9 (except 722.931/932/971) Y38n4 |
GF27.60-P-5165AHB | |
| Table of contents for function description, adaptive brake (ABR) | GF42.47-P-0999LF |
