Remove/install master brake cylinder - AR42.10-P-0300LF
MODEL 217, 222
MODIFICATION NOTES
| 07.08.2014 | Retaining screw, brake line to hydraulic unit | MODEL 217 except AMG | BA42.10-P-1004-04N |
| 07.08.2014 | Retaining screw, brake line to hydraulic unit | MODEL 217 AMG | BA42.10-P-1004-04N |

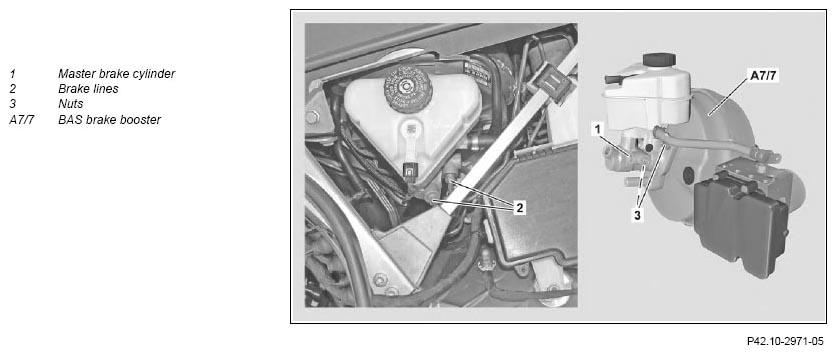

Shown on MODEL 222.057/157
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on externally invisible brake fluid loss | AH42.10-P-9406-02V | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||
| 1 | Eliminate vacuum in BAS brake booster (A77) | ||
| 2 | Remove hydraulic fluid reservoir for brake fluid | AR42.10-P-0301LF | |
| Clean | |||
| 3 | Clean master brake cylinder (1) in area of brake line (2) connections | Before opening the hydraulic system the area around the separation point should be cleaned thoroughly. Otherwise minute particles of dirt in the hydraulic components can result in malfunctions and total failure of the hydraulic system. Assembly cleaner |
*BR00.45-Z-1028-04A |
| 4 | Label brake lines (2) according to connections | ||
| 5 | Detach brake lines (2) from master brake cylinder (1) | Seal connection fittings at master brake cylinder (1). Foreign objects can otherwise enter the master brake cylinder (1) and cause damage. |
|
| *BA42.10-P-1003-04N | |||
| Figure | |||
| 6 | Seal connection fittings at master brake cylinder (1) | Figure | |
| 7 | Detach brake lines (2) on hydraulic unit and turn brake lines (2) to one side | *BA42.10-P-1004-04N | |
| 8 | Unscrew nuts (3) | *BA42.10-P-1001-05K | |
| 9 | Remove master brake cylinder (1) from BAS brake booster (A7/7) | Do not tilt the master brake cylinder (1); pull it forward and in a straight line out of the BAS brake booster (A7/7). Otherwise the push rod will be pressed out of its axial position. Collect brake fluid which runs out with an absorbent rag. Otherwise damage can occur to the vehicle paint. |
|
| 10 | Install in the reverse order | ||
| 11 | Bleed brake system | AR42.10-P-0010LF | |
| Check | |||
| 12 | Check brake system for leaks | AR42.10-P-0100-01V | |
| 13 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
MASTER BRAKE CYLINDER
| Number | Designation | MODEL 217 | MODEL 222 | |
|---|---|---|---|---|
| BA42.10-P-1001-05K | Nut, master brake cylinder to brake booster | Nm | 25 | 25 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | MODEL 217 except AMG | MODEL 217 AMG | ||
|---|---|---|---|---|---|
| BA42.10-P-1003-04N | Retaining screw, brake line to master brake cylinder | Ø 4.75 | Nm | 18 | 18 |
| Ø 6 | Nm | 16 | 16 | ||
| Ø 8 | Nm | 24 | 24 | ||
BRAKE LINES, BRAKE HOSES
| Number | Designation | MODEL 222 (except 222.077/177/178/179) | MODEL 222.077/177/178/179 | ||
|---|---|---|---|---|---|
| BA42.10-P-1003-04N | Retaining screw, brake line to master brake cylinder | Ø 4.75 | Nm | 18 | 18 |
| Ø 6 | Nm | 18 | 18 | ||
| Ø 8 | Nm | 24 | 24 | ||
BRAKE LINES, BRAKE HOSES
| Number | Designation | MODEL 217 except AMG | MODEL 217 AMG | ||
|---|---|---|---|---|---|
| BA42.10-P-1004-04N | Retaining screw, brake line to hydraulic unit | Ø 4.75 | Nm | 16 | 16 |
| Ø 6 | Nm | 16 | 16 | ||
| Ø 8 | Nm | - | - | ||
BRAKE LINES, BRAKE HOSES
| Number | Designation | MODEL 222 (except 222.077/177/178/179) | MODEL 222.077/177/178/179 | ||
|---|---|---|---|---|---|
| BA42.10-P-1004-04N | Retaining screw, brake line to hydraulic unit | Ø 4.75 | Nm | 18 | 18 |
| Ø 6 | Nm | 18 | 18 | ||
| Ø 8 | Nm | 24 | 24 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
