Remove/install electronic stability program (ESP) control unit - AR42.45-P-0820LF

MODEL 217, 222

Shown on model 222

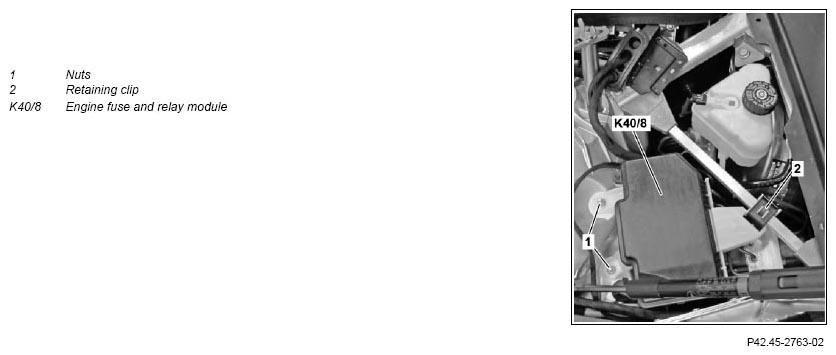

Fig 1: Electronic Stability Program Control Unit Remove/Install Components - Shown On Model 222 (1 Of 2)
G11132565Courtesy of MERCEDES-BENZ USA

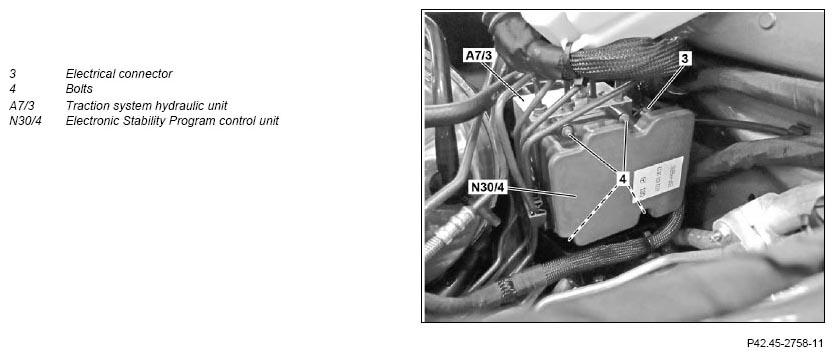

Fig 2: Electronic Stability Program Control Unit Remove/Install Components - Shown On Model 222 (2 Of 2)
G11132566NOTESREMOVINGINSTALLINGCLEANNOTESNOTESNOTESSPECIAL TOOLINSTALLATION IMPORTANTTORQUE SPECIFICATIONCLEANREFER TO SELF-DIAGNOSTIC SYSTEMSCourtesy of MERCEDES-BENZ USA
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and remove transmitter key
2 Remove appropriate cover on traction system hydraulic unit (A7/3)
3 Unscrew nuts (1) and detach retaining clip (2) from strut on left front wheel well
4 Unclip electrical line from engine fuse and relay module (K40/8) and place engine fuse and relay module (K40/8) to one side
CLEAN Clean
5 Clean area around electrical connector (3) and Electronic Stability Program control unit (N30/4) NOTES
Before opening the brake system the area around the separation point should be cleaned thoroughly. Only use clean, lint free rags and cleaner free of mineral oil. Do not use any compressed-air for cleaning when the brake system is open.
Even the smallest particles of dirt, introduced into the hydraulic components, can lead to malfunctions and a total failure of the brake system.
Assembly cleaner
*BR00.45-Z-1028-04A
6 Disconnect electrical connector (3) from Electronic Stability Program control unit (N30/4) NOTES
The work instructions for disconnecting the electrical connector (3) must be followed. Otherwise damage can be caused to the locking mechanism.
NOTES
Do not touch, deform or damage contacts of electrical connection (3) and of jack on Electronic Stability Program control unit (N30/4). Do not allow any foreign objects, dirt or fluids to enter the jack or the electrical connection (3).
The Electronic Stability Program control unit (N30/4) can otherwise be damaged and malfunction.
AR42.45-P-0820-02EW
    SPECIAL TOOL Unlocking tool Figure
7 Unscrew bolts (4) and remove Electronic Stability Program control unit (N30/4) INSTALLATION IMPORTANT Replace screws/bolts (4).
TORQUE SPECIFICATION Screw/bolt, ESP control unit® to traction system hydraulic unit
*BA42.45-P-1003-01O
CLEAN Clean
8 Clean sealing surface on traction system hydraulic unit (A73) Assembly cleaner *BR00.45-Z-1028-04A
9 Install in the reverse order
10 Conduct initial startup of Electronic Stability Program control unit (N30/4) When replacing Electronic Stability Program control unit (N304)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
ELECTRONIC STABILITY PROGRAM (ESP®)

Number Designation MODEL 217 MODEL 222
BA42.45-P-1003-01O Screw/bolt, ESP control unit® to traction system hydraulic unit Nm 3 3
Fig 3: Identifying Unlocking Tool (000 589 20 63 00)
G09976595Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
