Remove/install panoramic roof wind deflector - AR77.21-P-0100LF
MODEL 205 with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 222 with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 253 with CODE 413 (Automatic panoramic sliding sunroof)

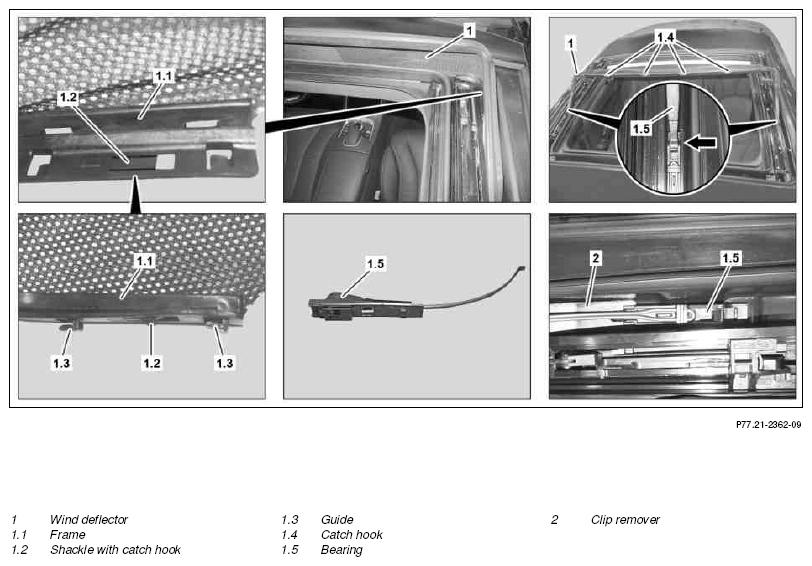

Shown on model 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Completely open panorama sliding roof | ||
| 2 | For this purpose lift left and right shackle with catch hook (1.2) on frame (1.1) with suitable screwdriver and push frame (1.1) toward rear until guides (1.3) are moved out of the mounts on the panoramic sliding roof frame | ||
| 3 | Unclip frame (1.1) on catch hooks (1.4) from panoramic sliding roof frame | Carefully clip in frame (1.1). Otherwise the catch hooks (1.4) can break. |
|
| Fig 3 | |||
| 4 | Fold up wind deflector (1) | ||
| 5 | Unclip wind deflector (1) from left and right wind bearing (1.5) (arrow C) and remove | ||
| 6 | Raise left and right wind bearing (1.5) in front area with clip remover (2), push toward front and remove | Fig 2 | |
| 7 | Install in the reverse order | ||
| 8 | Synchronize panoramic sliding roof with diagnostic system and perform teach-in run for automatic reversing function | Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
|
| Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 413 (Automatic panoramic sliding sunroof) |
AD00.00-P-2000-04B |
