Remove/install front panoramic roof roller sun blind - AR77.21-P-0200LF
MODEL 222
with CODE 398 (Panoramic roof with MAGIC SKY CONTROL)
MODEL 222
with CODE 413 (Automatic panoramic sliding sunroof)

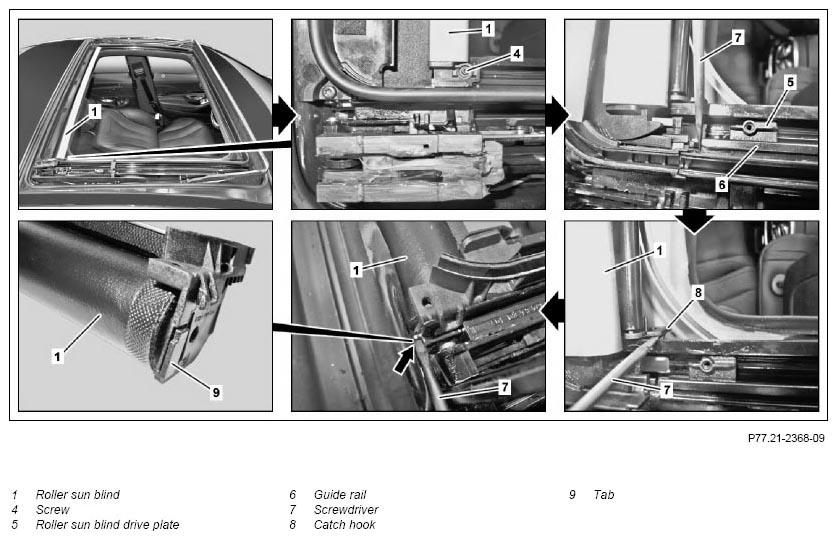

Shown on right side of roller sun blind (1)
Fig 2: Front Panoramic Roof Roller Sun Blind Remove/Install Components - Shown On Right Side Of Roller Sun Blind (1)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove front glass panel from panoramic roof | AR77.21-P-0500NKA | |

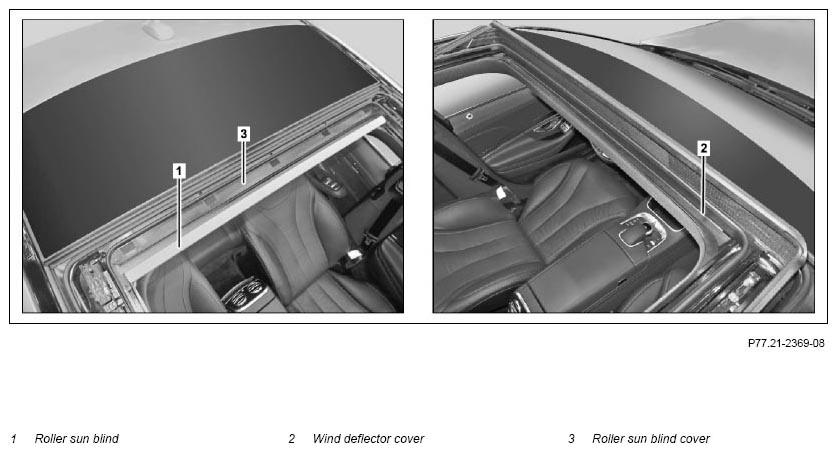

| 2 | Remove wind deflector cover (2) | ||
| 3 | Remove roller sun blind cover (3) | ||
| 4 | Unscrew bolt (4) from left and right roller sun blind drive plate (5) | ||
| 5 | Push left and right guide rail (6) with screwdriver (7) approx. 5 mm toward front | ||
| 6 | Unclip catch hook (8) on both sides of roller sun blind (1) with screwdriver (7) | ||
| 7 | Unclip shackle (9) on both sides of roller sun blind (1) with screwdriver (7) (arrow) and remove roller sun blind (1) upward at top of panoramic roof frame | ||
| 8 | Install in the reverse order |
