Overview of system components of panoramic roof - GF77.21-P-9998LF

MODEL 217.3

MODEL 222

with CODE 398 (Panoramic roof with MAGIC SKY CONTROL)

MODEL 222

with CODE 413 (Panoramic glass roof with top sliding roof)

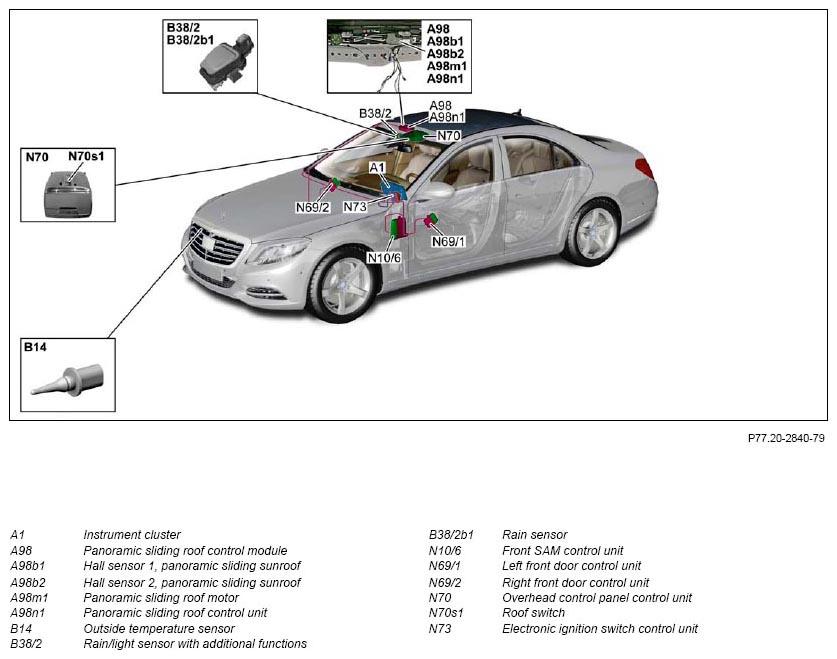

Panoramic sliding roof (model 222 with code (413) Panoramic glass sunroof with top sliding sunroof)

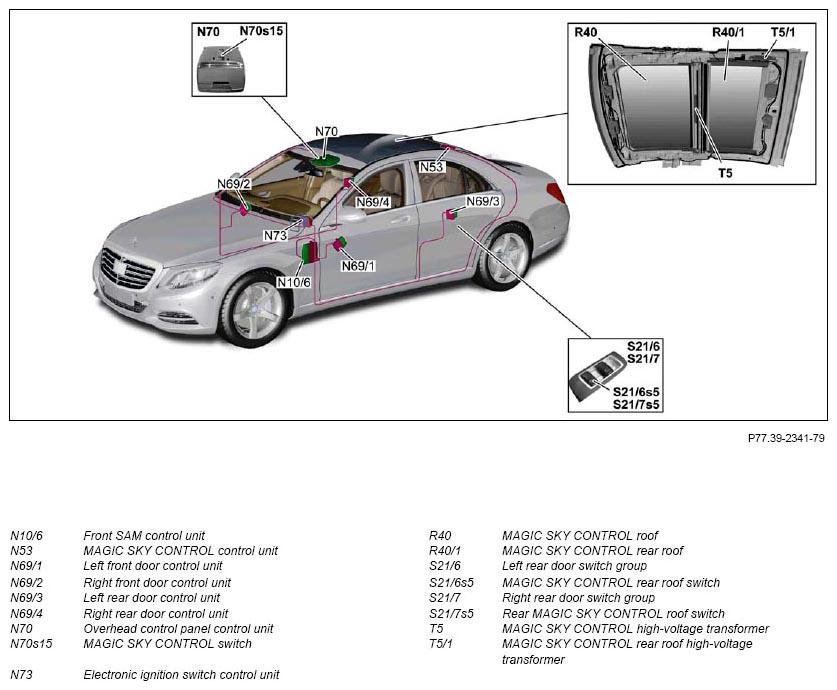

MAGIC SKY CONTROL (model 222 with CODE 398 (Panoramic roof with MAGIC SKY CONTROL))

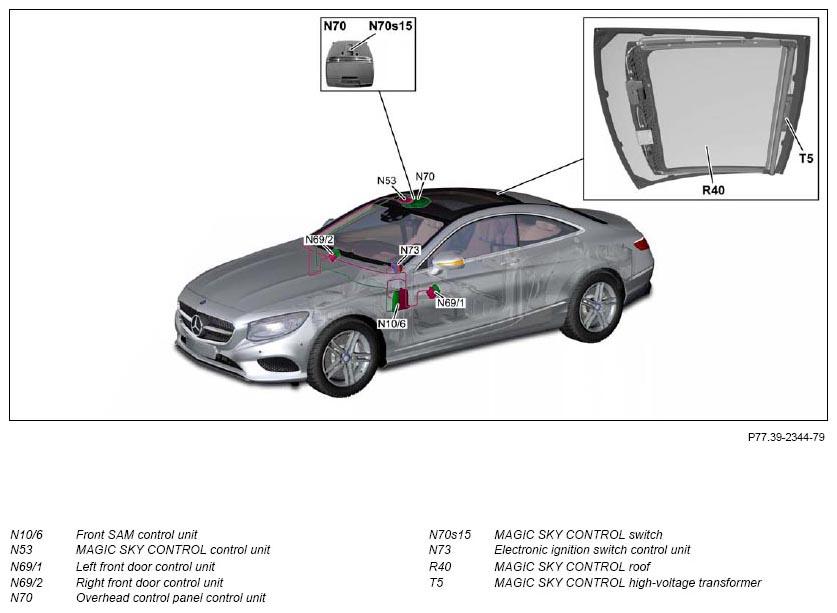

MAGIC SKY CONTROL (model 217 with CODE 398 (Panoramic roof with MAGIC SKY CONTROL))

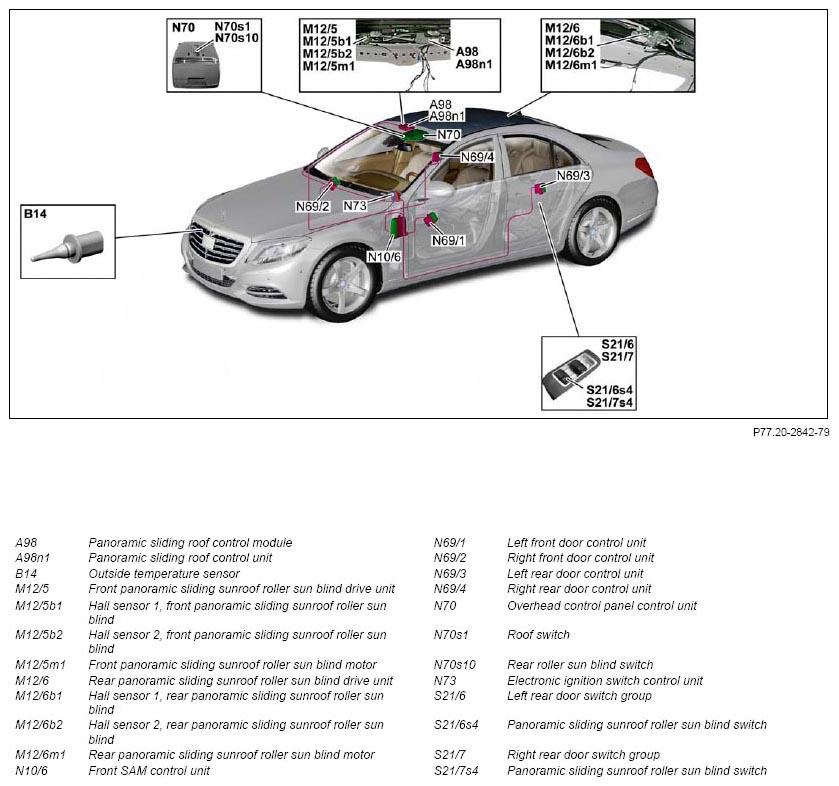

Panoramic roof roller sun blind (model 222 with CODE 398 (Panoramic roof with MAGIC SKY CONTROL) or CODE 413 (panoramic glass sunroof with top sliding roof))

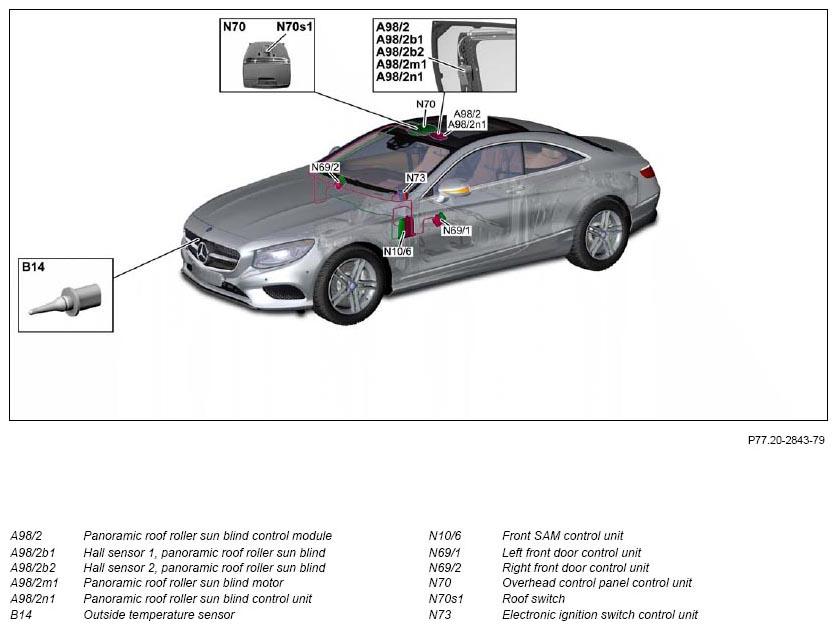

Panoramic roof roller sun blind (model 217)

	Component description for instrument cluster	A1	GF54.30-P-6000LF
	Component description for panoramic sliding roof control module	MODEL 222 with CODE 413 (Panoramic glass roof with top sliding roof) A98, A98n1	GF77.20-P-4106LF
	Panoramic roof roller sun blind control module, component description	MODEL 217.3 A98/2	GF77.20-P-4110LF
	Rain/light sensor with additional functions, component description	B38/2	GF54.21-P-6005LF
	Component description for front SAM control unit	N10/6	GF54.21-P-7010LF
	MAGIC SKY CONTROL, control unit component description	MODEL 217.3 with CODE 398 (Panoramic roof with MAGIC SKY CONTROL) MODEL 222 with CODE 398 (Panoramic roof with MAGIC SKY CONTROL) N53	GF77.39-P-3218LF
	Component description for left front door control unit	N69/1	GF72.29-P-6001LF
	Component description for right front door control unit	N69/2	GF72.29-P-6009LF
	Component description for rear door control unit	MODEL 222 with CODE 398 (Panoramic roof with MAGIC SKY CONTROL) MODEL 222 with CODE 413 (Panoramic glass roof with top sliding roof) N69/3, N69/4	GF72.29-P-6021LF
	Component description for overhead control panel control unit	N70	GF82.20-P-5216LF
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001LF
	Table of contents, function description for panoramic roof		GF77.21-P-0999LF
