Remove/install switch panel - AR54.25-P-1001LF

MODEL 222.0/1/9

with CODE 235 (Active Parking Assist with PARKTRONIC)

MODEL 222.0/1/9

with CODE 238 (Active lane keeping Assist)

MODEL 222.0/1/9

with CODE 266 (Steer Assist)

MODEL 222.0/1/9

with CODE 501 (360° camera)

MODEL 222.0/1/9

with CODE 610 (Night view assist)

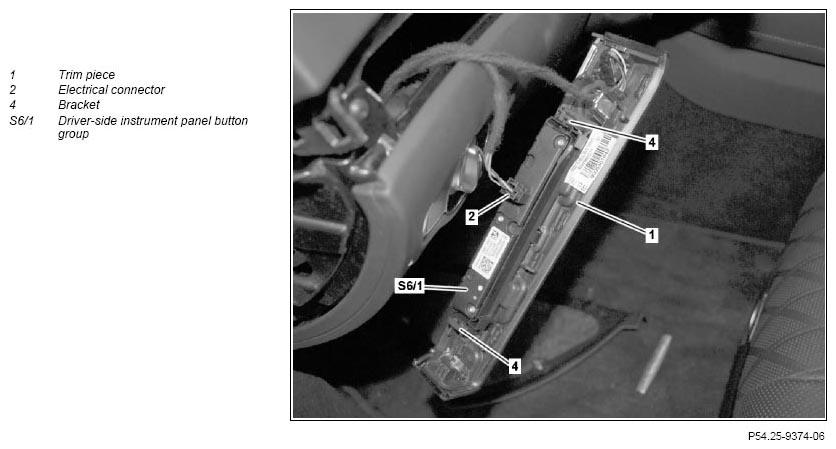

Fig 1: Switch Panel Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

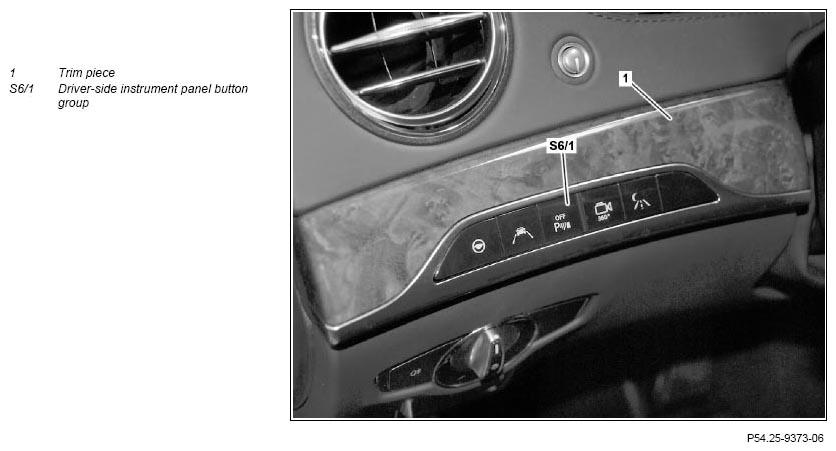

Fig 2: Switch Panel Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge	AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and remove transmitter key
2	Remove left trim piece (1) from steering wheel	AR68.10-P-1180LF
3	Separate electrical connection (2) from driver- side instrument panel button group (S6/1)
4	Release bracket (4) and remove instrument panel button group on driver side (S6/1) from trim piece (1)
5	Install in the reverse order
