Remove/install interior compartment prefuse box - AR54.15-P-1350LF

MODEL 217, 222

Shown on MODEL 222

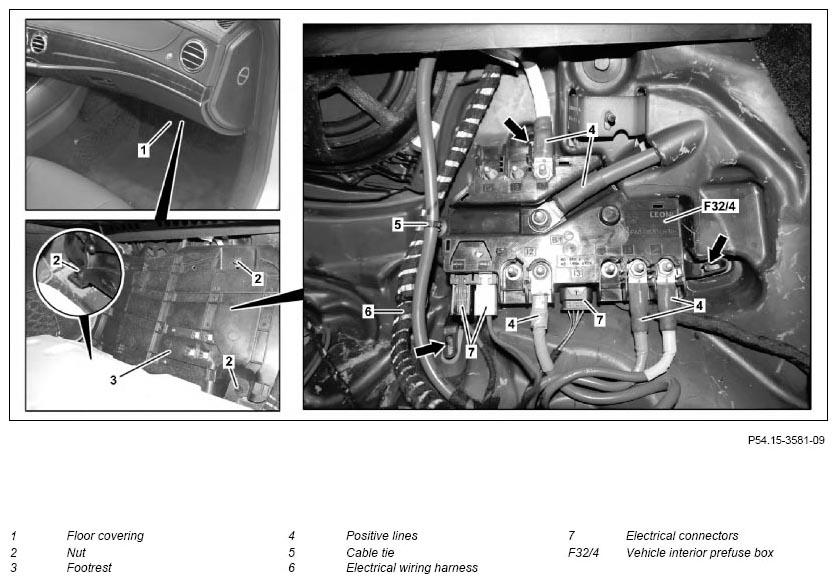

Fig 1: Interior Compartment Pre-Fuse Box Remove/Install Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move front passenger seat all the way to the rear
2	Detach ground line of on-board electrical system battery		AR54.10-P-0003LF
3	Fold back floor covering (1) in passenger footwell toward rear
4	Unscrew nuts (2) and fold back footrest (3) toward rear
5	Detach positive lines (4) from vehicle interior prefuse box (F32/4)	The number of positive lines (4) varies depending on the vehicle equipment. The connections of the positive lines (4) are shape-keyed.
		Nut, charging cable to negative terminal/positive terminal of on-board electrical system battery	*BA54.10-P-1003-01J
6	Open cable ties (5)	Replace cable tie (5).
7	Detach electrical wiring harness (6) from vehicle interior prefuse box (F32/4)
8	Unclip vehicle interior prefuse box (F32/4) from threaded pins (arrows)
9	Disconnect electrical connectors (7) and remove vehicle interior prefuse box (F32/4) from front passenger footwell
10	Install in the reverse order

BATTERY

Number	Designation		MODEL 217	MODEL 222
BA54.10-P-1003-01J	Nut, charging cable to negative terminal/positive terminal of on-board electrical system battery	Nm	6	6
