Remove/install charger feed socket - AR54.10-P-5109LFH

MODEL 222.163

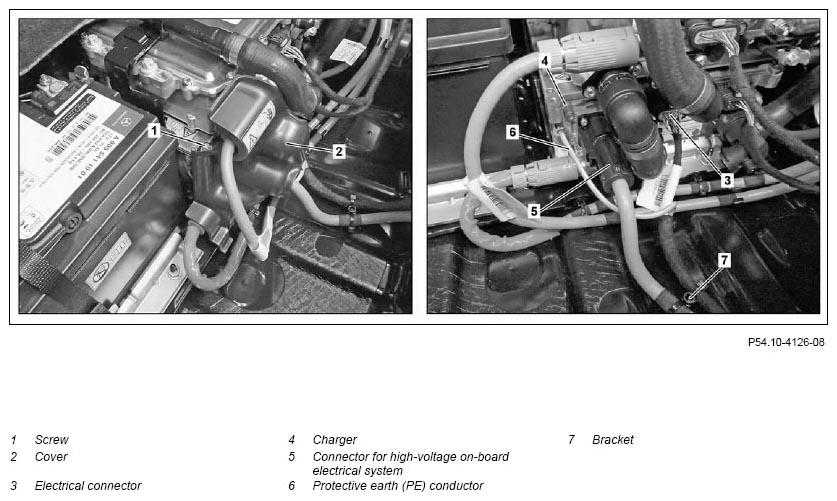

Fig 1: Charger Feed Socket Remove/Install Components (1 Of 3)
G11132700Courtesy of MERCEDES-BENZ USA

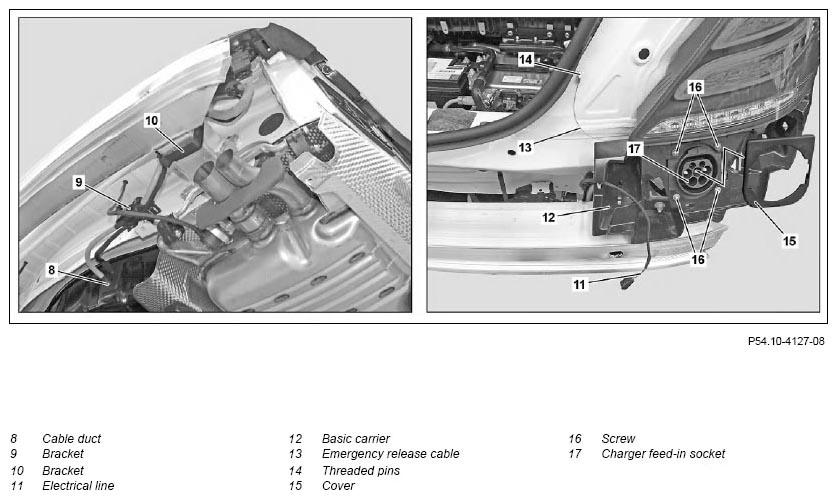

Fig 2: Charger Feed Socket Remove/Install Components (2 Of 3)
G11132701Courtesy of MERCEDES-BENZ USA

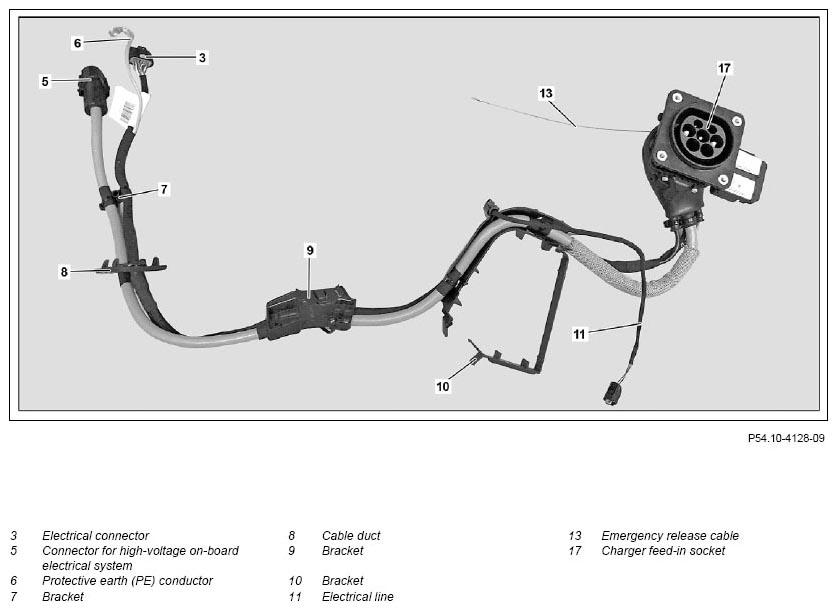

Fig 3: Charger Feed Socket Remove/Install Components (3 Of 3)
G11132702DANGERNOTESNOTESIMPORTANTREMOVINGINSTALLINGINSTALLATION IMPORTANTTORQUE SPECIFICATIONINSTALLATION IMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
IMPORTANT Evaluation of high-voltage components   AH54.00-P-6500-01SXH
REMOVINGINSTALLING Remove/install
1 Remove rear bumper   AR88.20-P-2200LF
2 Perform disable for the high-voltage on-board electrical system INSTALLATION IMPORTANT Perform a protective earth conductor and insulation resistance test before initial startup of the high-voltage on-board electrical system. AR54.10-P-1150LF
3 Remove trunk floor lining   AR68.30-P-4600LF
4 Remove load compartment well   AR68.30-P-4600LF
5 Remove bolt (1) TORQUE SPECIFICATION MODEL 222.163
with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))		 *BA54.10-P-1013-02D
6 Remove cover (2) INSTALLATION IMPORTANT Ensure that cover (2) is seated correctly in the major assembly pan.
7 Release electrical connector (3) and disconnect from charger (4)
8 Release plug for high-voltage on-board electrical system (5) and detach from charger (4)
9 Detach protective earth (PE) conductor (6) from charger (4) TORQUE SPECIFICATION MODEL 222.163
with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))		 *BA54.10-P-1016-02D
10 Unclip bracket (7) on trunk floor
11 Unclip cable duct (8) carefully from rear end plate
12 Release bracket (9) and pull off rear end plate towards rear
13 Open bracket (10) and slide upwards off threaded pin
14 Unclip electrical line (11) from basic carrier (12)
15 Unhook emergency release cable (13) from threaded pin (14)
16 Unclip cover (15) and remove
17 Remove screws/bolts (16) TORQUE SPECIFICATION MODEL 222.163
with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))		 *BA54.10-P-1021-02D
18 Unclip charger feed socket (17) from basic carrier (12) and remove to right with wiring harness
19 Install in the reverse order
20 Perform protective earth conductor and insulation resistance test IMPORTANT Perform a protective earth conductor and insulation resistance test before initial startup of the high-voltage on-board electrical system. AR54.10-P-0019-01LFH
HIGH-VOLTAGE BATTERY

Number Designation MODEL 222 with CODE ME05
BA54.10-P-1013-02D Screw/bolt, cover to charger Nm 8
HIGH-VOLTAGE BATTERY

Number Designation MODEL 222 with CODE ME05
BA54.10-P-1016-02D Screw/bolt, protective earth (PE) conductor to charger Nm 9
HIGH-VOLTAGE BATTERY

Number Designation MODEL 222 with CODE ME05
BA54.10-P-1021-02D Screw/bolt, vehicle socket to rear bumper Nm 5
