Remove/install battery sensor - AR54.10-P-0002LF

MODEL 222 (except 222.07/17/97)

without CODE ME04 (Mild hybrid drive)

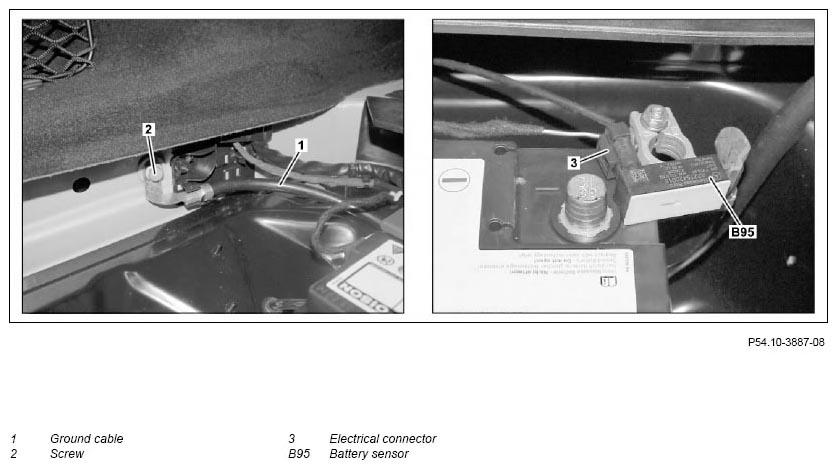

Fig 1: Battery Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove on-board electrical system battery	Place on-board electrical system battery far enough back in the spare wheel well to enable the ground line (1) with battery sensor (B95) to be removed. The ground line (1) and the battery sensor (B95) are one component and cannot be replaced individually.	AR54.10-P-0005LF
2	Unscrew bolt (2) and remove ground line (1) from left rear longitudinal member	Battery ground point	*BA00.19-P-1012-01C
3	Expose ground line (1) up to battery sensor (B95)	MODEL 222.0 (except 222.07), 222.1 (except 222.17), 222.9 (except 222.97) without CODE ME04 (Mild hybrid drive) Replace damaged fasteners.	AR68.30-P-4600LF
4	Disconnect electrical connector (3) from battery sensor (B95)
5	Take out ground line (1) with battery sensor (B95) out of trunk
6	Install in the reverse order
