Remove/install backup camera - AR54.65-P-0030LF
MODEL 222
with CODE 218 (Rear view camera)
MODEL 222
with CODE 501 (360° camera)
MODIFICATION NOTES
| 4.10.15 | Data on commissioning and calibration revised. | Operation step 8, 9 |

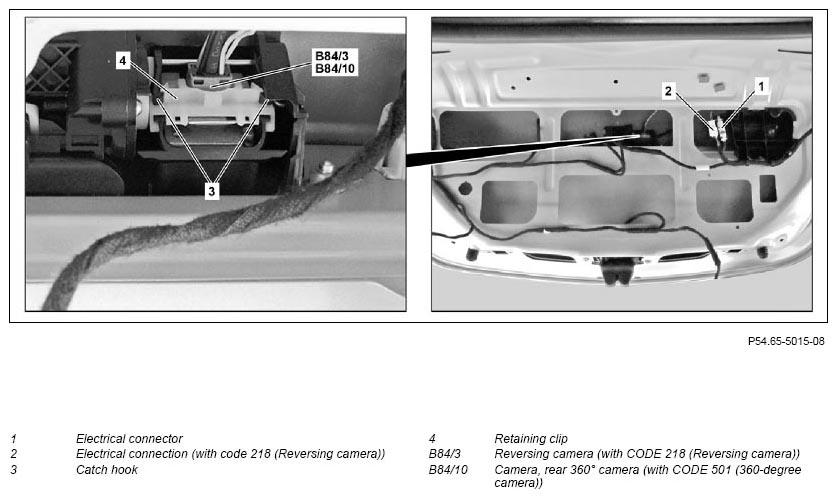

Shown with CODE 218 (Reversing camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove trunk lid cover | AR88.50-P-5000LF | |
| 3 | Unclip electrical connection (1) from holder and disconnect | ||
| 4 | Unclip electrical connector (2) from holder and disconnect | Model 222 with code 218 (Rear view camera) |
|
| 5 | Release catch hooks (3) and pull out retaining clip (4) | ||
| 6 | Pull reversing camera (B84/3) or rear 360° camera (B84/10) inwards | ||
| 7 | Install in the reverse order | ||
| 8 | Commission rear 360° camera (B84/10) or reversing camera (B84/3) using diagnostic system | Model 222 with code 218 (Rear view camera) Model 222 with code 501 (360° camera) If the rear 360° camera (B84/10) or the reversing camera (B84/3) was replaced. |
|
| AD00.00-P-2000-04B | |||
| 9 | Calibrate camera for rear 360° camera (B84/10) using diagnostic system | Model 222 with code 501 (360° camera) |
|
| AD00.00-P-2000-04B |
