Remove/install additional battery - AR54.10-P-0007LFS

MODEL 222

with CODE Z07 (Top protection)

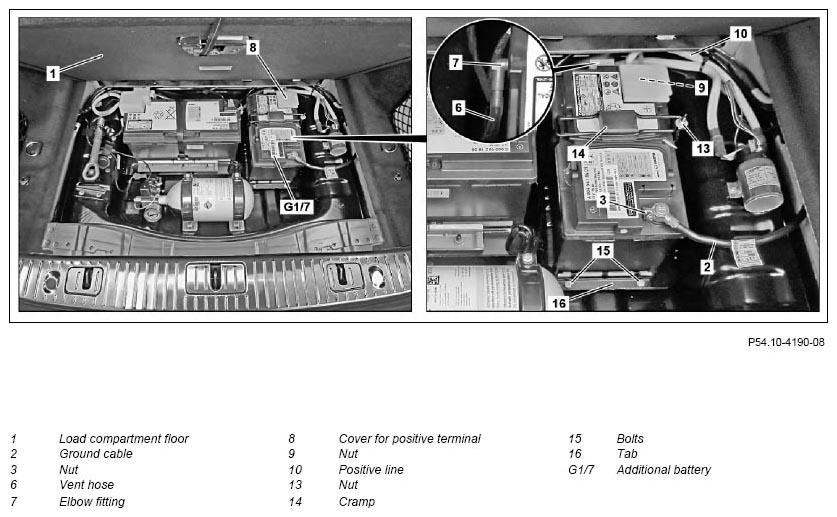

Fig 1: Additional Battery Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes for 12-V lithium-ion battery		AH54.10-P-0004-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Switch off all electrical consumers and take transmitter key out of reception range	All electrical consumers must be switched off. They may otherwise be damaged when the ground line (1) is disconnected/connected.
2	Open load compartment floor (1)
3	Release nut (3) and disconnect ground line (2) from negative terminal on additional battery (G1/7)	Nut, charging cable to negative terminal/positive terminal for additional battery	*BA54.10-P-1009-01J
4	Using a diode test lamp, check the on-board electrical system for voltage between the positive line (10) of the additional battery (G1/7) and a suitable ground point	Cover up the positive line (10). Otherwise a short circuit may occur. Where applicable, the electrical system is to be repaired once the required work has been completed. If the diode test lamp lights up, the on-board electrical system is still active because of a defect in the electrical system. ↓ Detach ground line of on-board electrical system battery	AR54.10-P-0003LF
5	Remove positive terminal cover (8)
6	Release nut (9) and disconnect positive line (10) from positive terminal of additional battery (G1/7)	Nut, charging cable to negative terminal/positive terminal for additional battery	*BA54.10-P-1009-01J
7	Detach vent hose (6) from elbow fitting (7)	Check vent hose (6) is seated and routed correctly. Battery acid vapors emitted will otherwise damage surrounding components.
8	Unscrew nut (13)	Nut, bracket to battery carrier for additional battery	*BA54.10-P-1008-01J
9	Remove cramp (14)
10	Remove bolts (15) and remove shackle (16)	Bolt, shackle to battery carrier for additional battery	*BA54.10-P-1007-01J
11	Remove additional battery (G1/7) from trunk
12	Install in the reverse order

BATTERY

Number	Designation		MODEL 222
BA54.10-P-1007-01J	Bolt, shackle to battery carrier for additional battery	Nm	6

BATTERY

Number	Designation		MODEL 222
BA54.10-P-1008-01J	Nut, bracket to battery carrier for additional battery	Nm	5

BATTERY

Number	Designation		MODEL 222
BA54.10-P-1009-01J	Nut, charging cable to negative terminal/positive terminal for additional battery	Nm	6
