Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006LF
MODEL 217, 222
with CODE 235 (Active Parking Assist with PARKTRONIC)

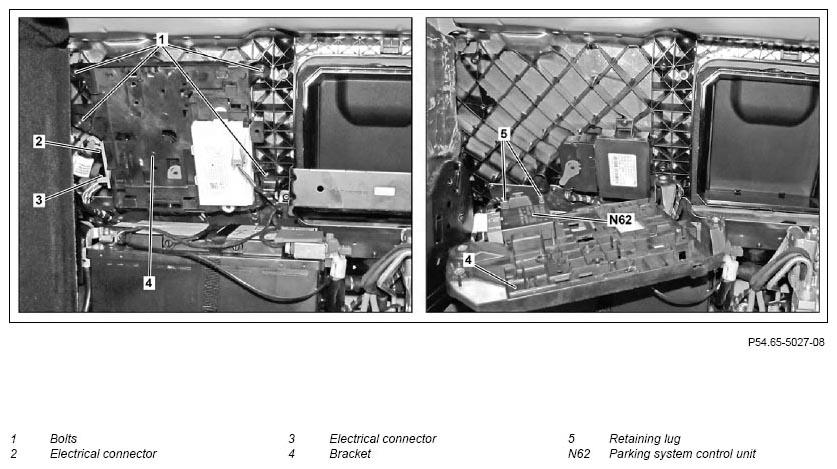

Shown on model 222

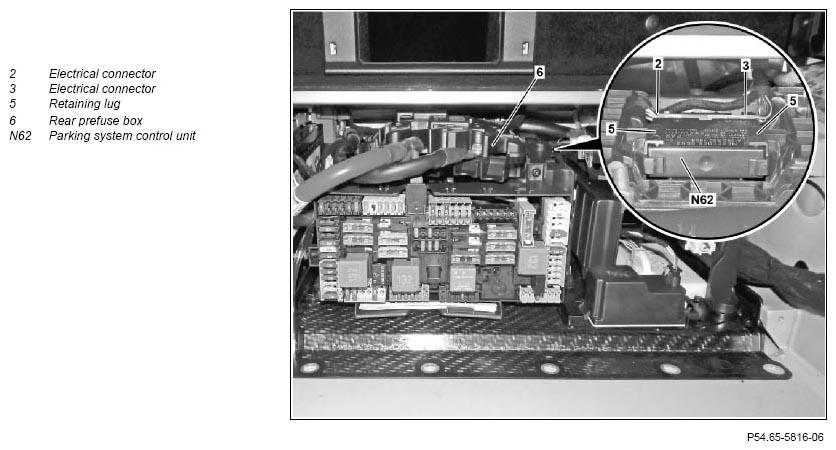

Shown on model 217.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim from luggage compartment rear panel | Model 217.4 with code 235 (Active Parking Assist with PARKTRONIC) |
AR68.30-P-4602LCA |
| Model 217.3 with code 235 (Active Parking Assist with PARKTRONIC) |
AR68.30-P-4600LC | ||
| Model 222.0/1 with code 235 (Active Parking Assist with PARKTRONIC) |
AR68.30-P-4600LF | ||
| 2.1 | Remove screws/bolts (1) | Model 217.3, 222 with code 235 (Active Parking Assist with PARKTRONIC) |
|
| 2.2 | Remove rear prefuse box (6) | Model 217.4 with code 235 (Active Parking Assist with PARKTRONIC) |
AR54.15-P-1340LC |
| 3 | Disconnect electrical connectors (2, 3) | ||
| 4 | Fold bracket (4) backwards | Model 217.3, 222 with code 235 (Active Parking Assist with PARKTRONIC) |
|
| 5 | Unlock retaining lugs (5) and remove parking system control unit (N62) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform initial startup of parking system control unit (N62) using diagnostic system | When replacing the parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 8 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B |
