Remove/install 115V/230V socket - AR54.10-P-1002LF
MODEL 222
with CODE U67 (230 V socket in the rear)
without CODE 224 (First-Class rear compartment)
MODEL 222
with CODE U80 (115 V socket)
without CODE 224 (First-Class rear compartment)
Shown on CODE U67 (230-V socket in the rear) and CODE 301 (Ashtray package/smoker package)
| Risk of death from touching live components with AC voltages over 30 V | Do not touch live parts. Persons who have electronic implants (e.g. cardiac pacemakers) must not perform any work on components conducting AC voltage greater than 30 V. | AS54.00-Z-0001-05A | |
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003LF | |
| 2 | Remove cover (1) on center console | MODEL 222.0/1 with CODE U67 (230 V socket in the rear) without CODE 224 (First-Class rear compartment) MODEL 222.0/1 with CODE U80 (115 V socket) without CODE 224 (First-Class rear compartment) |
AR68.20-P-2350LF |

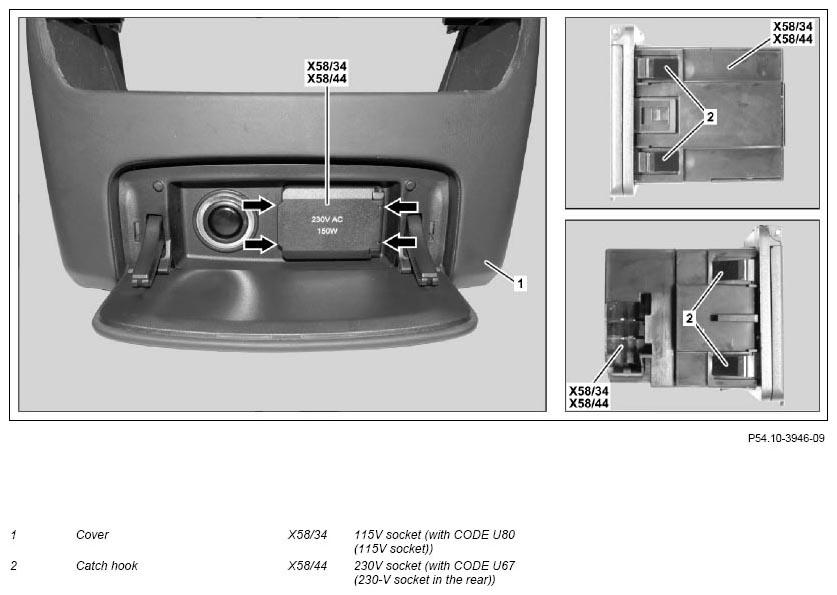

| 3 | Unclip and remove 115V socket (X58/34) or 230V socket (X58/44) at catch hooks (2, arrows) | ||
| 4 | Install in the reverse order |
