Emergency release of charging cable plug at charger feed socket - AR54.10-P-5111LFH

MODEL 222.163

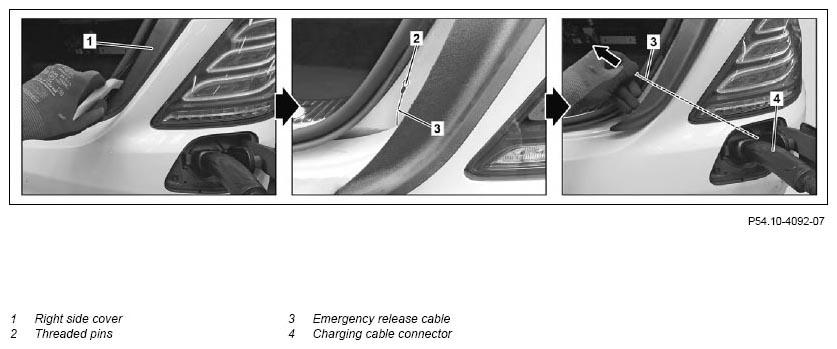

Fig 1: Right Side Cover, Emergency Release Cable, Threaded Pins And Charging Cable Connector

Courtesy of MERCEDES-BENZ USA

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Note on the high-voltage on-board electrical system		AH54.00-P-0010-01A
	Evaluation of high-voltage components		AH54.00-P-6500-01SXH
	Emergency release
1	Unlock vehicle and manually open the trunk lid
2	Carefully pry the right side cover (1) off the threaded pin (2) to the rear	Mounting wedge	Fig 2
3	Remove the emergency release cable (3) from the threaded pin (2)
4	Pull the emergency release cable (3) in the direction of the arrow and unplug the charger cable plug (4) from the charger feed socket	By pulling the emergency release cable (3), the turntable of the mechanical emergency release on the actuator motor of the electrical release is twisted and the charger cable plug (4) is released.
5	Connect emergency release cable (3) to threaded pin (2)
6	Press right side cover (1) onto threaded pin (2)
7	Close charger feed socket flap
8	Close socket flap in the bumper

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
