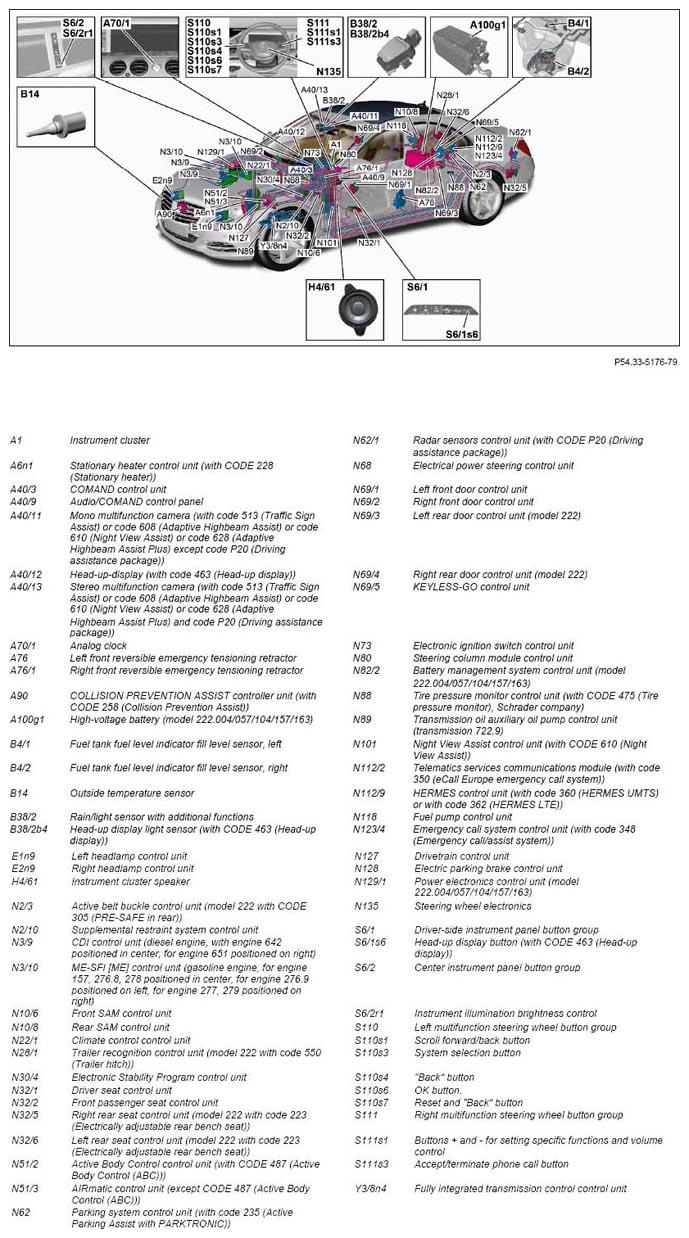

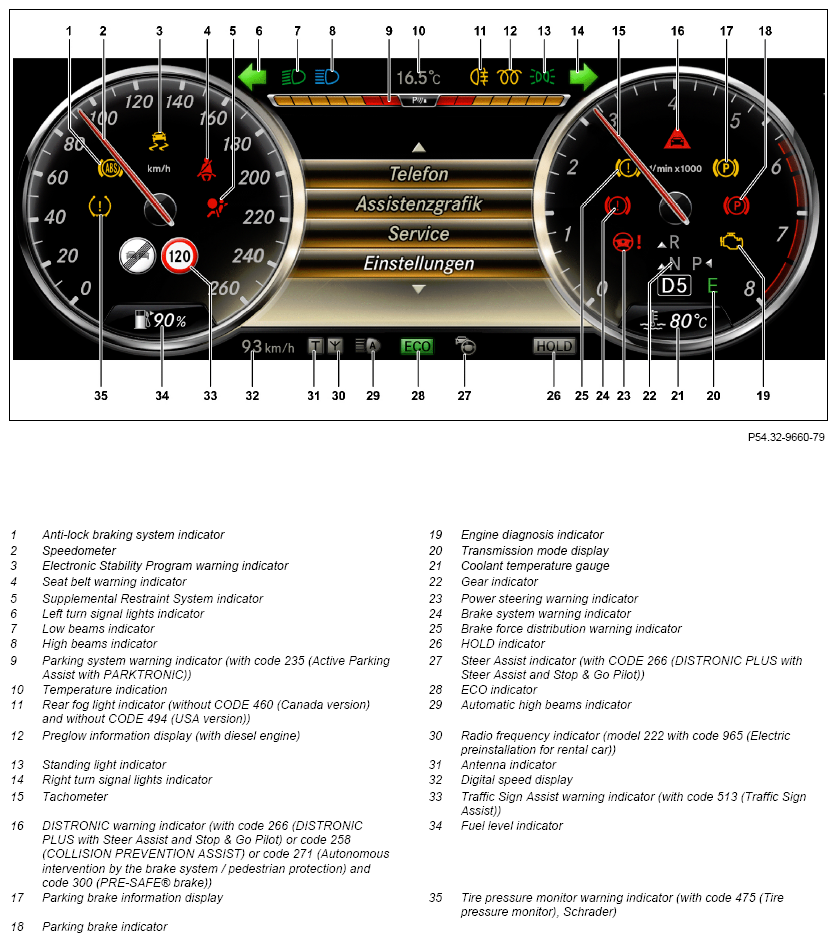

Overview of system components, instrument cluster (IC) component description - GF54.30-P-9996LF
MODEL 217, 222
Shown model 222.0
Model 217.4
The rear control unit (N22/6) is also installed (soft top warning).
Shown on model 222.032 (Economic Commission for Europe (ECE) national version)
Model 222.004/057/104/157/163
An energy display, charge level display, READY indicator and a power display are also available.
Model 217, 222 with engine 157, 279
A transmission oil temperature display and an engine oil temperature display are also available.
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Stationary heater control unit, component description | Model 217, 222 with code 228 (Auxiliary heater) A6n1 |
GF83.70-P-4066LF | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136LF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501LF | |
| Component description for multifunction camera | Model 217, 222 with code 513 (Speed Limit Assist) Model 217, 222 with code 608 (Adaptive Highbeam Assist) Model 217, 222 with code 610 (Night view assist) Model 217, 222 with code 628 (Adaptive Highbeam Assist Plus) Model 217, 222 with code P20 (Driving Assistance package) A40/11, A40/13 |
GF54.21-P-3300LF | |
| Head-up display, component description | Model 217 with code 463 (Head-up display) Model 222 with code 463 (Head-up display) A40/12 |
GF54.30-P-6140LF | |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020LF | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 217, 222 with code 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214LF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005LF | |
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020LF | |
| Active belt buckle control unit, component description | Model 222 with code 305 (Rear PRE-SAFE) N2/3 |
GF91.60-P-4122LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Model 222 with engine 642.8 N3/9 | GF07.16-P-6000OGS | |
| Model 222 with engine 651.9 N3/9 | GF07.16-P-6000OLA | ||
| Component description for ME-SFI (ME) control unit | Model 222 with engine 276.8 N3/10 | GF07.61-P-6000MMT | |
| Model 222 with engine 276.9 N3/10 | GF07.61-P-6000MMK | ||
| Model 217, 222 with engine 157.9, 278.9 N3/10 | GF07.61-P-6000MML | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Rear control unit, component description | Model 217 N22/6 |
GF54.21-P-4134LF | |
| Component description for trailer recognition control unit | Model 222 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.004/057/104/157/163) N30/4 | GF42.45-P-5119LF | |
| Model 222.004/057/104/157/163 N30/4 | GF42.45-P-5119LFH | ||
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231LF | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241LF | |
| Right rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) N32/5 |
GF91.29-P-5290LF | |
| Left rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) N32/6 |
GF91.29-P-5285LF | |
| ABC control unit, component description | Model 217, 222 with code 487 (Active Body Control (ABC)) N51/2 |
GF32.50-P-4501LF | |
| AIRmatic control unit, component description | Model 217, 222 except code 487 (Active Body Control (ABC)) N51/3 |
GF32.22-P-5109LF | |
| Parking system control unit component description | Model 217 Model 222 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5002LF | |
| Component description for radar sensors control unit | Model 217, 222 with code P20 (Driving Assistance package) N62/1 |
GF30.30-P-3301LF | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N693, N694 |
GF72.29-P-6021LF | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LF | |
| Component description for battery management system control unit | Model 222.004/104 with engine 651.9 Model 222.057/157 with engine 276 Model 222.163 with engine 276 N82/2 |
GF54.10-P-3012LFH | |
| Component description for tire pressure monitor control unit | Model 217, 222 with code 475 (Tire pressure monitoring system) Schrader N88 |
GF40.15-P-5124LF | |
| Component description for transmission oil auxiliary oil pump control unit | Model 217, 222 with transmission 722.9 (except 722.931/932/971) N89 | GF27.19-P-4031AHB | |
| Model 217, 222 with transmission 722.931/971 N89 | GF27.19-P-4031AHD | ||
| Model 217, 222 with transmission 722.932 N89 | GF27.19-P-4031AHY | ||
| Night View Assist control unit, component description | Model 217, 222 with code 610 (Night view assist) N101 |
GF54.30-P-6200LF | |
| Telematics services communications module, component description | Model 217, 222 up to model year 2017 with code 350 (Ecall emergency call system, Europe) N112/2 |
GF82.85-P-0220LF | |
| HERMES control unit, component description | Model 217, 222 with code 360 (HERMES UMTS) Model 217, 222 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221LF | |
| Component description for fuel pump control unit | Model 217 with engine 157.9, 278.9 Model 222 with engine 157.9, 276.8/9, 278.9 N118 |
GF47.40-P-2001MMK | |
| Model 217 with engine 279 Model 222 with engine 277, 279 N118 |
GF47.40-P-2001MUB | ||
| Model 222 with engine 642.8, 651.9 N118 | GF47.40-P-2001OGS | ||
| Component description for emergency call system control unit | Model 217, 222 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212LFU | |
| Drivetrain control unit, component description | Model 217 with engine 157.9, 278.9, 279 Model 222 (except 222.163) with engine 276.8 Model 222 with engine 157.9, 277, 278.9, 279 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 Model 222.163 with engine 276.8 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 N127 | GF54.21-P-2141OGS | ||
| Model 222 with engine 651.9 N127 | GF54.21-P-2141OLA | ||
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005LF | |
| Component description for power electronics control unit | Model 222.004/104 with engine 651.9 Model 222.057/157 with engine 276 Model 222.163 with engine 276 N129/1 |
GF08.20-P-1001LFH | |
| Component description for fully integrated transmission control unit | Model 217, 222 with transmission 722.9 (except 722.931/932/971) Y38n4 | GF27.60-P-5165AHB | |
| Model 217, 222 with transmission 722.931/971 Y38n4 | GF27.60-P-5165AHD | ||
| Model 217, 222 with transmission 722.932 Y38n4 | GF27.60-P-5165AHY | ||
| Model 222 with transmission 724.2 Y38n4 | GF27.60-P-5165LFH | ||
| Model 217, 222 with transmission 725.0 Y38n4 | GF27.60-P-5165AND | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997LF |
