Overview of system components of parking assistance systems - GF54.00-P-9997LF
MODEL 217
MODEL 222
with CODE 218 (Rear view camera)
MODEL 222
with CODE 235 (Active Parking Assist with PARKTRONIC)
MODEL 222
with CODE 501 (360° camera)

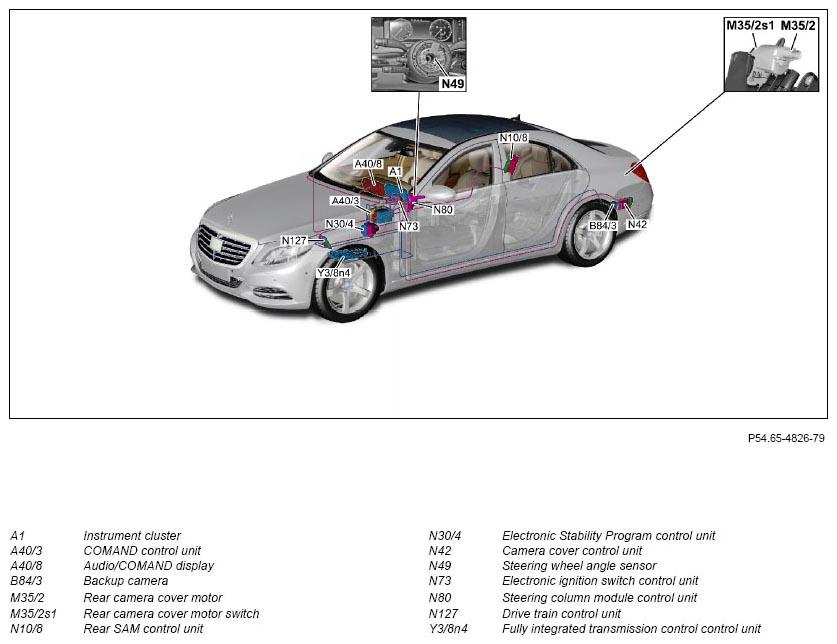

Reversing camera (RFK) (model 217, model 222 with CODE 218 (Reversing camera)), shown on model 222.0

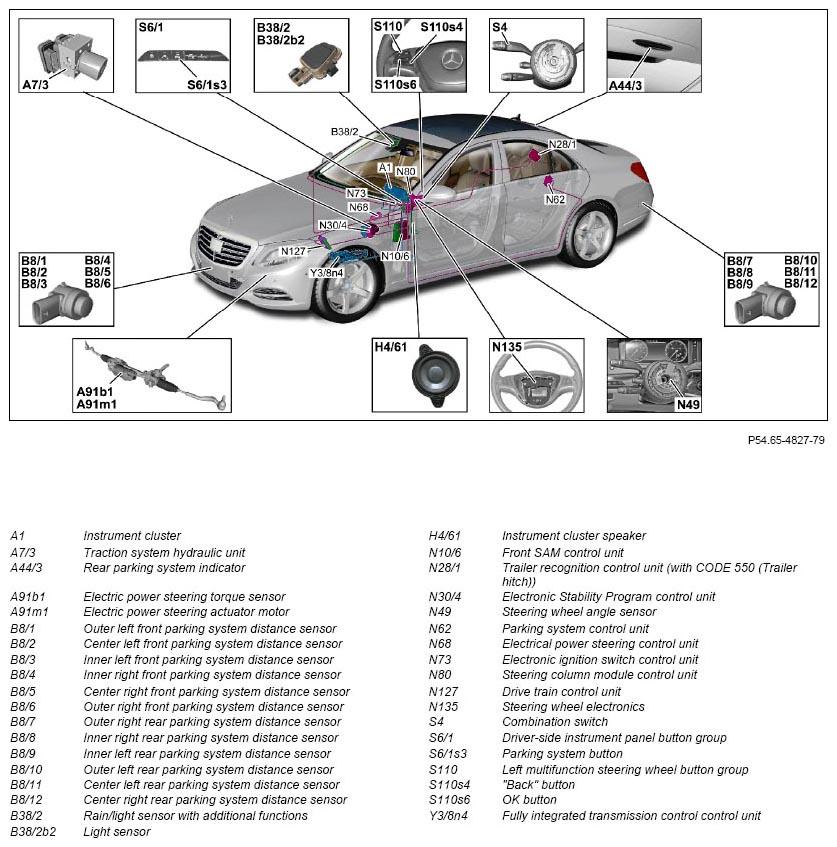

Parking system (model 217, model 222 with CODE 235 (Active Parking Assist)), shown on model 222.0

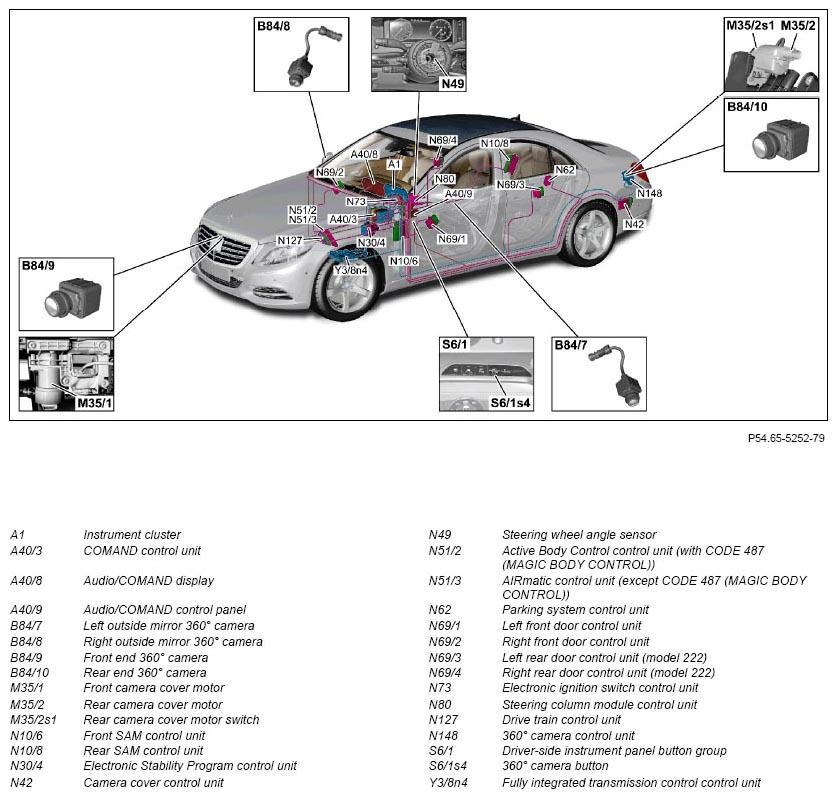

360° camera (with CODE 501 (360 degree camera)); shown on model 222.0
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136LF | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150LF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501LF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005LF | |
| Reversing camera component description | Model 217, 222 with code 218 (Rear view camera) B84/3 | GF54.65-P-5040LF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Component description for trailer recognition control unit | Model 222 with code 235 (Active Parking Assist with PARKTRONIC) with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.004/057/104/157/163) with code 218 (Rear view camera) Model 217, 222 (except 222.004/057/104/157/163) with code 235 (Active Parking Assist with PARKTRONIC) Model 217, 222 (except 222.004/057/104/157/163) with code 501 (360° camera) N30/4 |
GF42.45-P-5119LF | |
| Model 222.004/104 with code 218 (Rear view camera) Model 222.004/104 with code 235 (Active Parking Assist with PARKTRONIC) Model 222.004/104 with code 501 (360° camera) Model 222.057/157 with code 218 (Rear view camera) Model 222.057/157 with code 235 (Active Parking Assist with PARKTRONIC) Model 222.057/157 with code 501 (360° camera) Model 222.163 with code 218 (Rear view camera) Model 222.163 with code 235 (Active Parking Assist with PARKTRONIC) Model 222.163 with code 501 (360° camera) N30/4 |
GF42.45-P-5119LFH | ||
| Camera cover control unit, component description | Model 217 Model 222 with code 218 (Rear view camera) Model 222 with code 501 (360° camera) N42 |
GF54.65-P-5005LF | |
| ABC control unit, component description | Model 217, 222 with code 487 (Active Body Control (ABC)) with code 501 (360° camera) N51/2 |
GF32.50-P-4501LF | |
| AIRmatic control unit, component description | N51/3 | GF32.22-P-5109LF | |
| Parking system control unit component description | Model 217, 222 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5002LF | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 with code 218 (Rear view camera) Model 222 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 with code 501 (360° camera) N693, N694 |
GF72.29-P-6021LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LF | |
| Drivetrain control unit, component description | Model 217 with engine 157.9, 278.9, 279 with code 218 (Rear view camera) Model 217 with engine 157.9, 278.9, 279 with code 235 (Active Parking Assist with PARKTRONIC) Model 217 with engine 157.9, 278.9, 279 with code 501 (360° camera) Model 222 (except 222.163) with engine 276.8 with code 218 (Rear view camera) Model 222 (except 222.163) with engine 276.8 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 (except 222.163) with engine 276.8 with code 501 (360° camera) Model 222 with engine 157.9, 277, 278.9, 279 with code 218 (Rear view camera) Model 222 with engine 157.9, 277, 278.9, 279 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 with engine 157.9, 277, 278.9, 279 with code 501 (360° camera) N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 with code 218 (Rear view camera) Model 222 with engine 276.9 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 with engine 276.9 with code 501 (360° camera) Model 222.163 with engine 276.8 with code 218 (Rear view camera) Model 222.163 with engine 276.8 with code 235 (Active Parking Assist with PARKTRONIC) Model 222.163 with engine 276.8 with code 501 (360° camera) N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 with code 218 (Rear view camera) Model 222 with engine 642.8 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 with engine 642.8 with code 501 (360° camera) N127 |
GF54.21-P-2141OGS | ||
| Model 222 with engine 651.9 with code 218 (Rear view camera) Model 222 with engine 651.9 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 with engine 651.9 with code 501 (360° camera) N127 |
GF54.21-P-2141OLA | ||
| Component description for 360 degree viewing system control unit | Model 217, 222 with code 501 (360° camera) N148 |
GF54.65-P-5003LF | |
| Component description for fully integrated transmission control unit | Model 222 with transmission 724.2 with code 218 (Rear view camera) Model 222 with transmission 724.2 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 with transmission 724.2 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165LFH | |
| Model 217 with transmission 722.9 (except 722.931/932/971) Model 222 with transmission 722.9 (except 722.931/932/971) with code 218 (Rear view camera) Model 222 with transmission 722.9 (except 722.931/932/971) with code 235 (Active Parking Assist with PARKTRONIC) Model 222 with transmission 722.9 (except 722.931/932/971) with code 501 (360° camera) Y38n4 |
GF27.60-P-5165AHB | ||
| Model 222 with transmission 722.931/971 with code 218 (Rear view camera) Model 222 with transmission 722.931/971 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 with transmission 722.931/971 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165AHD | ||
| Model 217, 222 with transmission 722.932 with code 218 (Rear view camera) Model 217, 222 with transmission 722.932 with code 235 (Active Parking Assist with PARKTRONIC) Model 217, 222 with transmission 722.932 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165AHY | ||
| Table of contents for function description of parking assistance systems | GF54.00-P-0997LF |
