Overview of system components for driver assistance systems - GF54.00-P-9998LF
MODEL 217, 222

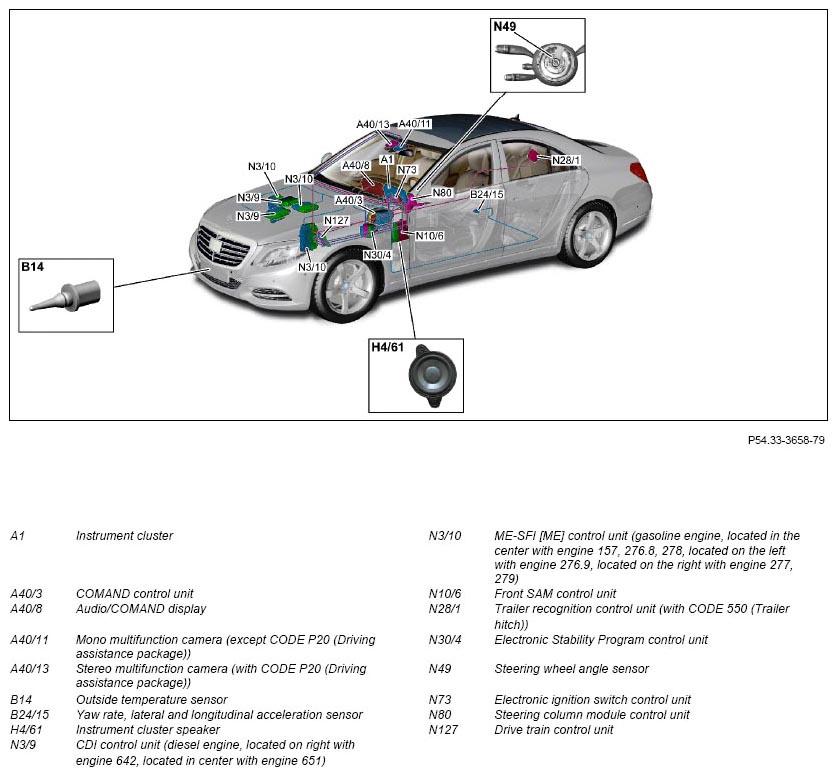

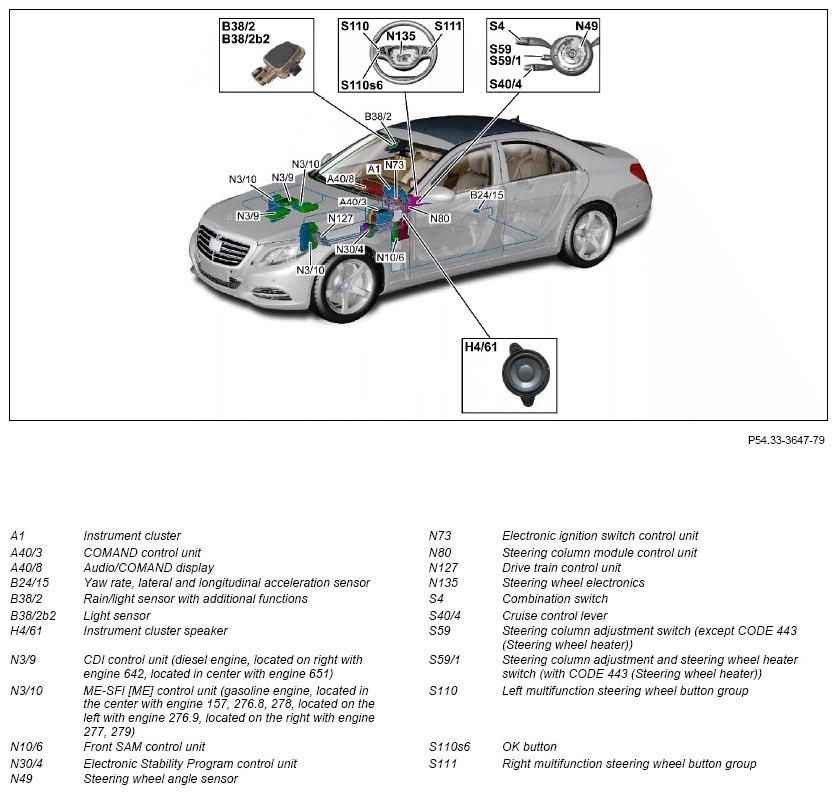

Attention assistance system; shown on model 222.0

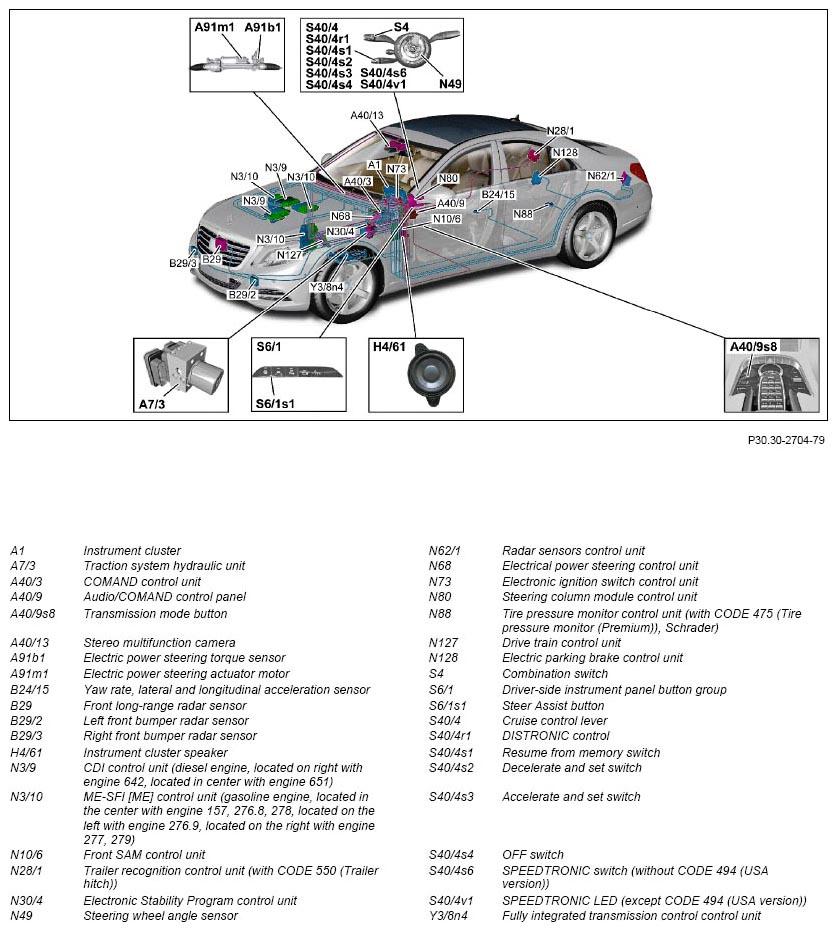

Cruise control, shown on model 222.0

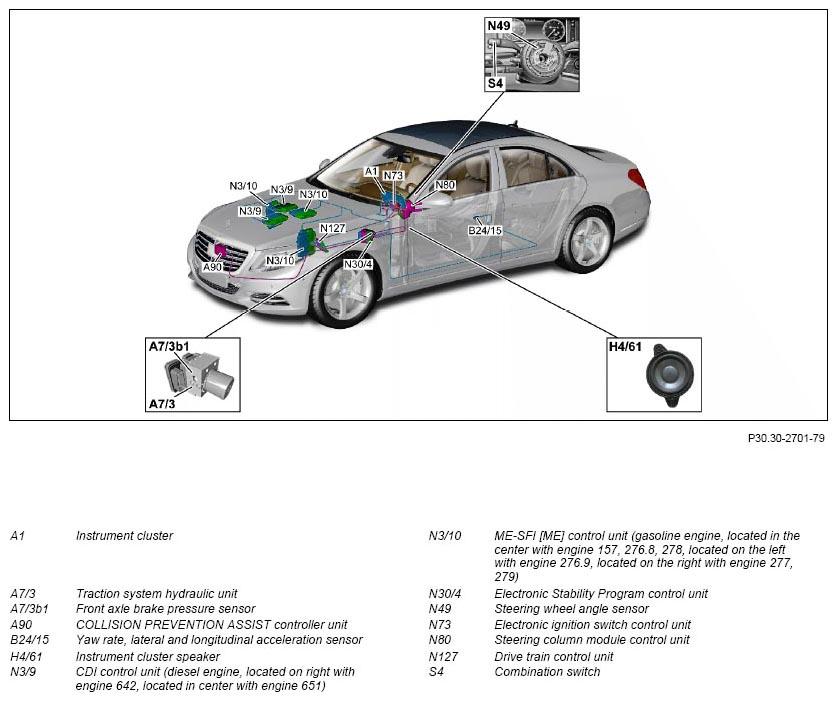

COLLISION PREVENTION ASSIST PLUS (with CODE 258 (COLLISION PREVENTION ASSIST)), shown on model 222.0

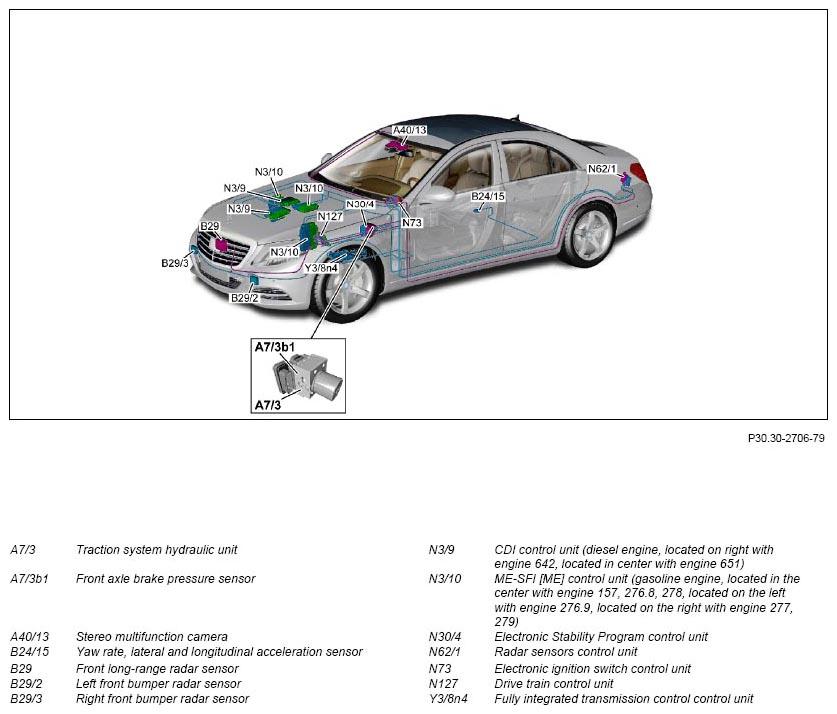

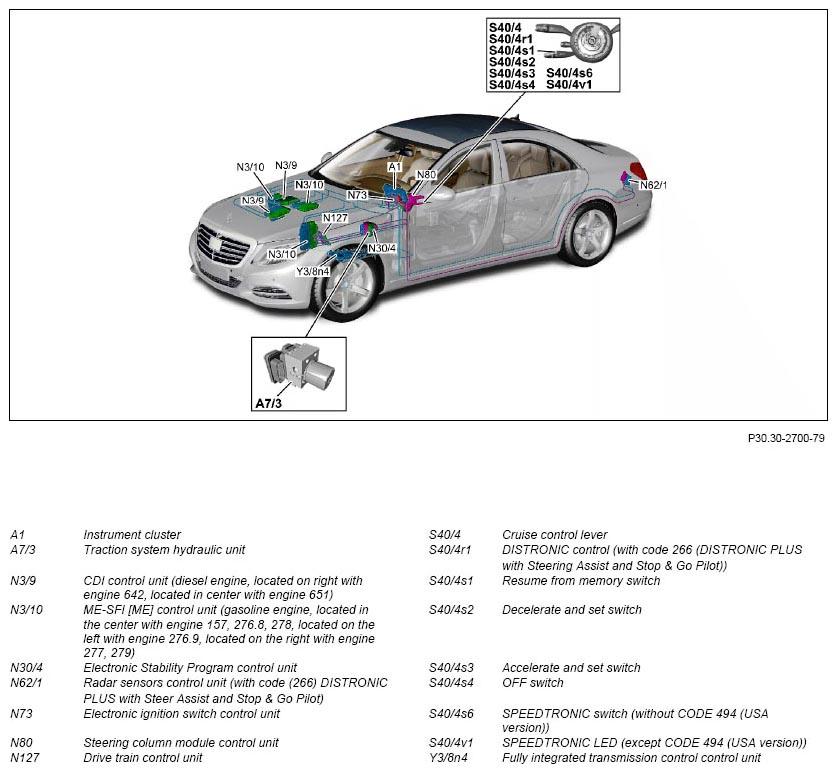

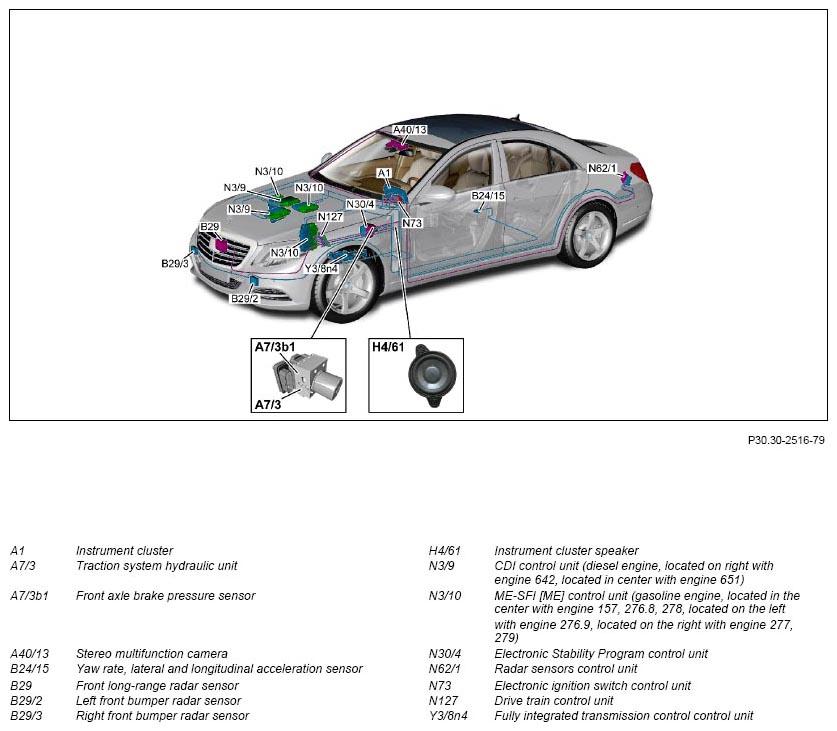

DISTRONIC PLUS with Steer Assist and Stop & Go Pilot (with CODE 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot), shown on model 222.0

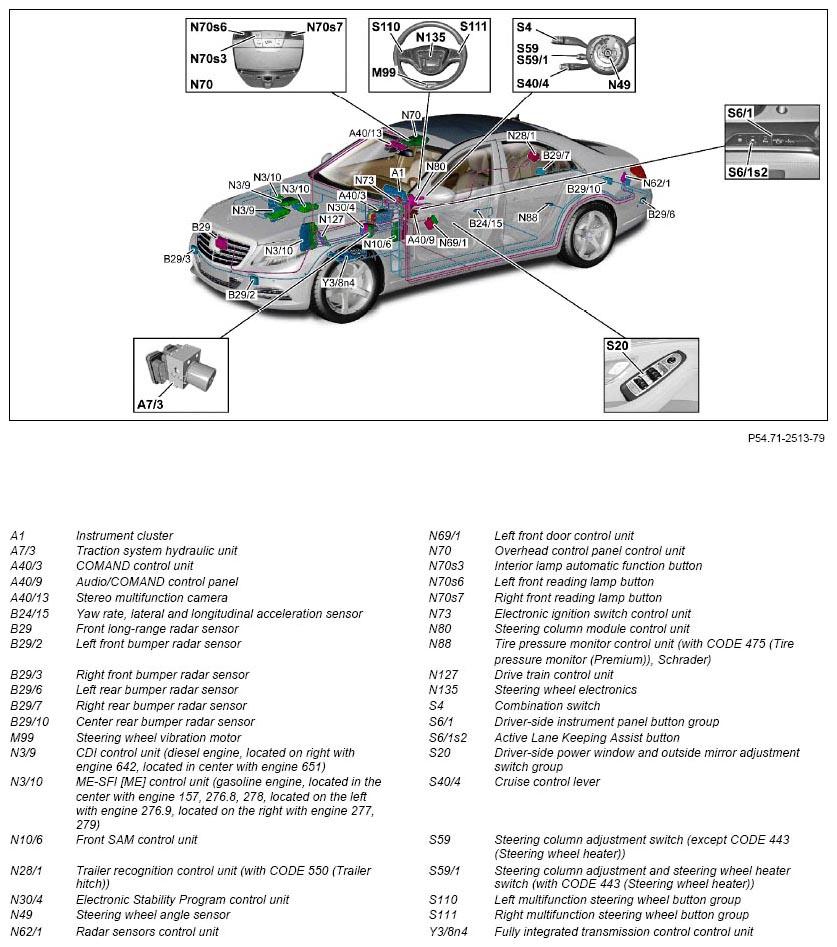

Active Blind Spot Assist (with CODE 237 (Active Blind Spot Assist)), shown on model 222.0

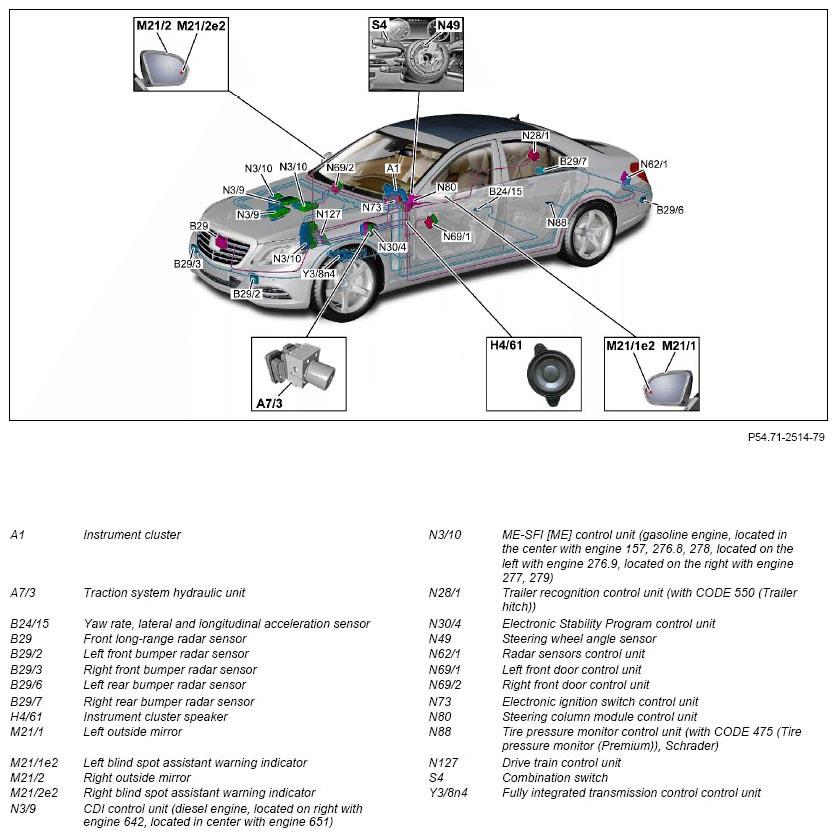

Active Lane Keeping Assist (with CODE 238 (ACTIVE LANE KEEPING ASSIST)); show non model 222.0

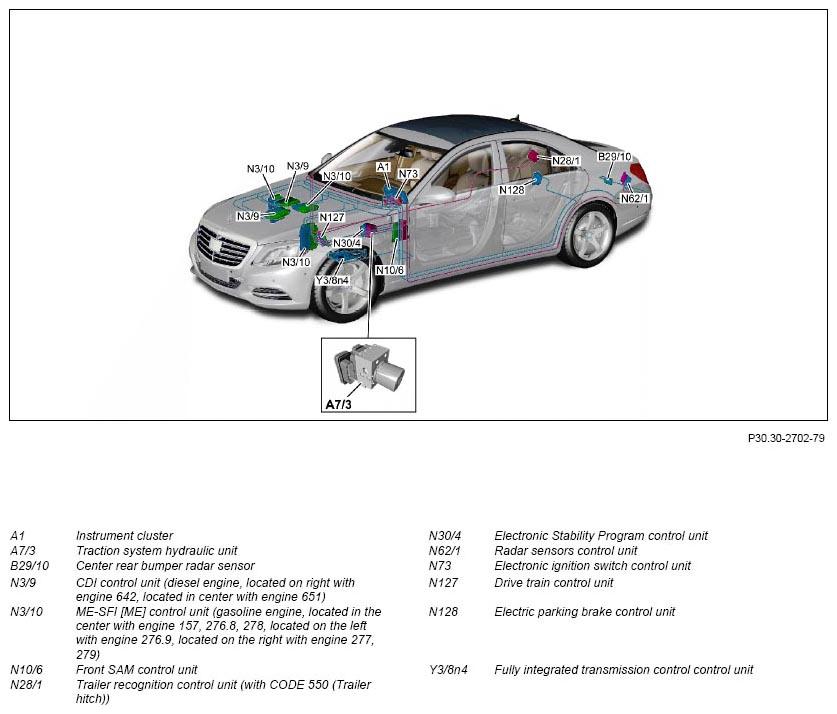

Rear-end PRE-SAFE® (with CODE 253 (REAR COLLISION WARNING AND PROTECTION SYSTEM)); shown on model 222.0
BAS PLUS (with CODE 268 (Brake Assist System PLUS) or CODE 269 (Brake Assist System PLUS cross-traffic (BAS+Q))), shown on model 222.0
PRE-SAFE® brake (with CODE 271 (Autonomous brake intervention/pedestrian protection) or with CODE 300 (Collision reduction (CMS))); shown on model 222.0
Traffic Sign Assist (with CODE 513 (Traffic sign recognition)), shown on model 222.0

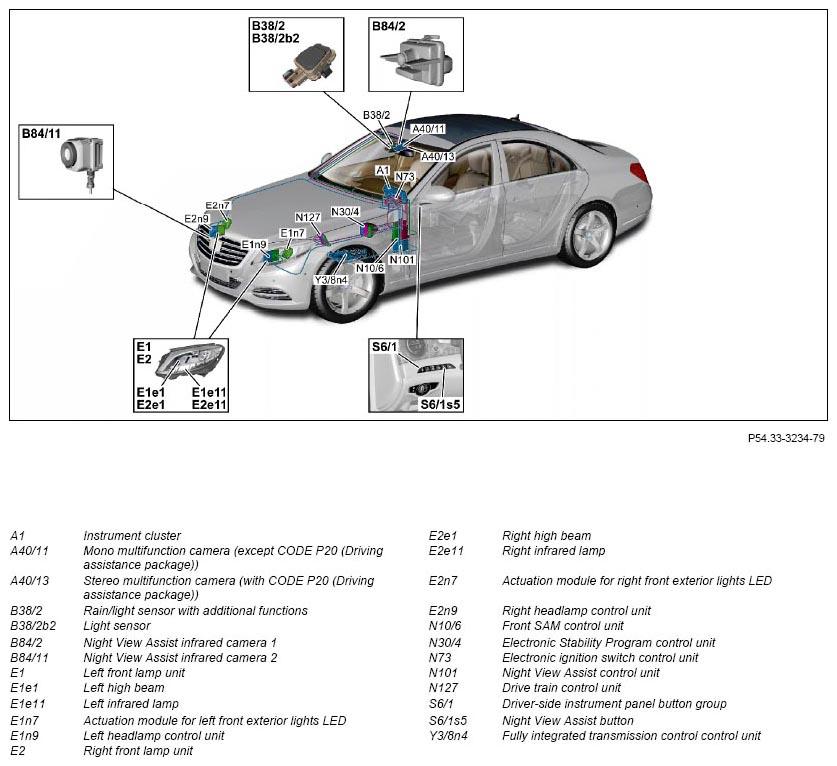

Night View Assist (with CODE 610 (Night View Assist)), shown on model 222.0
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136LF | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150LF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501LF | |
| Component description for multifunction camera | MODEL 217, 222 with CODE 487 (Active Body Control (ABC)) MODEL 217, 222 with CODE 513 (Speed Limit Assist) MODEL 217, 222 with CODE 608 (Adaptive Highbeam Assist) MODEL 217, 222 with CODE 610 (Night view assist) MODEL 217, 222 with CODE 628 (Adaptive Highbeam Assist Plus) MODEL 217, 222 with CODE P20 (Driving Assistance package) A40/11, A40/13 |
GF54.21-P-3300LF | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 217, 222 with CODE 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214LF | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810LF | |
| Long-range radar sensor, component description | MODEL 217, 222 with CODE P20 (Driving Assistance package) B29 |
GF30.30-P-3125LF | |
| Component description for bumper radar sensors | MODEL 217, 222 with CODE P20 (Driving Assistance package) B29/2, B29/3, B29/6, B29/7, B29/10 |
GF30.30-P-3302LF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005LF | |
| Actuation module, LED exterior lighting, front, component description | MODEL 217 MODEL 222 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) MODEL 222 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 222 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) E1n7, E2n7 |
GF82.10-P-2160LF | |
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020LF | |
| Component description for CDI control unit | MODEL 222 with ENGINE 651.9 N3/9 |
GF07.16-P-6000OLA | |
| MODEL 222 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OGS | ||
| Component description for ME-SFI (ME) control unit | MODEL 222 with ENGINE 276.8 N3/10 | GF07.61-P-6000MMT | |
| MODEL 222 with ENGINE 276.9 N3/10 | GF07.61-P-6000MMK | ||
| MODEL 217, 222 with ENGINE 157.9, 278.9 N3/10 | GF07.61-P-6000MML | ||
| MODEL 217 with ENGINE 279 MODEL 222 with ENGINE 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for trailer recognition control unit | MODEL 222 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050LF | |
| Component description for Electronic Stability Program control unit | MODEL 217, 222 (except 222.004/057/104/157/163) N30/4 | GF42.45-P-5119LF | |
| MODEL 222.004/057/104/157/163 N30/4 | GF42.45-P-5119LFH | ||
| Component description for radar sensors control unit | MODEL 217, 222 with CODE P20 (Driving Assistance package) N62/1 |
GF30.30-P-3301LF | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LF | |
| Component description for tire pressure monitor control unit | MODEL 217, 222 with CODE 475 (Tire pressure monitoring system) Schrader N88 |
GF40.15-P-5124LF | |
| Night View Assist control unit, component description | MODEL 217, 222 with CODE 610 (Night view assist) N101 |
GF54.30-P-6200LF | |
| Drivetrain control unit, component description | MODEL 217 with ENGINE 157.9, 278.9, 279 MODEL 222 (except 222.163) with ENGINE 276.8 MODEL 222 with ENGINE 157.9, 277, 278.9, 279 N127 |
GF54.21-P-2141LF | |
| MODEL 222 with ENGINE 276.9 MODEL 222.163 with ENGINE 276.8 N127 |
GF54.21-P-2141MMK | ||
| MODEL 222 with ENGINE 642.8 N127 | GF54.21-P-2141OGS | ||
| MODEL 222 with ENGINE 651.9 N127 | GF54.21-P-2141OLA | ||
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005LF | |
| Component description for fully integrated transmission control unit | MODEL 222 with TRANSMISSION 724.2 Y3/8n4 | GF27.60-P-5165LFH | |
| MODEL 217, 222 with TRANSMISSION 722.9 (except 722.931/932/971) Y3/8n4 | GF27.60-P-5165AHB | ||
| MODEL 217, 222 with TRANSMISSION 722.931/971 Y3/8n4 | GF27.60-P-5165AHD | ||
| MODEL 217, 222 with TRANSMISSION 722.932 Y3/8n4 | GF27.60-P-5165AHY | ||
| MODEL 217, 222 with TRANSMISSION 725.0 Y3/8n4 | GF27.60-P-5165AND | ||
| Table of contents for function description of driver assistance systems | GF54.00-P-0998LF |
