Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

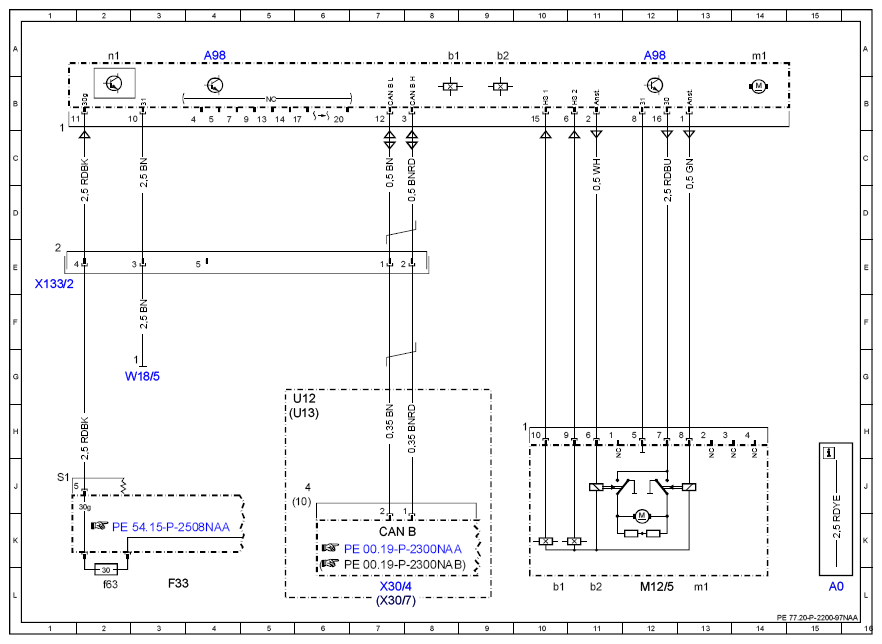

MODEL 166 up to model year 2016 with CODE 413 (Automatic panoramic sliding sunroof) Control unit A98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A98 | Panoramic sliding roof control module | 4A |
| A98 | Panoramic sliding roof control module | 12A |
| A98b1 | Hall sensor 1, panoramic sliding roof | 8A |
| A98b2 | Hall sensor 2, panoramic sliding roof | 9A |
| A98m1 | Panoramic sliding roof motor | 14A |
| A98n1 | Panoramic sliding roof control unit | 2A |
| CAN B | Interior CAN | 7K |
| F33 | Battery compartment prefuse box | 3L |
| F33f63 | Fuse 63 | 2L |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 12L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 10L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 11L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 13L |
| U12 | Valid for left-hand drive vehicles | 5G |
| U13 | Valid for right-hand drive vehicles | 5H |
| W18/5 | Roof ground point | 3G |
| X133/2 | Sliding roof electrical connector | 1E |
| X30/4 | Right potential distributor electrical connector (CAN) | 7L |
| X30/7 | Left potential distributor electrical connector (CAN) | 7L |
