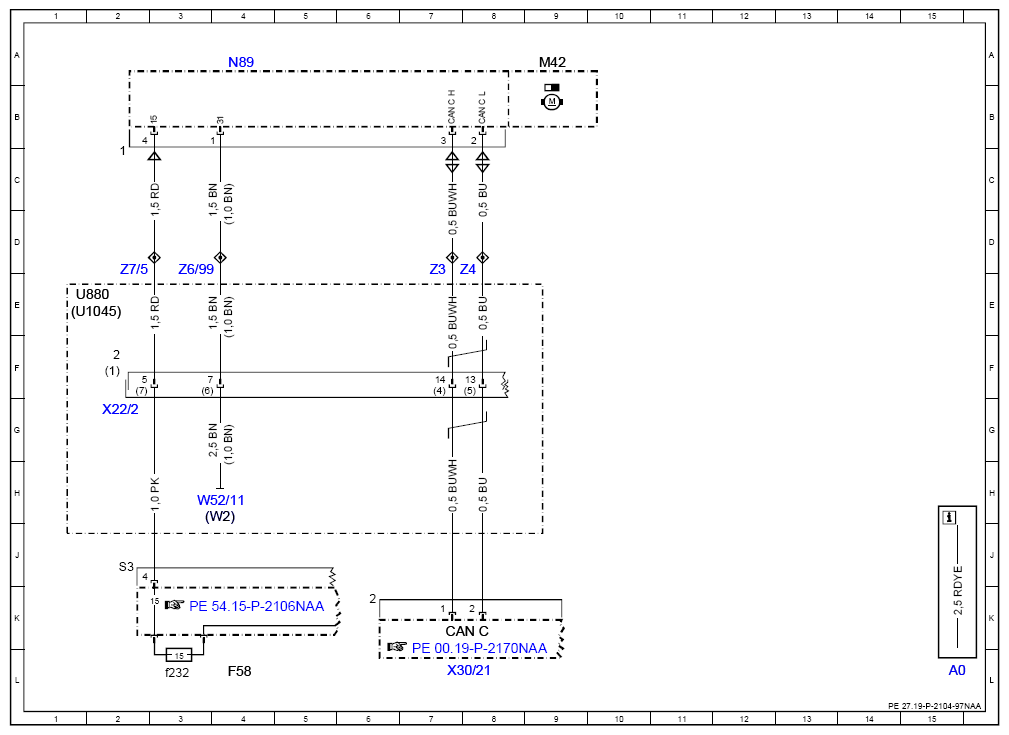

Wiring Diagram For Transmission Oil Auxiliary Pump Control Unit - PE27.19-P-2104-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Control unit N89
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| CAN C | Drive train CAN | 7K |
| F58 | Engine compartment fuse and relay module | 4L |
| F58f232 | Fuse 232 | 3L |
| M42 | Electric transmission oil pump | 9A |
| N89 | Transmission oil auxiliary pump control unit | 4A |
| U1045 | Not valid for diesel engine 642 | 1E |
| U880 | Valid for engine 642 | 1E |
| W2 | Right front ground point at lamp unit | 4H |
| W52/11 | Upper right front longitudinal member ground point | 3H |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 2G |
| X30/21 | Drive train CAN voltage distributor electrical connector | 7L |
| Z3 | Tml. 15 connector sleeve | 7E |
| Z4 | Circuit 15/30 connector sleeve | 8E |
| Z6/99 | Transmission circuit 31 connector sleeve | 3E |
| Z7/5 | Circuit 87 connector sleeve | 2E |
