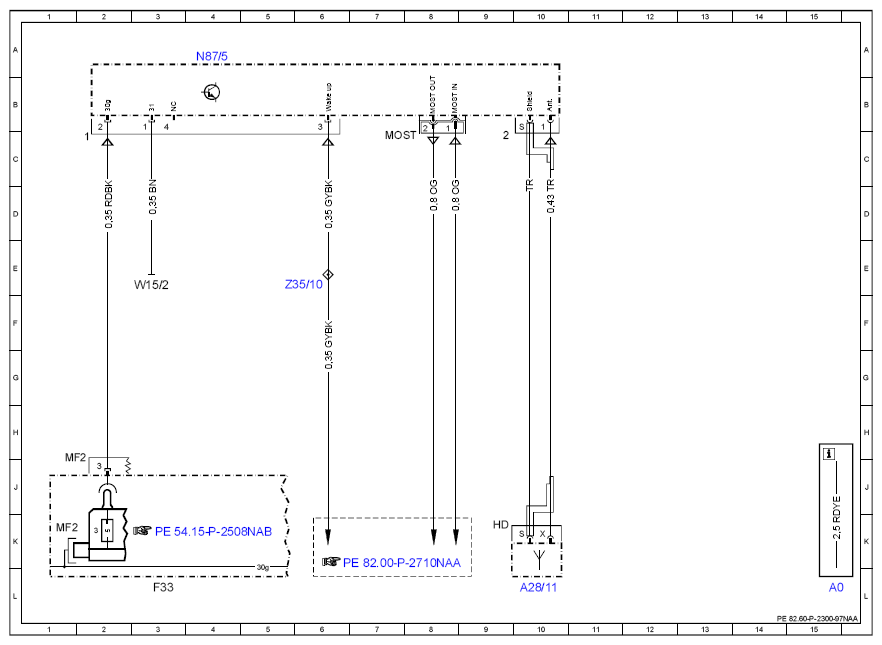

Satellite Digital Audio Radio System (SDAR) Wiring Diagram - PE82.60-P-2300-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE 536 (SIRIUS satellite radio) Control unit N87/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A28/11 | Multifunction antenna | 10L |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 4A |
| W15/2 | Left footwell ground point | 3E |
| Z35/10 | MOST wake-up signal connector sleeve | 6E |
