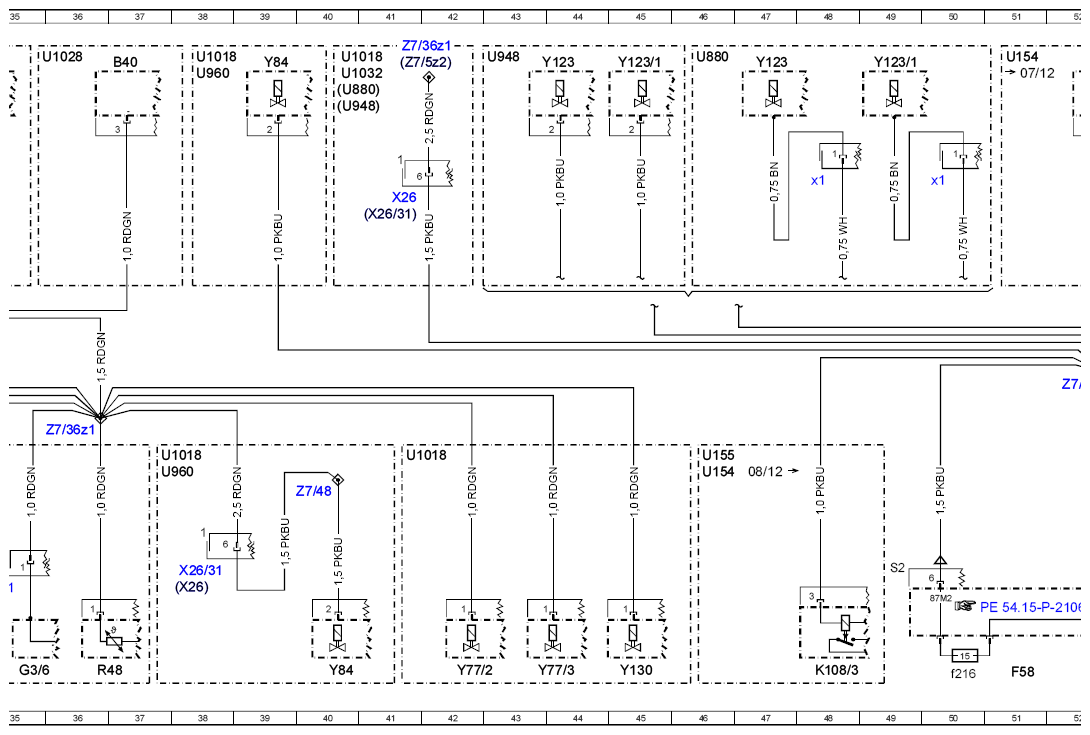

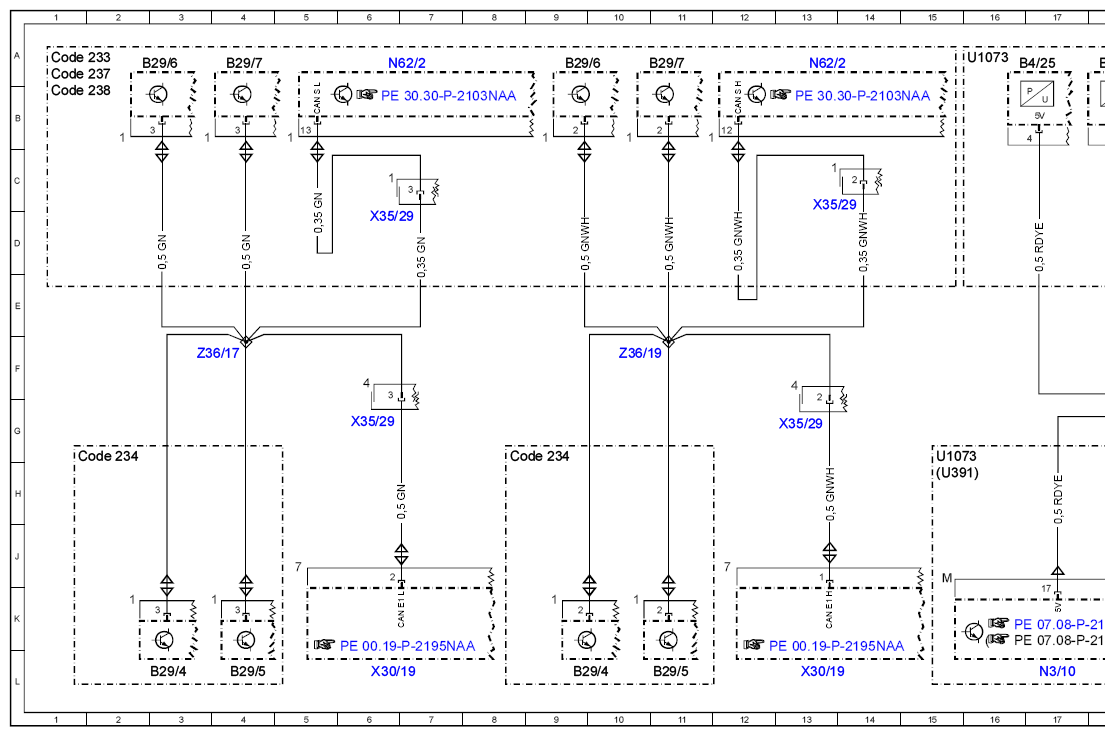

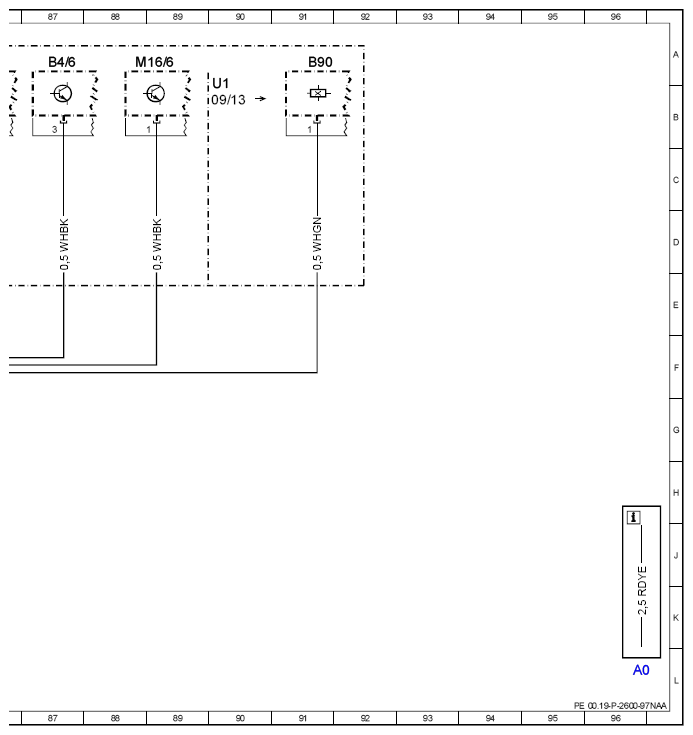

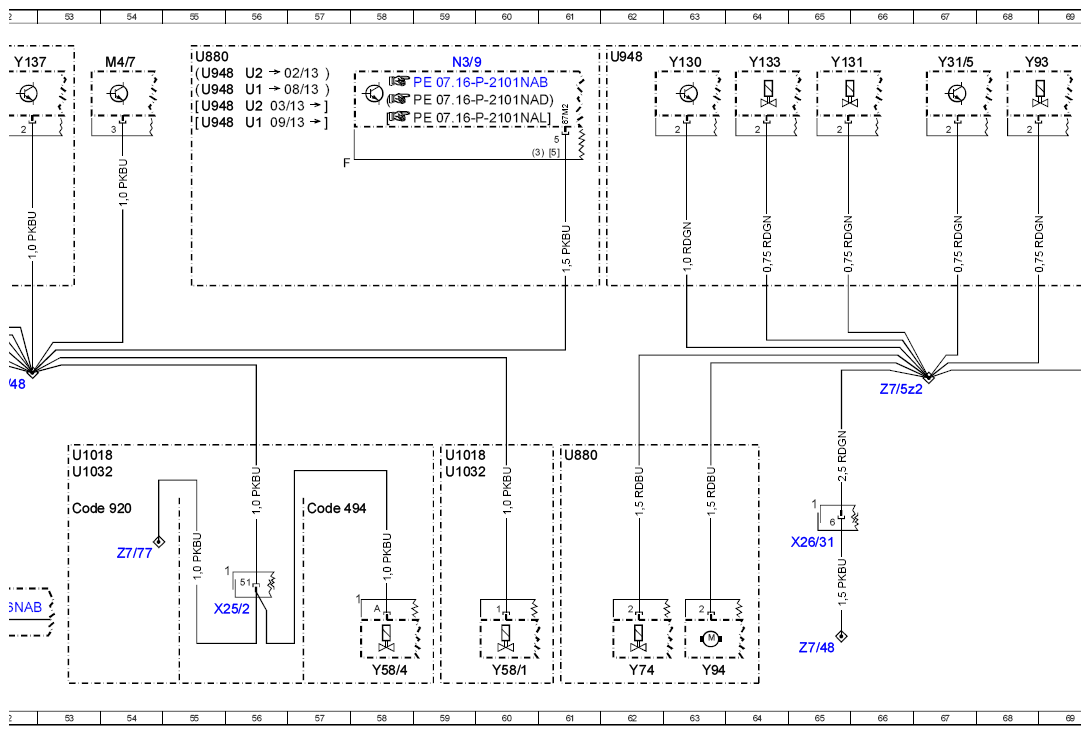

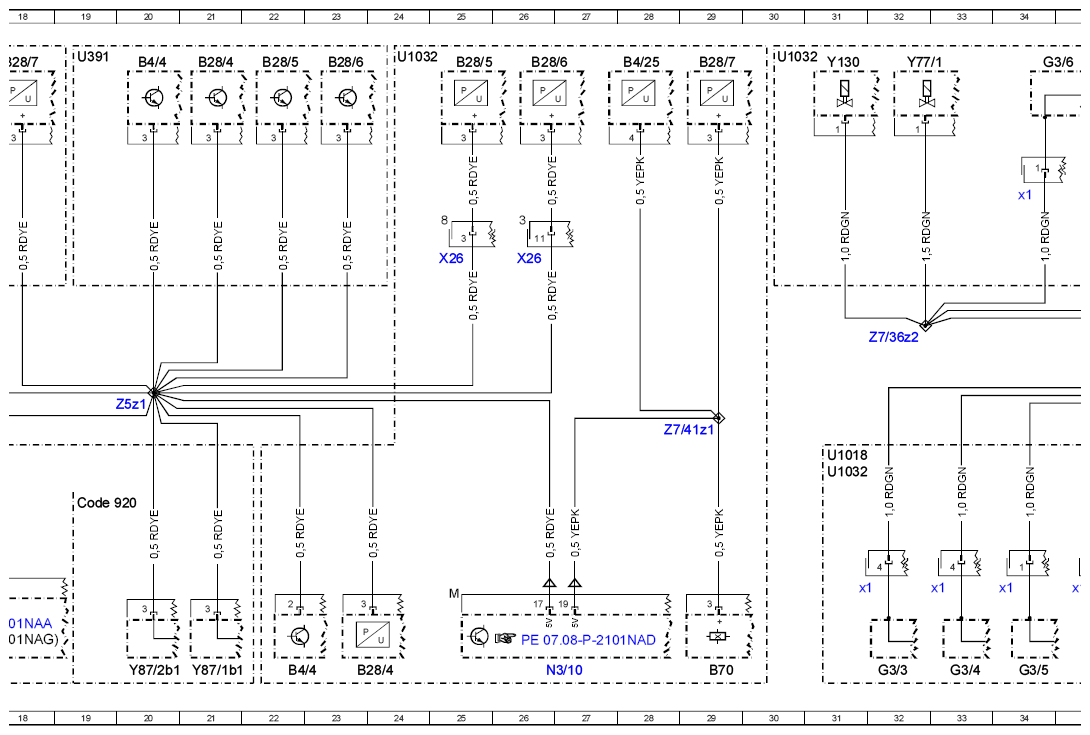

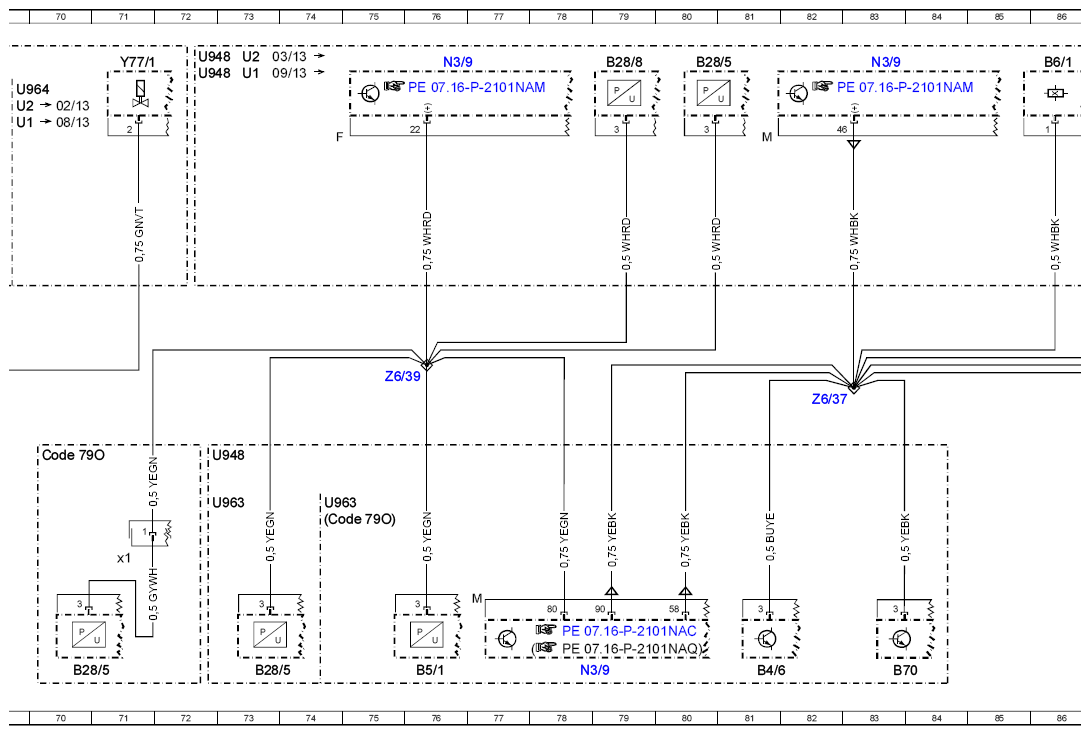

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 Z5z1, Z6/39, Z6/37, Z7/5z2, Z7/36z1, Z7/36z2, Z7/41z1, Z7/48, Z36/17, Z36/19
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| B28/4 | Pressure sensor downstream of left cylinder bank air filter | 23L |
| B28/4 | Pressure sensor downstream of left cylinder bank air filter | 21A |
| B28/5 | Pressure sensor downstream of air filter | 22A |
| B28/5 | Pressure sensor downstream of air filter | 25A |
| B28/5 | Pressure sensor downstream of air filter | 73L |
| B28/5 | Pressure sensor downstream of air filter | 80A |
| B28/5 | Pressure sensor downstream of air filter | 70L |
| B28/5x1 | 71J | |
| B28/6 | Pressure sensor upstream of throttle valve | 23A |
| B28/6 | Pressure sensor upstream of throttle valve | 26A |
| B28/7 | Pressure sensor downstream of throttle valve | 18A |
| B28/7 | Pressure sensor downstream of throttle valve | 29A |
| B28/8 | Differential pressure sensor (DPF) | 79A |
| B29/4 | Left rear bumper intelligent radar sensor | 3L |
| B29/4 | Left rear bumper intelligent radar sensor | 9L |
| B29/5 | Right rear bumper intelligent radar sensor | 11L |
| B29/5 | Right rear bumper intelligent radar sensor | 4L |
| B29/6 | Left rear bumper radar sensor | 3A |
| B29/6 | Left rear bumper radar sensor | 9A |
| B29/7 | Right rear bumper radar sensor | 11A |
| B29/7 | Right rear bumper radar sensor | 4A |
| B4/25 | Fuel tank pressure and temperature sensor | 17A |
| B4/25 | Fuel tank pressure and temperature sensor | 28A |
| B4/4 | Purging pressure sensor | 22L |
| B4/4 | Purging pressure sensor | 20A |
| B4/6 | Fuel high-pressure sensor | 81L |
| B4/6 | Fuel high-pressure sensor | 87A |
| B40 | Oil sensor (oil level, temperature and quality) | 37A |
| B5/1 | Boost pressure sensor | 76L |
| B6/1 | Camshaft Hall sensor | 86A |
| B70 | Crankshaft Hall sensor | 29L |
| B70 | Crankshaft Hall sensor | 83L |
| B90 | Exhaust gas recirculation cooling bypass flap Hall sensor | 91A |
| Code 233 | DISTRONIC PLUS | 1A |
| Code 234 | Blind Spot Assist (BSM) | 1G |
| Code 234 | Blind Spot Assist (BSM) | 8G |
| Code 237 | Active Blind Spot Assist | 1A |
| Code 238 | Active Lane Keeping Assist | 1B |
| Code 494 | USA version | 57H |
| Code 790 | 70G | |
| Code 790 | 74H | |
| Code 920 | Gasoline direct injection with stratified charge | 19H |
| Code 920 | Gasoline direct injection with stratified charge | 53H |
| F58 | Engine compartment fuse and relay module | 51L |
| F58f216 | Fuse 216 | 50L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 32L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 31K |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 33L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 33K |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 34L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 34K |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 35L |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 34A |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 35K |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 34C |
| K108/3 | Coolant run-on pump relay | 48L |
| M16/6 | Throttle valve actuator | 88A |
| M4/7 | Fan motor | 54A |
| N3/10 | ME-SFI [ME] control unit | 17L |
| N3/10 | ME-SFI [ME] control unit | 27L |
| N3/9 | CDI control unit | 78L |
| N3/9 | CDI control unit | 59A |
| N3/9 | CDI control unit | 76A |
| N3/9 | CDI control unit | 83A |
| N62/2 | Video and radar sensor system control unit | 6A |
| N62/2 | Video and radar sensor system control unit | 13A |
| R48 | Coolant thermostat heating element | 36L |
| U1 | Valid for USA | 56B |
| U1 | Valid for USA | 56B |
| U1 | Valid for USA | 69B |
| U1 | Valid for USA | 73A |
| U1 | Valid for USA | 90B |
| U1018 | Valid for gasoline engine 276 | 31G |
| U1018 | Valid for gasoline engine 276 | 37G |
| U1018 | Valid for gasoline engine 276 | 41G |
| U1018 | Valid for gasoline engine 276 | 38A |
| U1018 | Valid for gasoline engine 276 | 40A |
| U1018 | Valid for gasoline engine 276 | 53G |
| U1018 | Valid for gasoline engine 276 | 59G |
| U1028 | Valid for engine 157 | 35A |
| U1032 | Valid for engine 278 and 157 | 31H |
| U1032 | Valid for engine 278 and 157 | 24A |
| U1032 | Valid for engine 278 and 157 | 30A |
| U1032 | Valid for engine 278 and 157 | 40A |
| U1032 | Valid for engine 278 and 157 | 53H |
| U1032 | Valid for engine 278 and 157 | 59H |
| U1073 | Valid for gasoline engine 276.9 | 15G |
| U1073 | Valid for gasoline engine 276.9 | 16A |
| U154 | Valid for 166.0 | 46H |
| U154 | Valid for 166.0 | 51A |
| U155 | Valid for 166.8 | 46G |
| U2 | Valid for all except USA | 56A |
| U2 | Valid for all except USA | 56B |
| U2 | Valid for all except USA | 69B |
| U2 | Valid for all except USA | 73A |
| U391 | Valid for gasoline engine 276.8 | 15H |
| U391 | Valid for gasoline engine 276.8 | 19A |
| U880 | Valid for engine 642 | 40B |
| U880 | Valid for engine 642 | 46A |
| U880 | Valid for engine 642 | 61G |
| U880 | Valid for engine 642 | 55A |
| U948 | Valid for diesel engine 651 | 40B |
| U948 | Valid for diesel engine 651 | 43A |
| U948 | Valid for diesel engine 651 | 72G |
| U948 | Valid for diesel engine 651 | 55A |
| U948 | Valid for diesel engine 651 | 55B |
| U948 | Valid for diesel engine 651 | 55B |
| U948 | Valid for diesel engine 651 | 55B |
| U948 | Valid for diesel engine 651 | 62A |
| U948 | Valid for diesel engine 651 | 72A |
| U960 | Valid for radiator shutters | 37H |
| U960 | Valid for radiator shutters | 38A |
| U963 | Valid for piezo fuel injector | 72H |
| U963 | Valid for piezo fuel injector | 74H |
| U964 | Valid for all except piezo fuel injector | 69B |
| X25/2 | Engine compartment/vehicle interior electrical connector | 56K |
| X26 | Interior and engine wiring harness electrical connector | 38K |
| X26 | Interior and engine wiring harness electrical connector | 25D |
| X26 | Interior and engine wiring harness electrical connector | 26D |
| X26 | Interior and engine wiring harness electrical connector | 41C |
| X26/31 | Engine/engine compartment electrical connector | 38J |
| X26/31 | Engine/engine compartment electrical connector | 41D |
| X26/31 | Engine/engine compartment electrical connector | 65J |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 6L |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 13L |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 6G |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 13G |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 6D |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 13C |
| Y123 | Left switchable engine mount | 44A |
| Y123 | Left switchable engine mount | 47A |
| Y123/1 | Right switchable engine mount | 49A |
| Y123/1 | Right switchable engine mount | 45A |
| Y123/1x1 | Right switchable engine mount electrical connector | 50C |
| Y123x1 | Left switchable engine mount electrical connector | 48C |
| Y130 | Engine oil pump valve | 45L |
| Y130 | Engine oil pump valve | 31A |
| Y130 | Engine oil pump valve | 63A |
| Y131 | Oil spray nozzle shutoff valve | 65A |
| Y133 | Coolant pump switchover valve | 64A |
| Y137 | High-temperature/low-temperature circuit switchover valve | 52A |
| Y31/5 | Boost pressure control pressure transducer | 67A |
| Y58/1 | Purge control valve | 60L |
| Y58/4 | Activated charcoal filter shutoff valve | 58L |
| Y74 | Pressure regulator valve | 62L |
| Y77/1 | Boost pressure control pressure transducer | 32A |
| Y77/1 | Boost pressure control pressure transducer | 71A |
| Y77/2 | Intake manifold resonance flap switchover valve | 42L |
| Y77/3 | Intake manifold selector drum switchover valve | 44L |
| Y84 | Radiator shutters actuator | 40L |
| Y84 | Radiator shutters actuator | 39A |
| Y87/1b1 | Right exhaust gas recirculation Hall sensor | 21L |
| Y87/2b1 | Left exhaust gas recirculation Hall sensor | 20L |
| Y93 | Boost pressure control flap pressure transducer | 68A |
| Y94 | Quantity control valve | 63L |
| Z36/17 | Rear sensor CAN (low) connector sleeve | 4F |
| Z36/19 | Rear sensor CAN (high) connector sleeve | 10F |
| Z5z1 | Sensor voltage supply connector sleeve | 20G |
| Z6/37 | Sensor voltage supply connector sleeve | 82G |
| Z6/39 | Sensor voltage supply connector sleeve | 75F |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 36G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 41A |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 32F |
| Z7/41z1 | Sensor power supply connector sleeve | 29G |
| Z7/48 | Circuit 87D2 connector sleeve | 40H |
| Z7/48 | Circuit 87D2 connector sleeve | 65L |
| Z7/48 | Circuit 87D2 connector sleeve | 52F |
| Z7/5z2 | Circuit 87 connector sleeve | 41A |
| Z7/5z2 | Circuit 87 connector sleeve | 66F |
| Z7/77 | Circuit 87 D2 connector sleeve | 54J |
