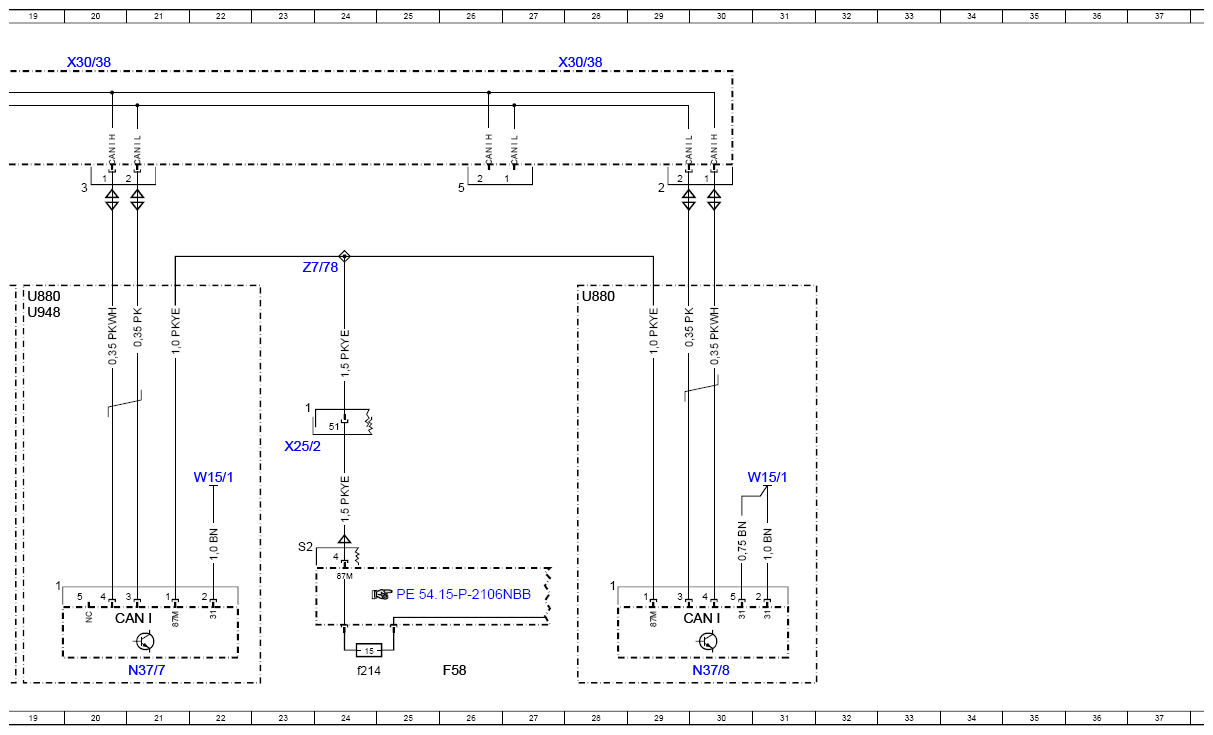

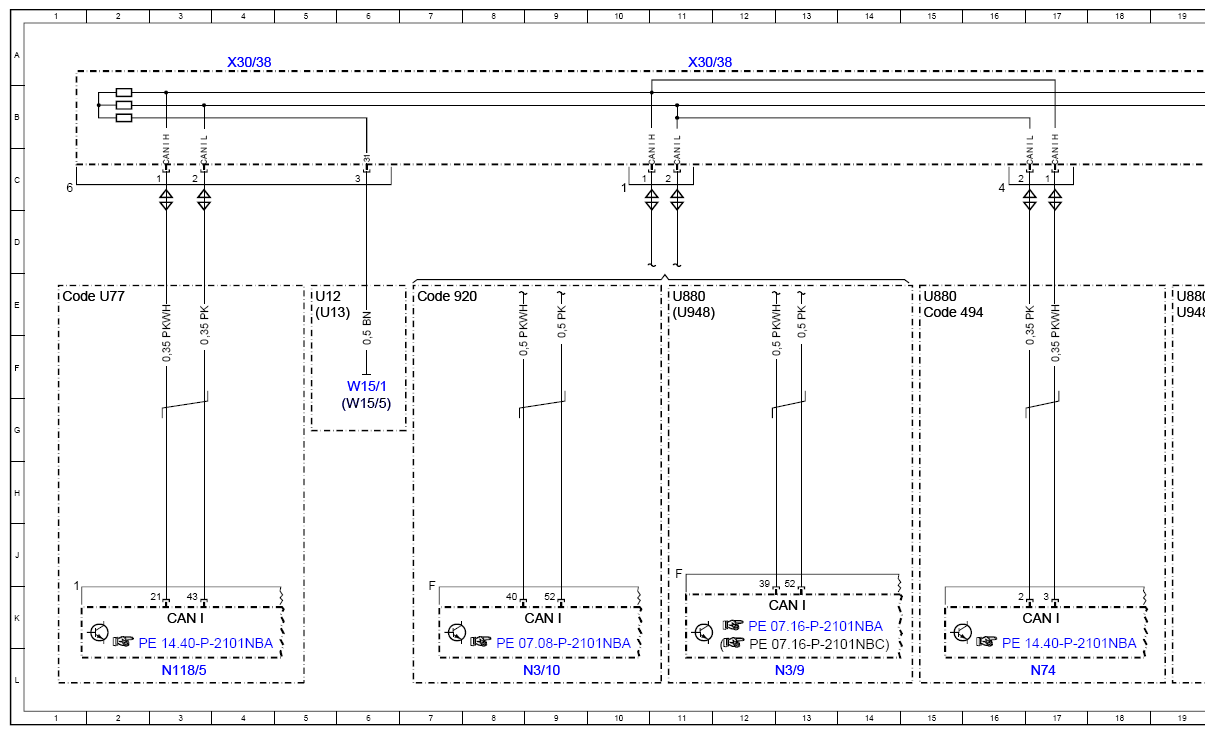

Wiring Diagram Of Drive Train CAN - PE00.19-P-2170-97NBB
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 Potential distributor X30/38
MODEL 292 Potential distributor X30/38
| Code: | Designation: | Position: |
|---|---|---|

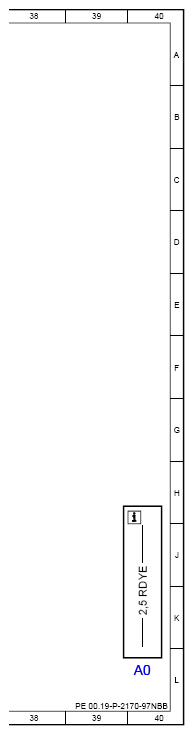

| A0 | Color code key | 40L |
| CAN I | Drive train sensor CAN | 3K |
| CAN I | Drive train sensor CAN | 13K |
| CAN I | Drive train sensor CAN | 9K |
| CAN I | Drive train sensor CAN | 17K |
| CAN I | Drive train sensor CAN | 20K |
| CAN I | Drive train sensor CAN | 30K |
| Code 494 | USA version | 15E |
| Code 920 | Gasoline direct injection with stratified charge | 7E |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 1E |
| F58 | Engine compartment fuse and relay module | 26L |
| F58f214 | Fuse 214 | 24L |
| N118/5 | AdBlue® control unit | 3L |
| N3/10 | ME-SFI [ME] control unit | 9L |
| N3/9 | CDI control unit | 13L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 21L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 30L |
| N74 | Soot particulate sensor control unit | 17L |
| U12 | Valid for left-hand drive vehicles | 5E |
| U13 | Valid for right-hand drive vehicles | 5E |
| U880 | Valid for engine 642 | 11E |
| U880 | Valid for engine 642 | 15E |
| U880 | Valid for engine 642 | 19E |
| U880 | Valid for engine 642 | 28E |
| U948 | Valid for diesel engine 651 | 11E |
| U948 | Valid for diesel engine 651 | 19E |
| W15/1 | Right footwell ground point | 6F |
| W15/1 | Right footwell ground point | 22H |
| W15/1 | Right footwell ground point | 31H |
| W15/5 | Left front footwell ground point | 6G |
| X25/2 | Engine compartment/vehicle interior electrical connector | 23G |
| X30/38 | Potential distributor electrical connector (CAN I) | 20A |
| X30/38 | Potential distributor electrical connector (CAN I) | 4A |
| X30/38 | Potential distributor electrical connector (CAN I) | 11A |
| X30/38 | Potential distributor electrical connector (CAN I) | 28A |
| Z7/78 | Circuit 87 D4 connector sleeve | 24D |
