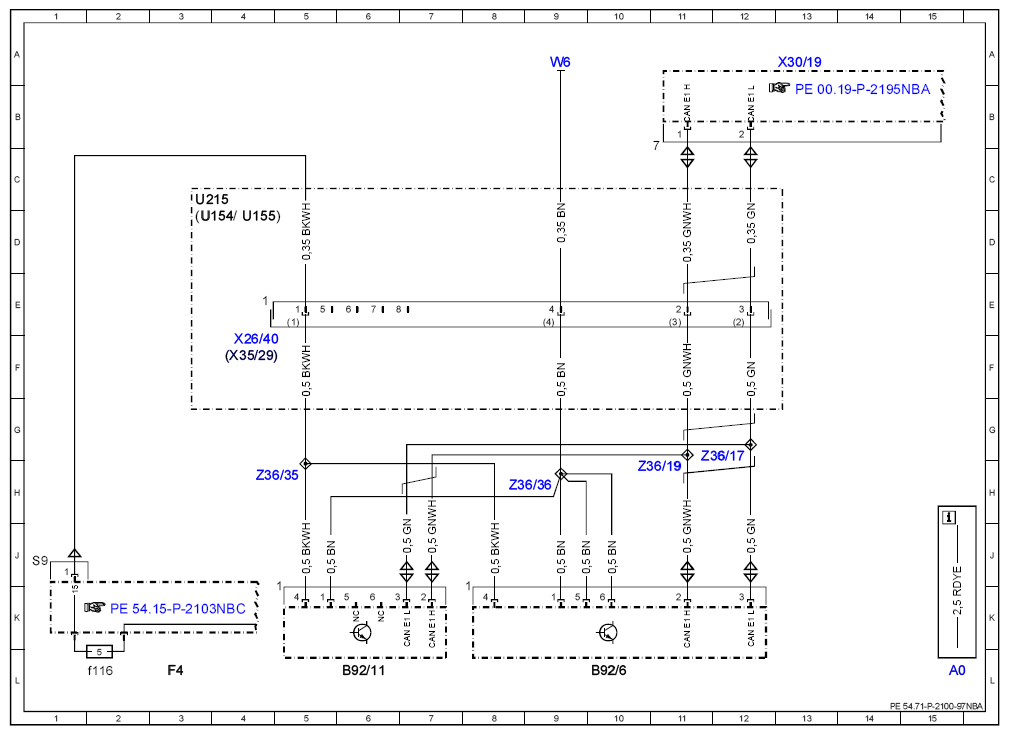

Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 with CODE 234 (Blind Spot Monitoring) B92/6, B92/11
MODEL 292 with CODE 234 (Blind Spot Monitoring) B92/6, B92/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| B92/11 | Left outer rear bumper integrated radar sensor | 6L |
| B92/6 | Right outer rear bumper integrated radar sensor | 10L |
| F4 | Rear fuse box | 3L |
| F4f116 | Fuse 116 | 2L |
| U154 | Valid for 166.0 | 3D |
| U155 | Valid for 166.8 | 4D |
| U215 | Valid for model series 292 | 3C |
| W6 | Inner left D-pillar ground point | 9A |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 4F |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 13A |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 4F |
| Z36/17 | Rear sensor CAN (low) connector sleeve | 12G |
| Z36/19 | Rear sensor CAN (high) connector sleeve | 11H |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 5H |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 9H |
