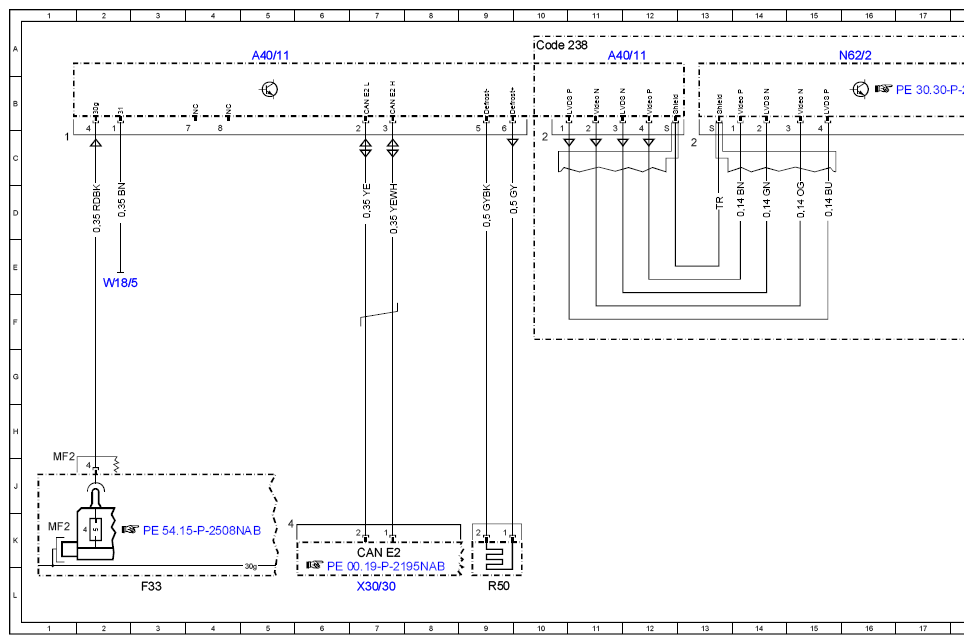

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE 238 (Active lane keeping Assist) with CODE 476 (Lane keeping assist) with CODE 513 (Road sign recognition system) with CODE 608 (Adaptive Highbeam Assist) Control unit A40/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 24L |
| A40/11 | Multifunction camera | 5A |
| A40/11 | Multifunction camera | 11A |
| CAN E2 | Chassis CAN 2 | 7K |
| Code 238 | Active Lane Keeping Assist | 10A |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| N62/2 | Video and radar sensor system control unit | 16A |
| R50 | Auxiliary heater heating element | 9L |
| W18/5 | Roof ground point | 2E |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 7L |
