Wiring diagram for telematics services communications module control unit - PE82.85-P-2105-97NAA

Code:	Designation:	Position:
A0	Color code key	23L
A2/52	Emergency call system antenna	13L
A40/3	COMAND control unit	16L
F33	Battery compartment prefuse box	3L
F33f50	Fuse 50	1K
N112/2	Telematics services communication module	4A
N112/2	Telematics services communication module	15A
N73	Electronic ignition switch control unit	7L
W17/1	Left rear seat ground point	2E
X11/4	Diagnostic connector	10L
X18	Vehicle interior and harness for taillamp electrical connector	6E
Z35/12	Diagnostic CAN low connector sleeve	7G
Z35/13	Diagnostic CAN high connector sleeve	6G

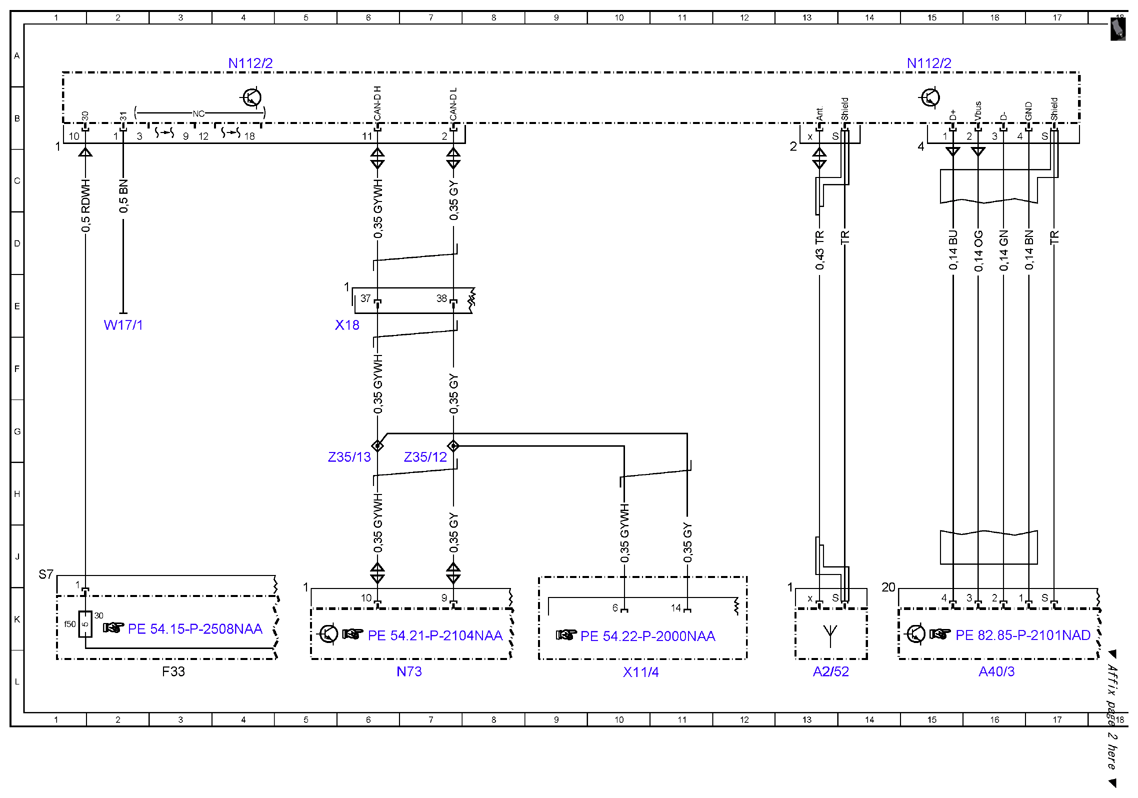

Fig 1: Telematics Services Communications Module Control Unit - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

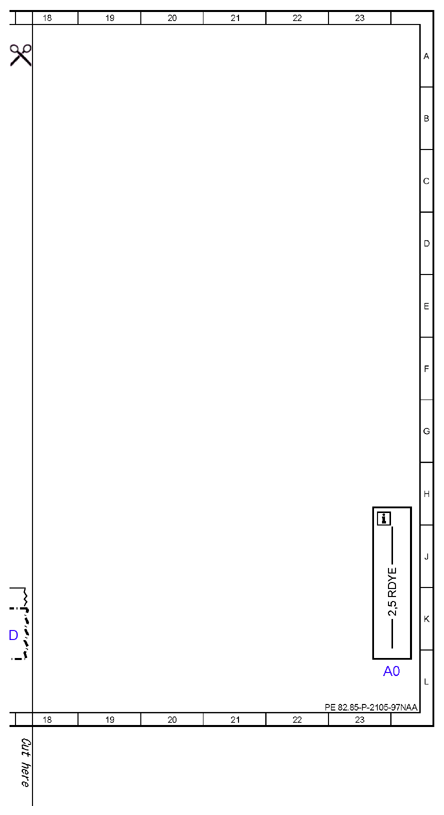

Fig 2: Telematics Services Communications Module Control Unit - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
