| A0 |
Color code key |
48L |
| A2 |
Radio |
39L |
| A2/30-1 |
Cradle for navigation module |
11L |
| A40/3 |
COMAND control unit |
39L |
| A40/3 |
COMAND control unit |
35L |
| A40/4 |
DVD player |
23L |
| A40/5 |
Left rear display |
31L |
| A40/6 |
Right rear display |
27L |
| A40/8 |
Audio/COMAND display |
6L |
| A40/9 |
Audio/COMAND control panel |
2L |
| A90/1 |
TV tuner (analog/digital) |
15L |
| A90/1 |
TV tuner (analog/digital) |
19L |
| A90/3 |
TV digital tuner |
15L |
| A90/3 |
TV digital tuner |
19L |

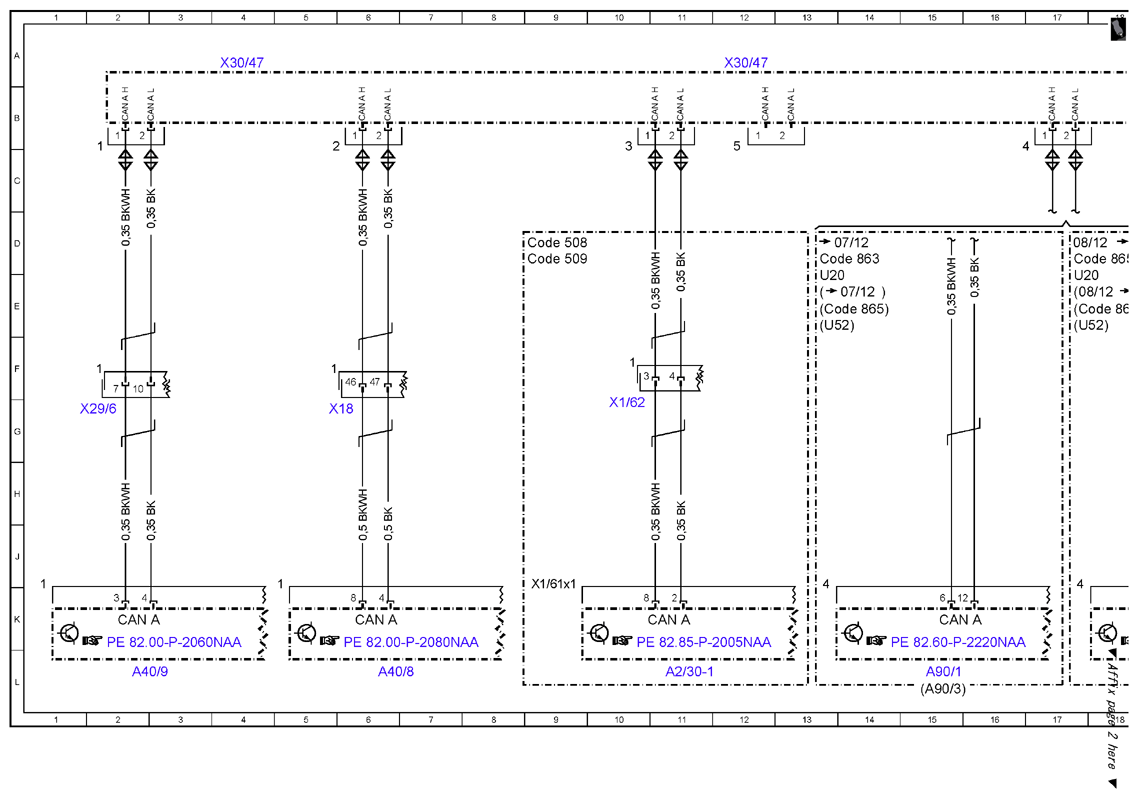

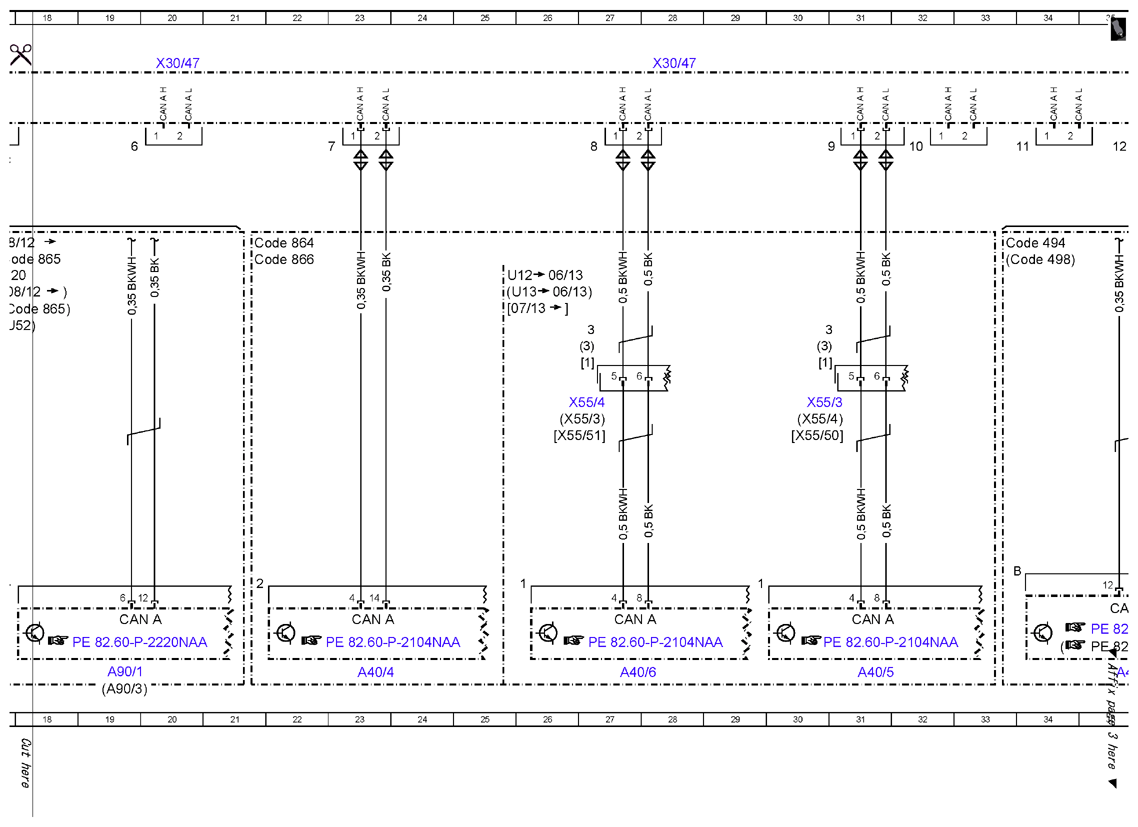

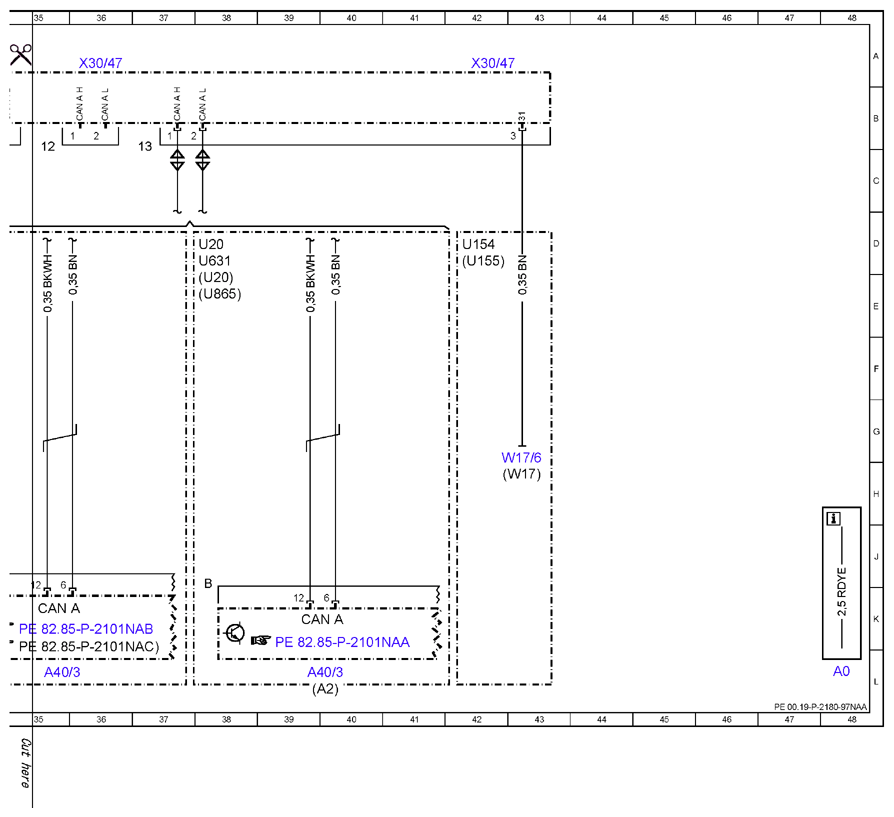

| CAN A |
Telematics CAN |
2K |
| CAN A |
Telematics CAN |
6K |
| CAN A |
Telematics CAN |
11K |
| CAN A |
Telematics CAN |
15K |
| CAN A |
Telematics CAN |
19K |
| CAN A |
Telematics CAN |
23K |
| CAN A |
Telematics CAN |
39K |
| CAN A |
Telematics CAN |
35K |
| CAN A |
Telematics CAN |
27K |
| CAN A |
Telematics CAN |
31K |
| Code 494 |
USA version |
33D |
| Code 498 |
Japan version |
33D |
| Code 508 |
Navigation module preinstallation |
9D |
| Code 509 |
Navigation module |
9D |
| Code 863 |
Digital/analog TV tuner |
13D |
| Code 864 |
Rear compartment entertainment |
21D |
| Code 865 |
TV tuner (digital) |
13E |
| Code 865 |
TV tuner (digital) |
17D |
| Code 865 |
TV tuner (digital) |
17E |
| Code 866 |
Rear entertainment preinstallation |
21D |
| U12 |
Valid for left-hand drive vehicles |
25E |
| U13 |
Valid for right-hand drive vehicles |
25E |
| U154 |
Valid for 166.0 |
42D |
| U155 |
Valid for 166.8 |
42D |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
13E |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
17E |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
38E |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
38D |
| U52 |
Valid for Japan |
13E |
| U52 |
Valid for Japan |
17E |
| U631 |
Valid for COMAND |
38D |
| U865 |
Valid for Audio 20 |
38E |
| W17 |
Right rear seat ground point |
43H |
| W17/6 |
Rear seat crossmember ground point |
43H |
| X1/62 |
Vehicle interior electrical connector for navigation module/cradle for navigation module |
10G |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
6G |
| X29/6 |
Center console electrical connector |
2G |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
4A |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
12A |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
20A |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
28A |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
36A |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
42A |
| X55/3 |
Driver seat connector block |
27G |
| X55/3 |
Driver seat connector block |
30G |
| X55/4 |
Front passenger seat connector block |
27G |
| X55/4 |
Front passenger seat connector block |
30G |
| X55/50 |
Left rear display electrical connector |
30G |
| X55/51 |
Right rear display electrical connector |
26G |
