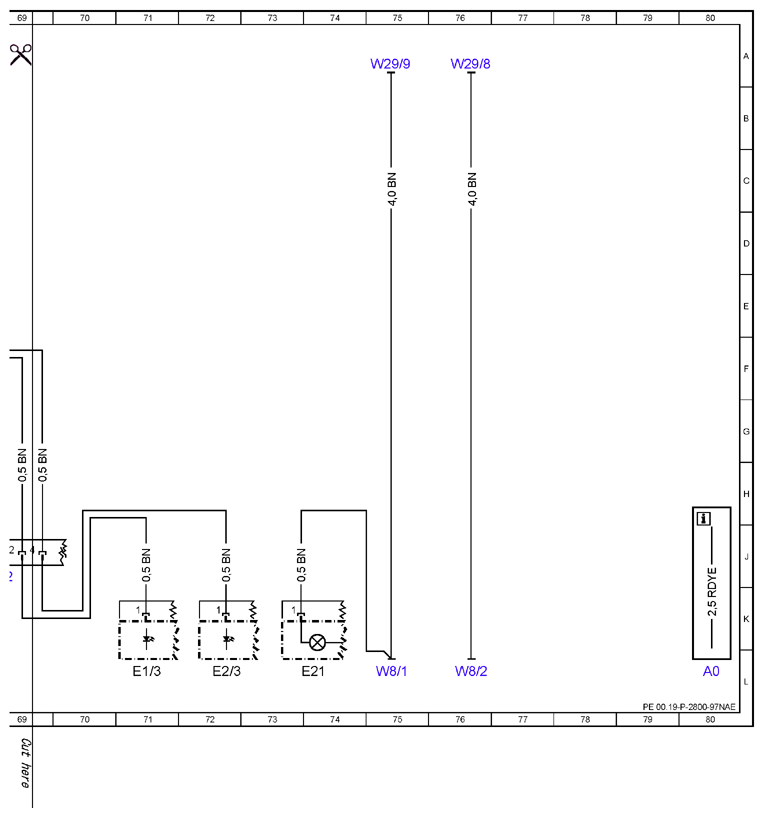

| A0 |
Color code key |
80L |

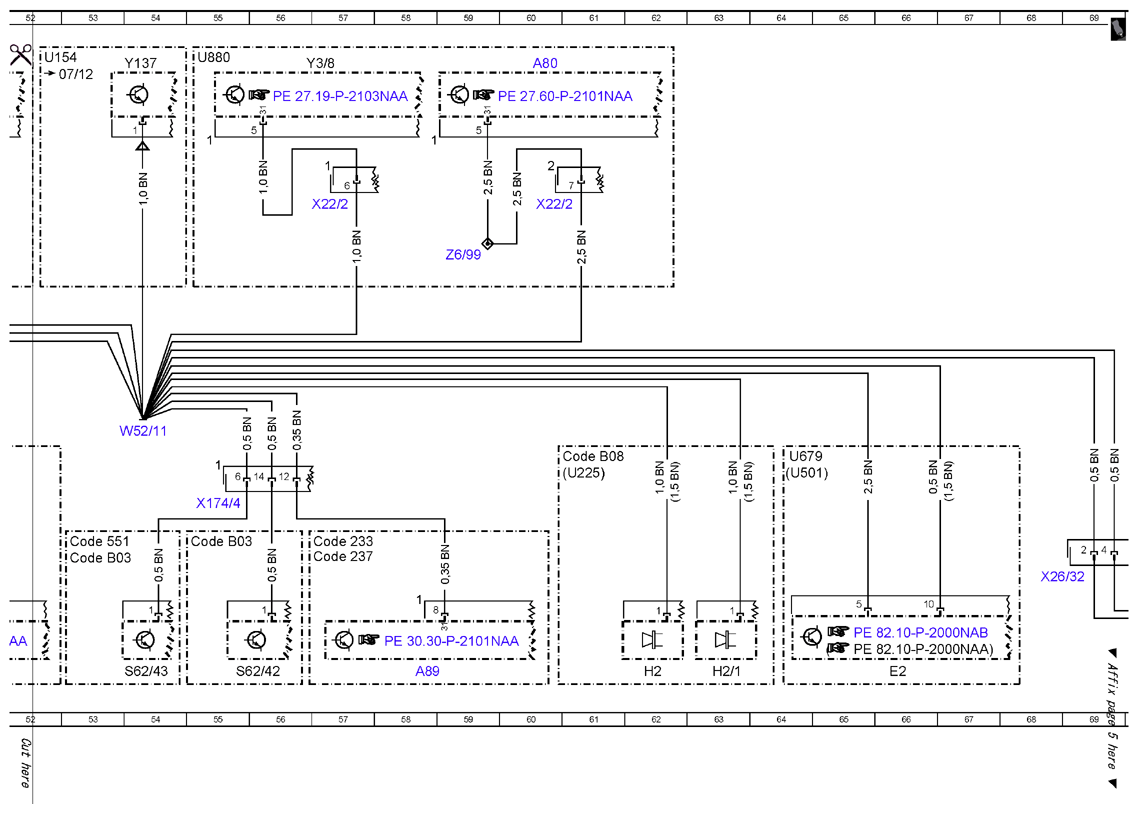

| A80 |
Intelligent servo module for DIRECT SELECT |
60A |
| A89 |
DISTRONIC electric controller unit |
58L |

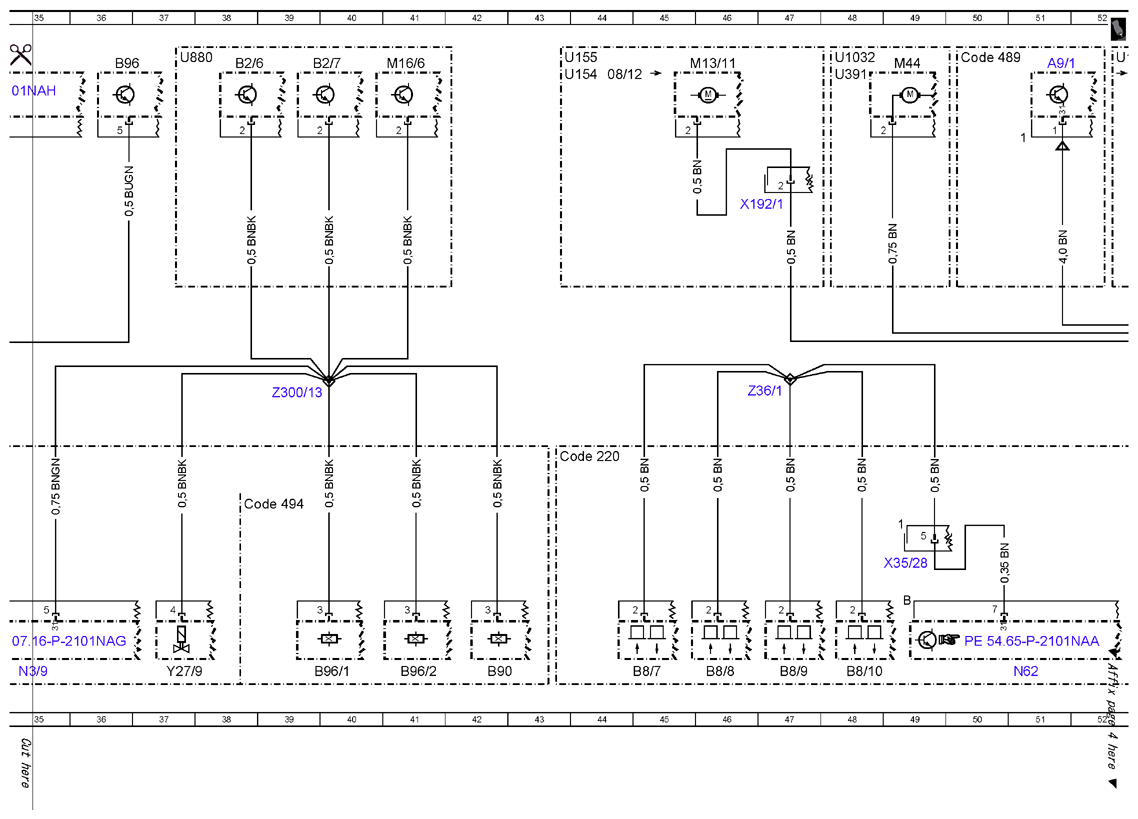

| A9/1 |
AIRMATIC compressor |
51A |

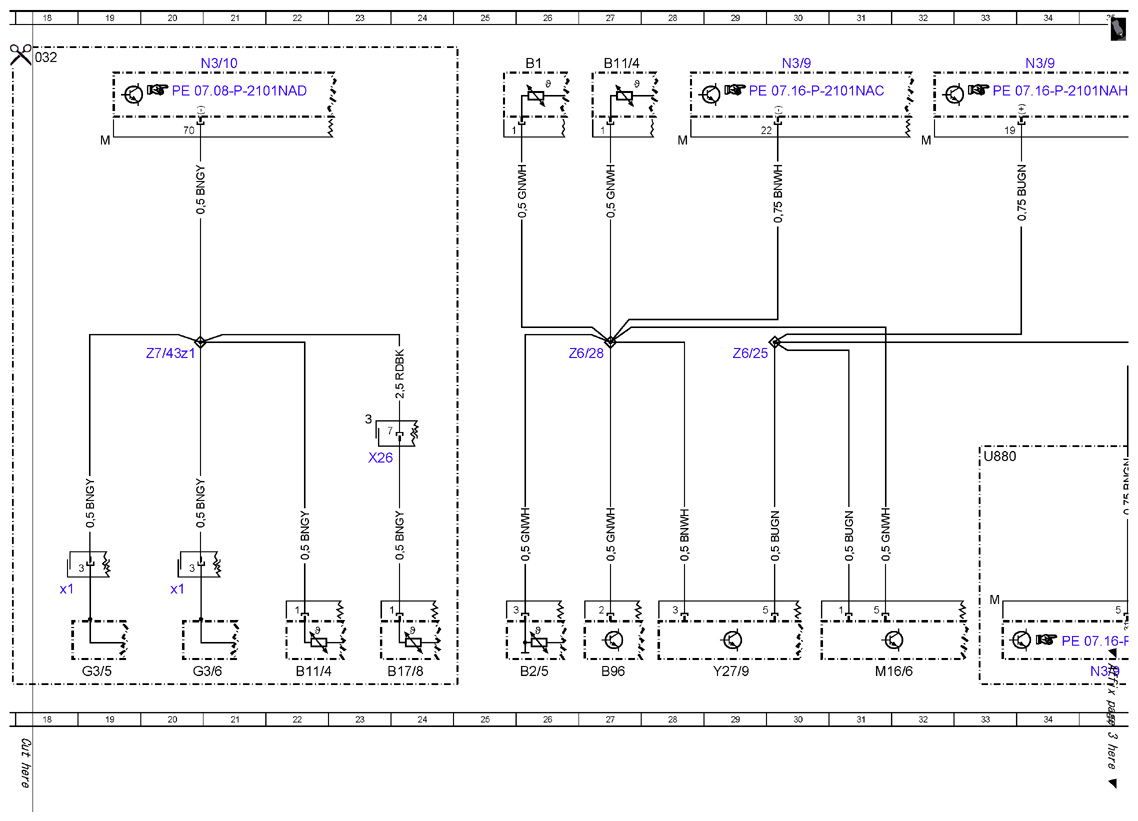

| B1 |
Engine oil temperature sensor |
26A |
| B11/4 |
Coolant temperature sensor |
22L |
| B11/4 |
Coolant temperature sensor |
27A |
| B17/8 |
Charge air temperature sensor |
24L |
| B2/5 |
Hot film mass air flow sensor |
26L |
| B2/6 |
Left hot film MAF sensor |
38A |
| B2/7 |
Right hot film MAF sensor |
39A |

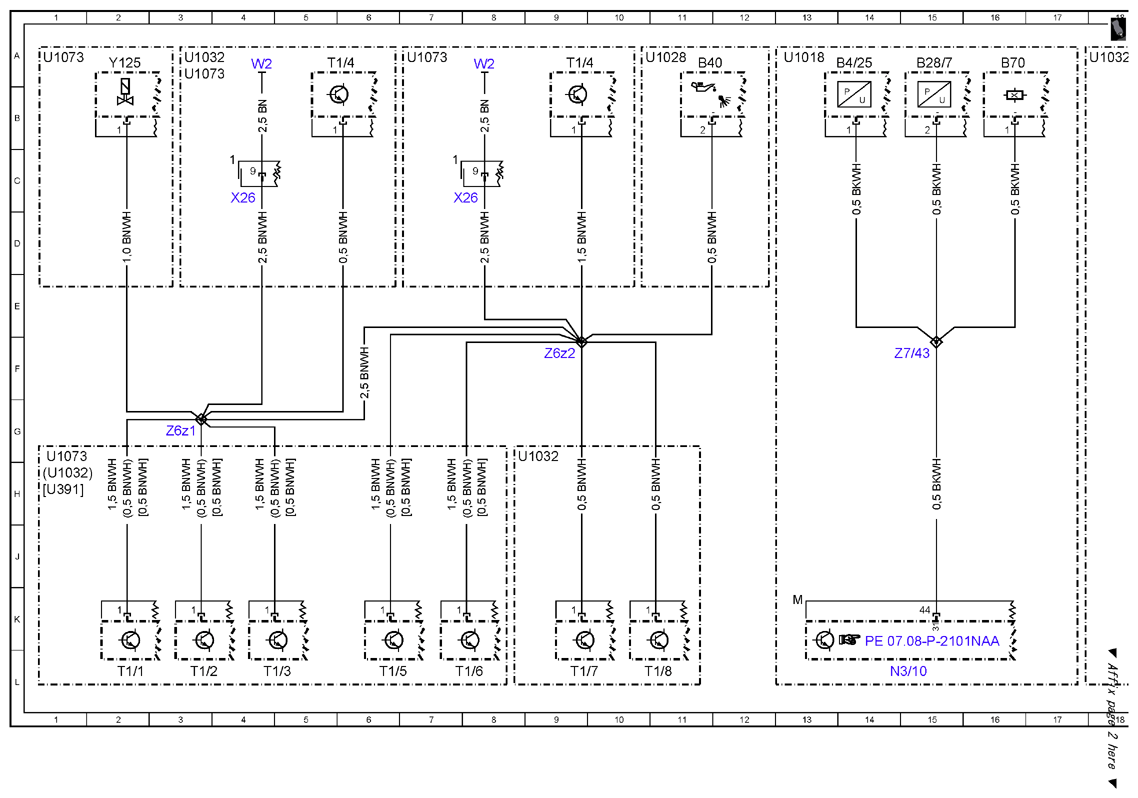

| B28/7 |
Pressure sensor downstream of throttle valve |
15A |
| B4/25 |
Fuel tank pressure and temperature sensor |
14A |
| B40 |
Oil sensor (oil level, temperature and quality) |
11A |
| B70 |
Crankshaft Hall sensor |
16A |
| B8/10 |
Outer left rear parking system distance sensor |
48L |
| B8/7 |
Outer right rear parking system distance sensor |
45L |
| B8/8 |
Inner right rear parking system distance sensor |
46L |
| B8/9 |
Inner left rear parking system distance sensor |
47L |
| B90 |
Exhaust gas recirculation cooling bypass flap Hall sensor |
42L |
| B96 |
Intake port shutoff Hall sensor |
27L |
| B96 |
Intake port shutoff Hall sensor |
36A |
| B96/1 |
Left intake port shutoff Hall sensor |
40L |
| B96/2 |
Right intake port shutoff Hall sensor |
41L |
| Code 220 |
PARKTRONIC |
43G |
| Code 233 |
DISTRONIC PLUS |
57J |
| Code 237 |
Active Blind Spot Assist |
57J |
| Code 489 |
AIRMATIC |
50A |
| Code 494 |
USA version |
38H |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
53J |
| Code B03 |
ECO start/stop function |
53J |
| Code B03 |
ECO start/stop function |
55J |
| Code B08 |
Horn (Asia) |
61G |
| E1/3 |
Left daytime running lamps headlamp |
71L |
| E2 |
Right front lamp unit |
66L |
| E2/3 |
Right daytime running lamps headlamp |
72L |
| E21 |
Center stop lamp |
74L |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
19L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
18K |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
20L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
20K |
| H2 |
Left fanfare horn |
62L |
| H2/1 |
Right fanfare horn |
63L |
| M13/11 |
Coolant run-on pump |
46A |
| M16/6 |
Throttle valve actuator |
41A |
| M16/6 |
Throttle valve actuator |
31L |
| M44 |
Charge air cooler circulation pump |
49A |
| N3/10 |
ME-SFI [ME] control unit |
14L |
| N3/10 |
ME-SFI [ME] control unit |
21A |
| N3/9 |
CDI control unit |
35L |
| N3/9 |
CDI control unit |
30A |
| N3/9 |
CDI control unit |
34A |
| N62 |
Parking system control unit |
51L |
| S62/42 |
Right engine hood contact switch |
55L |
| S62/43 |
Left engine hood contact switch |
54L |
| T1/1 |
Cylinder 1 ignition coil |
2L |
| T1/2 |
Cylinder 2 ignition coil |
3L |
| T1/3 |
Cylinder 3 ignition coil |
4L |
| T1/4 |
Cylinder 4 ignition coil |
5A |
| T1/4 |
Cylinder 4 ignition coil |
9A |
| T1/5 |
Cylinder 5 ignition coil |
6L |
| T1/6 |
Cylinder 6 ignition coil |
8L |
| T1/7 |
Cylinder 7 ignition coil |
9L |
| T1/8 |
Cylinder 8 ignition coil |
11L |
| U1018 |
Valid for gasoline engine 276 |
13A |
| U1028 |
Valid for engine 157 |
10A |
| U1032 |
Valid for engine 278 and 157 |
1H |
| U1032 |
Valid for engine 278 and 157 |
8G |
| U1032 |
Valid for engine 278 and 157 |
3A |
| U1032 |
Valid for engine 278 and 157 |
18A |
| U1032 |
Valid for engine 278 and 157 |
48A |
| U1073 |
Valid for gasoline engine 276.9 |
1G |
| U1073 |
Valid for gasoline engine 276.9 |
1A |
| U1073 |
Valid for gasoline engine 276.9 |
3A |
| U1073 |
Valid for gasoline engine 276.9 |
7A |
| U154 |
Valid for 166.0 |
43A |
| U154 |
Valid for 166.0 |
52A |
| U155 |
Valid for 166.8 |
43A |
| U225 |
Valid for all except China |
61H |
| U391 |
Valid for gasoline engine 276.8 |
1H |
| U391 |
Valid for gasoline engine 276.8 |
48A |
| U501 |
Valid for xenon headlamps |
64H |
| U679 |
Valid for version without xenon headlamps |
64G |
| U880 |
Valid for engine 642 |
33G |
| U880 |
Valid for engine 642 |
37A |
| U880 |
Valid for engine 642 |
55A |
| W2 |
Right front ground point at lamp unit |
4A |
| W2 |
Right front ground point at lamp unit |
8A |
| W29/8 |
Left D-pillar ground point |
76A |
| W29/9 |
Right D-pillar ground point |
75A |
| W52/11 |
Upper right front longitudinal member ground point |
54G |
| W8/1 |
Left tailgate ground point |
75L |
| W8/2 |
Right tailgate ground point |
76L |
| X174/4 |
Engine compartment/vehicle front electrical connector |
55H |
| X192/1 |
Coolant run-on pump electrical connector |
47C |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
57C |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
60C |
| X26 |
Interior and engine wiring harness electrical connector |
23G |
| X26 |
Interior and engine wiring harness electrical connector |
8C |
| X26 |
Interior and engine wiring harness electrical connector |
4C |
| X26/32 |
Engine compartment/front bumper electrical connector |
69J |
| X35/28 |
Rear bumper parking system electrical connector |
49J |
| Y125 |
Low-temperature circuit shutoff valve |
2A |
| Y137 |
High-temperature/low-temperature circuit switchover valve |
54A |
| Y27/9 |
Exhaust gas recirculation actuator |
29L |
| Y27/9 |
Exhaust gas recirculation actuator |
37L |
| Y3/8 |
Fully integrated transmission control unit |
57A |
| Z300/13 |
Connector sleeve / sensors |
39F |
| Z36/1 |
Rear parking system sensors ground line connector sleeve |
47F |
| Z6/25 |
Sensor voltage supply connector sleeve |
29F |
| Z6/28 |
Sensor ground connector sleeve |
27F |
| Z6/99 |
Transmission circuit 31 connector sleeve |
59D |
| Z6z1 |
Circuit 31 connector sleeve |
3G |
| Z6z2 |
Circuit 31 connector sleeve |
9F |
| Z7/43 |
Sensor ground connector sleeve |
15F |
| Z7/43z1 |
Sensor ground line connector sleeve |
20F |
