| A0 |
Color code key |
32L |
| CAN C |
Drive train CAN |
11K |
| CAN C |
Drive train CAN |
19K |
| CAN C |
Drive train CAN |
27K |
| CAN C |
Drive train CAN |
15K |
| CAN C |
Drive train CAN |
24K |
| Code 430 |
On-road/off-road package |
17D |
| Code 489 |
AIRMATIC |
17D |
| Code B63 |
AMG eSound |
21D |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
21D |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
5D |
| N118 |
Fuel pump control unit |
27L |
| N127 |
Drivetrain control unit |
23L |
| N15/7 |
Transfer case control unit |
19L |
| N3/10 |
ME-SFI [ME] control unit |
15L |
| N3/10 |
ME-SFI [ME] control unit |
11L |
| N3/9 |
CDI control unit |
11L |
| N40/1 |
Engine sound control unit |
23L |
| U1018 |
Valid for gasoline engine 276 |
9E |
| U1032 |
Valid for engine 278 and 157 |
13D |
| U12 |
Valid for left-hand drive vehicles |
30D |
| U13 |
Valid for right-hand drive vehicles |
30D |
| U74 |
Valid for diesel engines |
26D |
| U75 |
Valid for gasoline engines |
26D |
| U880 |
Valid for engine 642 |
9D |
| U948 |
Valid for diesel engine 651 |
9D |
| U974 |
Not valid for hybrid drive |
1D |
| W15/1 |
Right footwell ground point |
30F |
| W15/5 |
Left front footwell ground point |
30G |

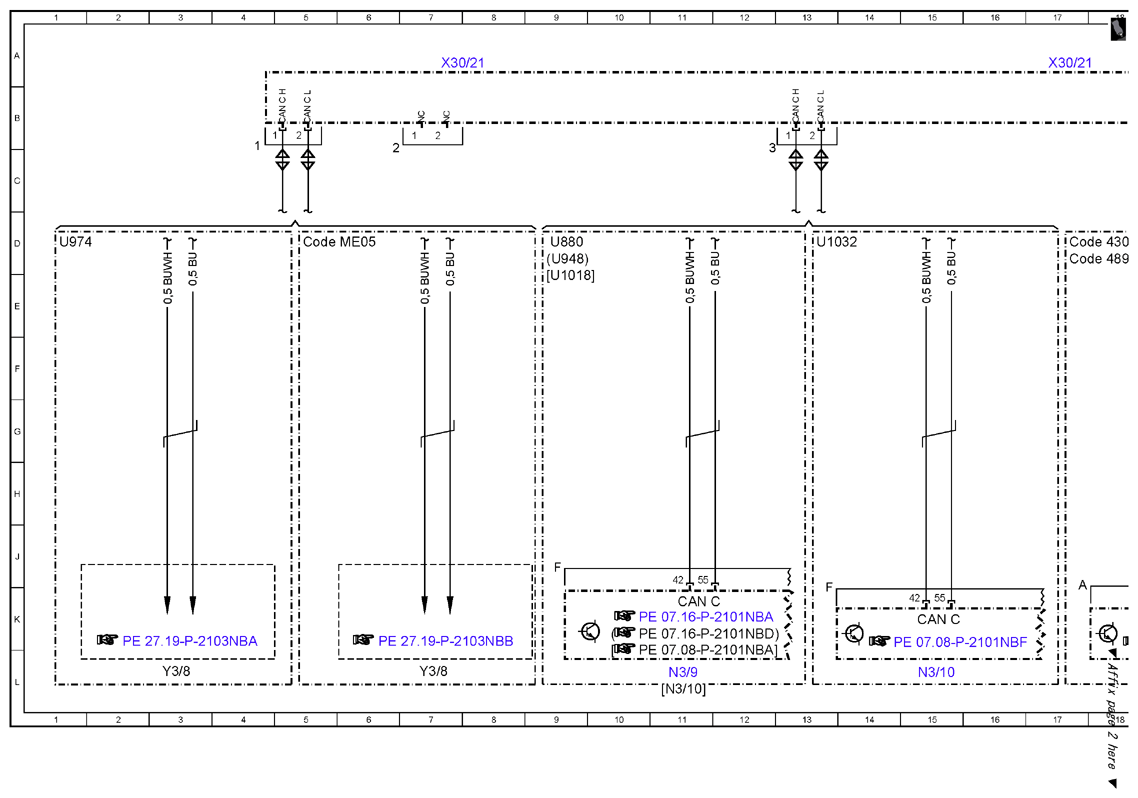

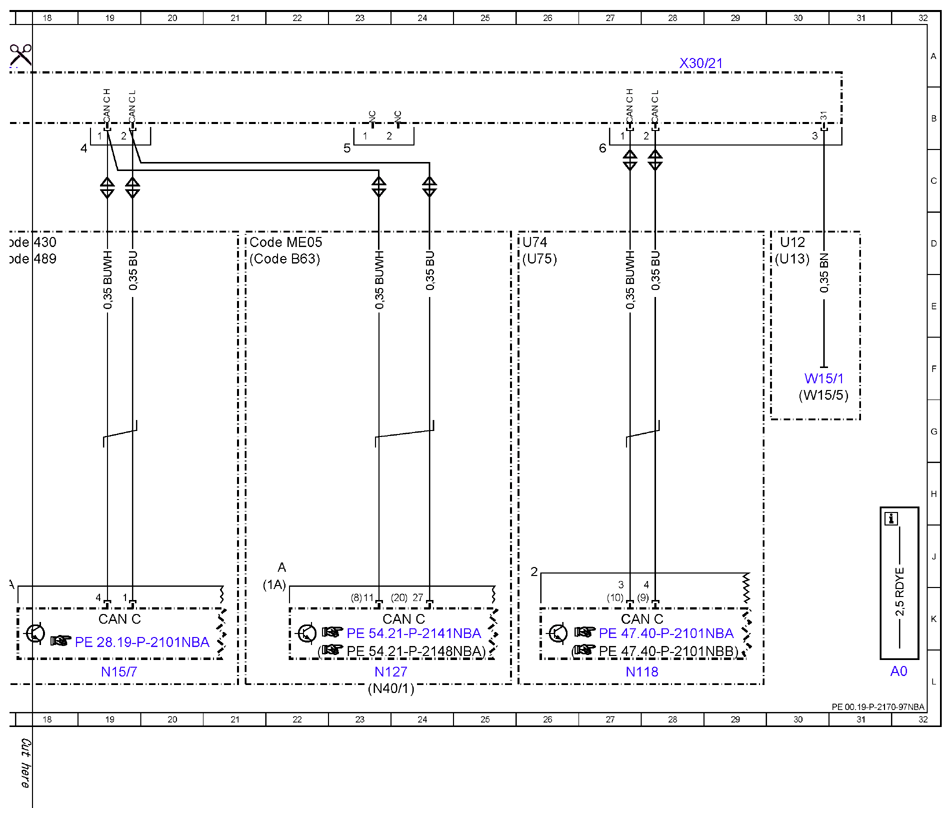

| X30/21 |
Drive train CAN voltage distributor electrical connector |
7A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
17A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
28A |
| Y3/8 |
Fully integrated transmission control unit |
7L |
| Y3/8 |
Fully integrated transmission control unit |
3L |
