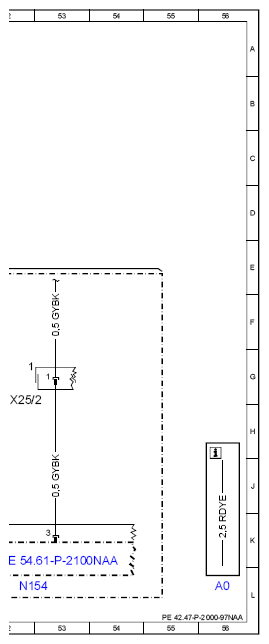

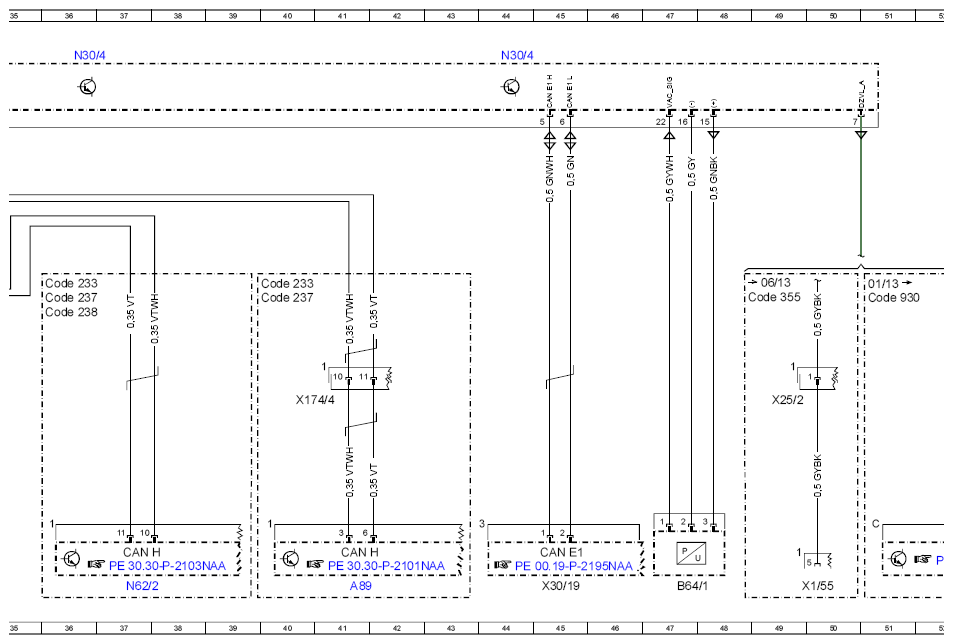

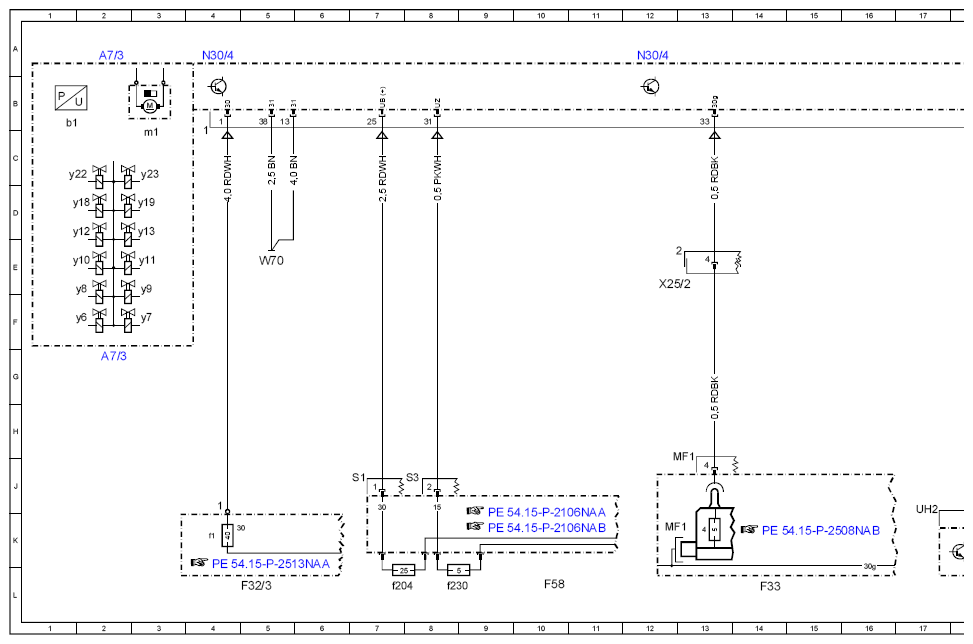

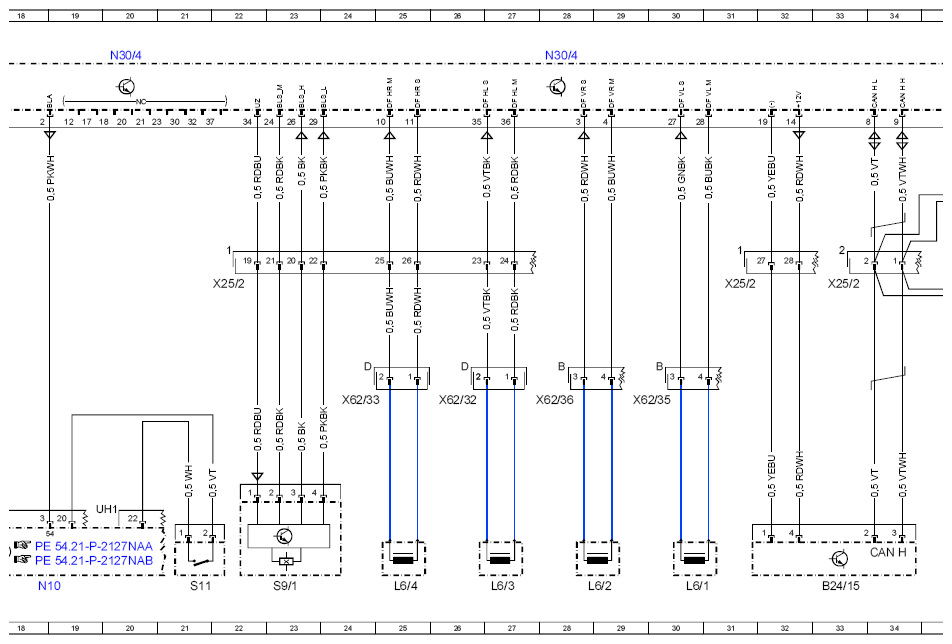

Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 Electronic-Stability-Program (ESP) control unit N30/4
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 56L |
| A7/3 | Traction system hydraulic unit | 2G |
| A7/3 | Traction system hydraulic unit | 2A |
| A7/3b1 | Front axle brake pressure sensor | 1B |
| A7/3m1 | High pressure and return pump | 3C |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 2E |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 3E |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 2D |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 3D |
| A7/3y18 | Front axle switchover valve | 2D |
| A7/3y19 | Rear axle switchover valve | 3D |
| A7/3y22 | Front axle intake ball valve | 1C |
| A7/3y23 | Rear axle intake ball valve | 3C |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 2F |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 3F |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 2E |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 3E |
| A89 | DISTRONIC electric controller unit | 41L |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 33L |
| B64/1 | Brake vacuum sensor | 47L |
| CAN E1 | Chassis CAN 1 | 45K |
| CAN H | Vehicle dynamics CAN | 34K |
| CAN H | Vehicle dynamics CAN | 37K |
| CAN H | Vehicle dynamics CAN | 41K |
| Code 233 | DISTRONIC PLUS | 36E |
| Code 233 | DISTRONIC PLUS | 40E |
| Code 237 | Active Blind Spot Assist | 36F |
| Code 237 | Active Blind Spot Assist | 40F |
| Code 238 | Active Lane Keeping Assist | 36F |
| Code 355 | Preinstallation for navigation retrofit | 48F |
| Code 930 | Tachograph preinstallation | 51F |
| F32/3 | Engine compartment prefuse box | 5L |
| F32/3f1 | Fuse 1 | 4K |
| F33 | Battery compartment prefuse box | 14L |
| F33MF1 | Multiple fuse 1 | 12K |
| F58 | Engine compartment fuse and relay module | 10L |
| F58f204 | Fuse 204 | 7L |
| F58f230 | Fuse 230 | 8L |
| L6/1 | Left front axle rpm sensor | 30L |
| L6/2 | Right front axle rpm sensor | 28L |
| L6/3 | Left rear axle rpm sensor | 27L |
| L6/4 | Right rear axle rpm sensor | 25L |
| N10 | SAM control unit | 18L |
| N154 | Digital tachograph control unit | 52L |
| N30/4 | Electronic Stability Program control unit | 4A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 36A |
| N30/4 | Electronic Stability Program control unit | 44A |
| N62/2 | Video and radar sensor system control unit | 37L |
| S11 | Brake fluid level switch | 21L |
| S9/1 | Stop lamp switch | 23L |
| W70 | Electronic Stability Program ground point | 5E |
| X1/55 | External navigation electrical connector | 50L |
| X174/4 | Engine compartment/vehicle front electrical connector | 41H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 12E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 22E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 49H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 31E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 33E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 52H |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 45L |
| X62/32 | Rear axle electrical connector, left distributor | 26H |
| X62/33 | Rear axle electrical connector, right distributor | 24H |
| X62/35 | BWI [BBV]/rpm left front axle electrical connector | 30H |
| X62/36 | BWI [BBV]/rpm right front axle electrical connector | 28H |
