Overview of system components, hybrid drive system - GF08.30-P-9999FLH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.952 in MODEL 212.095 up to model year 2014
ENGINE 651.924 in MODEL 212.098/298 up to model year 2014

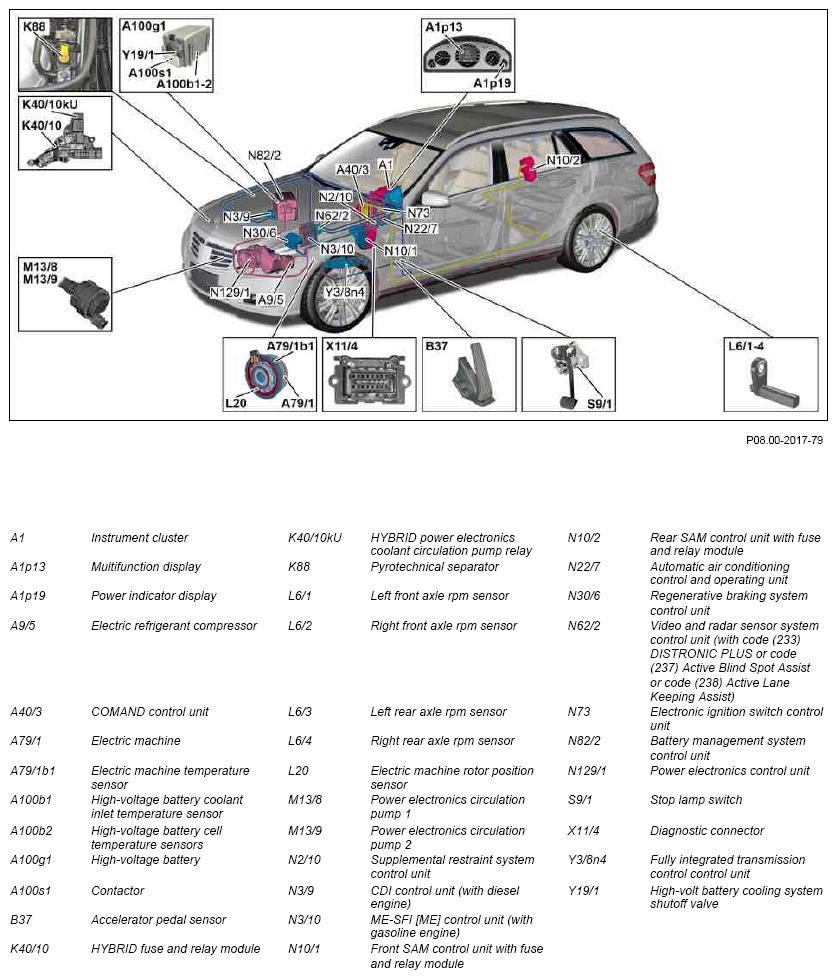

Vehicle phantom view

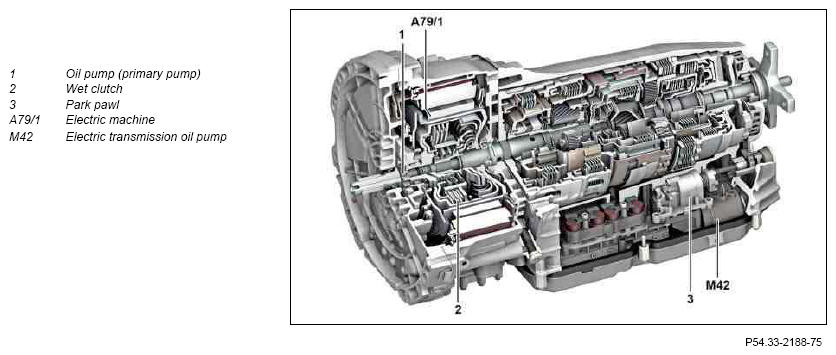

Sectional view of automatic transmission
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Component description for CDI control unit | ENGINE 651.924 in MODEL 212.098/298 up to model year 2014 N3/9 |
GF07.16-P-6000OLH | |
| Component description for ME-SFI (ME) control unit | ENGINE 276.952 in MODEL 212.095 up to model year 2014 N3/10 |
GF07.61-P-6000MMO | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001FLH | |
| Component description for fully integrated transmission control unit | Y38n4 | GF27.60-P-5165AHO | |
| Component description for video and radar sensor system control unit | N62/2 | GF30.30-P-3304FL | |
| Component description for regenerative braking system control unit | N30/6 | GF42.22-P-1100FLH | |
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012FLH | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for COMAND controller unit | MODEL 212.095 as of 6/1/12, 212.098/298 up to model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 212.095/098/298 up to model year 2014 with CODE 512 (COMAND APS with DVD changer) MODEL 212.095/298, 212.098212.098 as of 6/1/12 up to model year 2014 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136FLB | |
| Component description for automatic air conditioning control and operating unit | MODEL 212.095/098/298 up to model year 2014 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLB | |
| Component description for electric refrigerant compressor | A9/5 | GF83.55-P-2110FLH | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Table of contents for function description - hybrid drive system | GF08.30-P-0999FLH |
