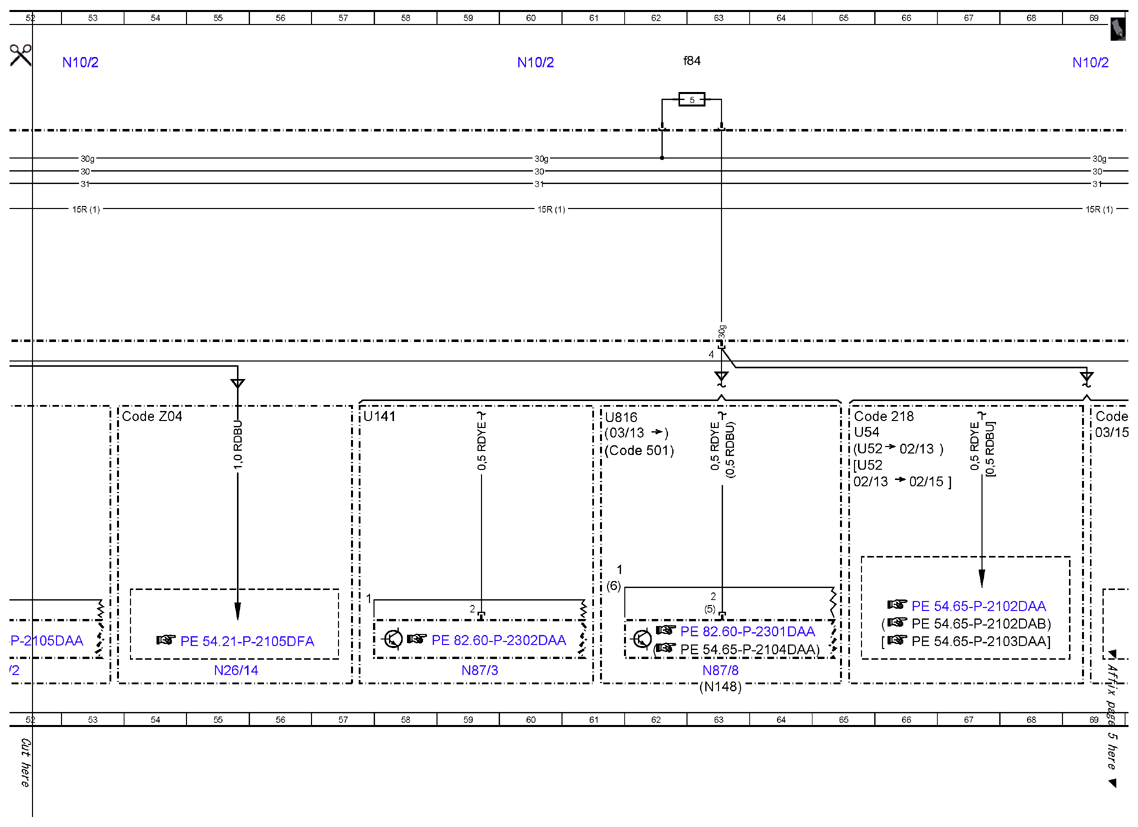

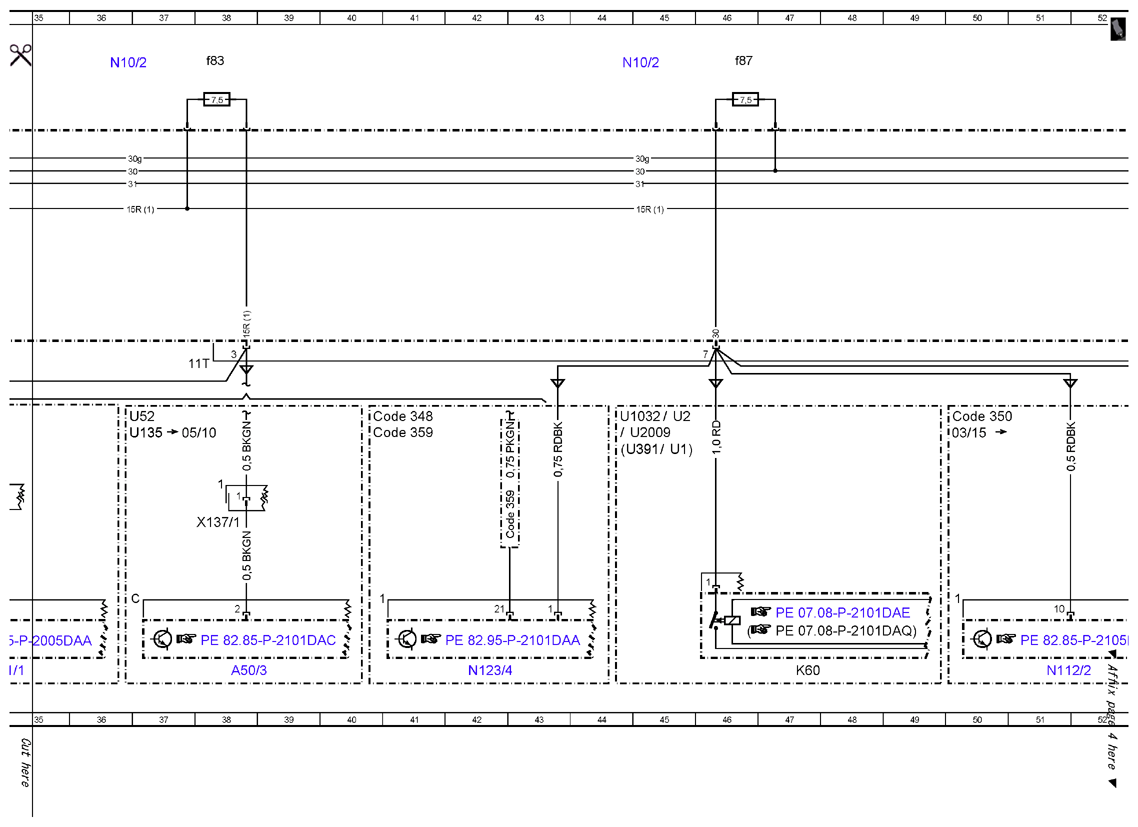

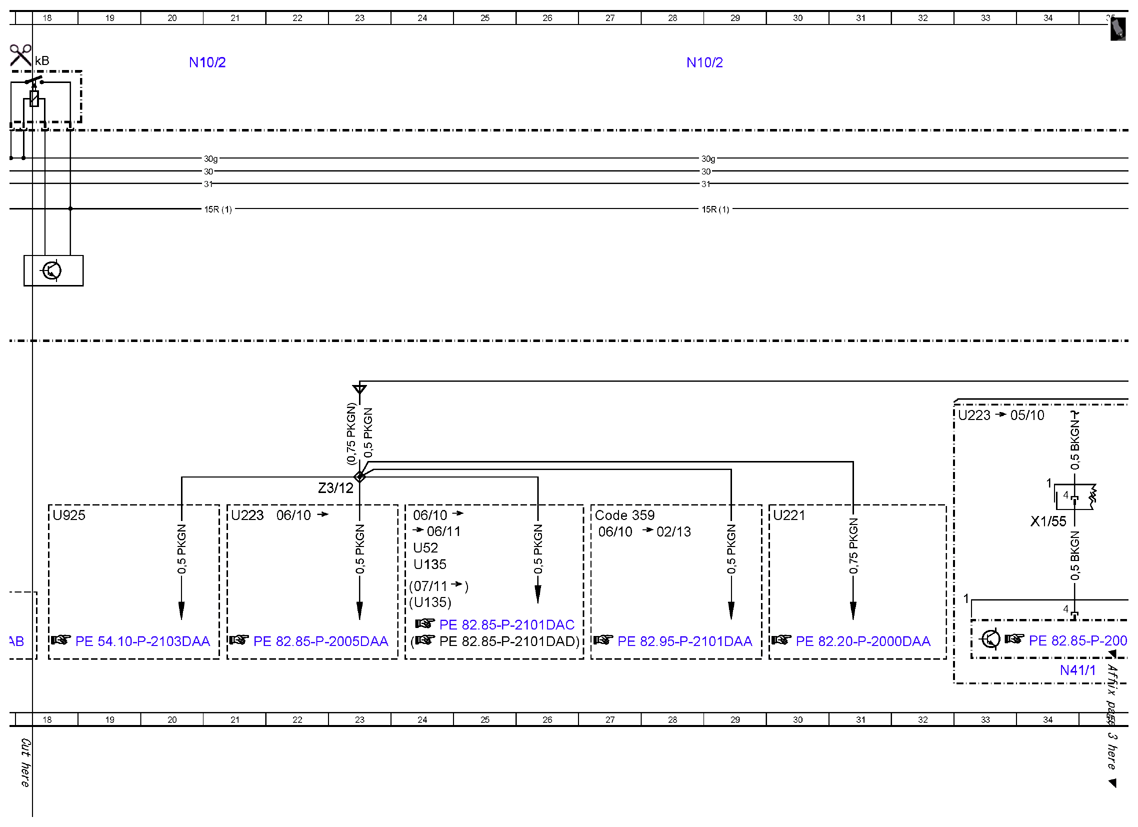

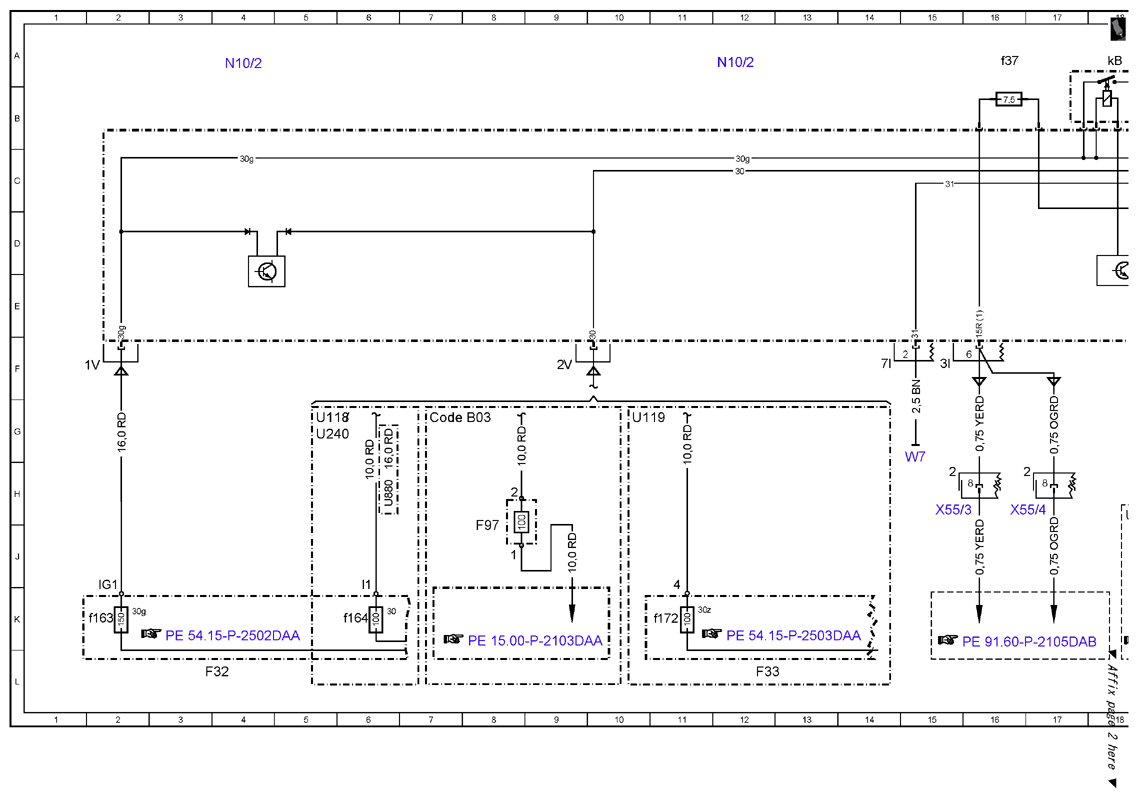

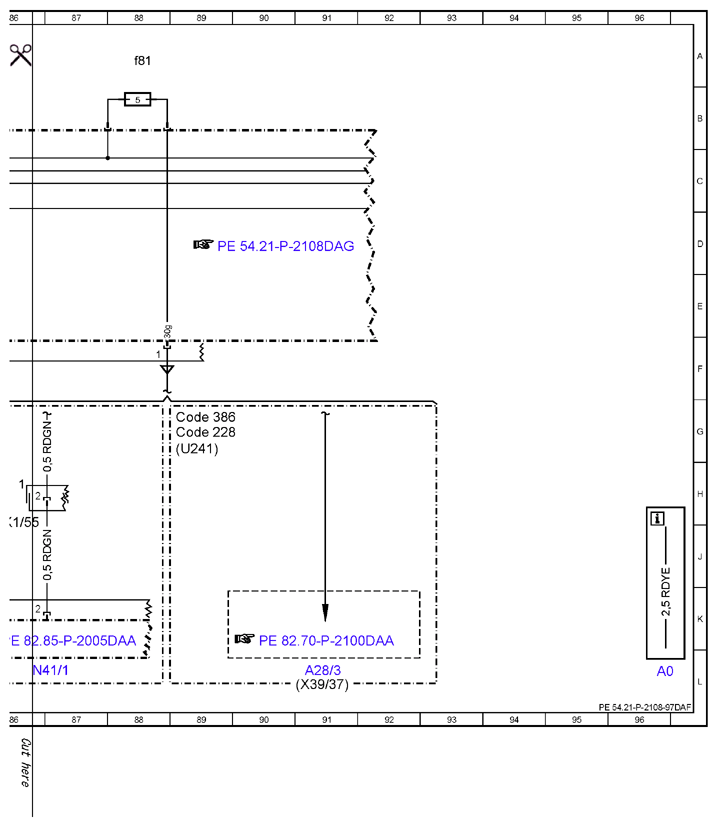

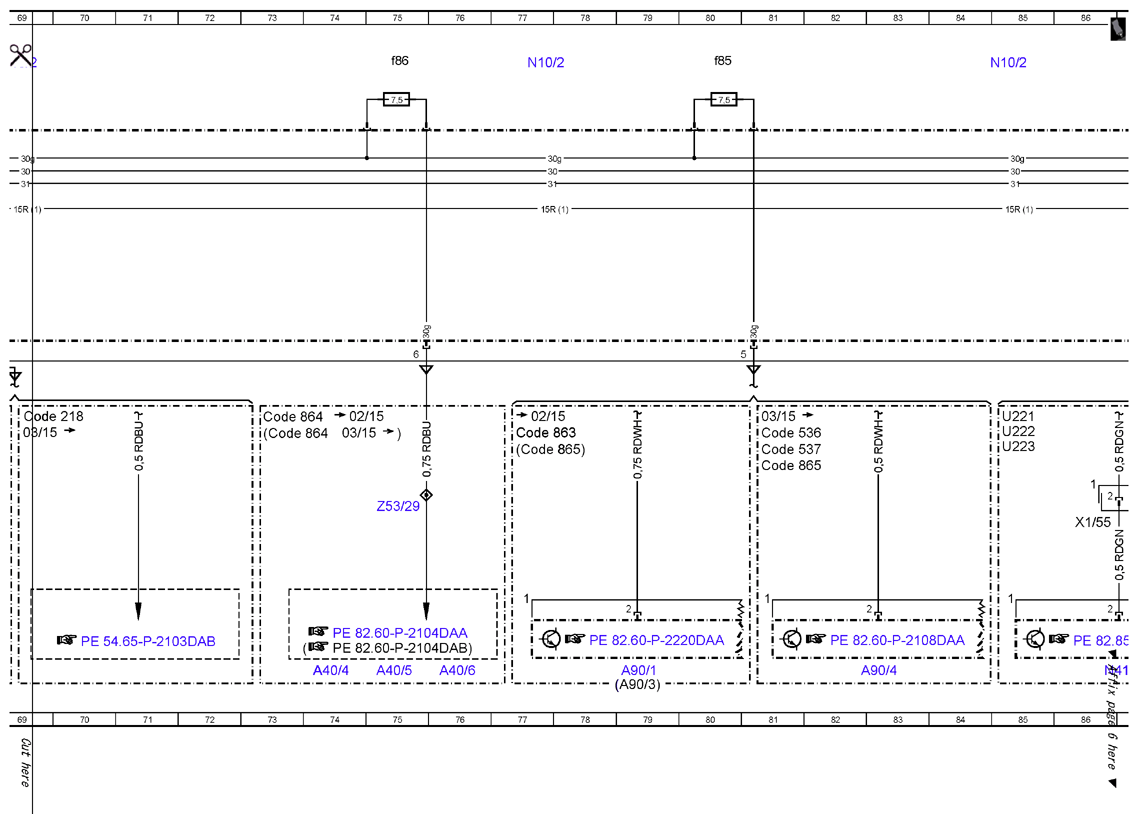

Wiring diagram / rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-97DAF
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Sheet 6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 91L |
| A40/4 | DVD player | 74L |
| A40/5 | Left rear display | 75L |
| A40/6 | Right rear display | 76L |
| A50/3 | Electronic Toll Collection control unit | 38L |
| A90/1 | TV tuner (analog/digital) | 79L |
| A90/3 | TV digital tuner | 79L |
| A90/4 | Tuner unit | 83L |
| Code 218 | Backup camera | 65G |
| Code 218 | Backup camera | 69G |
| Code 228 | Stationary heater | 89G |
| Code 348 | Emergency call/assistance system | 40G |
| Code 350 | E-call emergency call system Europe Generation 2 | 50G |
| Code 359 | TELEAID emergency call system | 27H |
| Code 359 | TELEAID emergency call system | 40G |
| Code 359 | TELEAID emergency call system | 42H |
| Code 386 | Mobile phone preinstallation with universal interface | 89G |
| Code 501 | 360 degree camera | 61G |
| Code 536 | SIRIUS satellite radio | 81G |
| Code 537 | Digital radio | 81G |
| Code 863 | Digital/analog TV tuner | 77G |
| Code 864 | Rear compartment entertainment | 73G |
| Code 864 | Rear compartment entertainment | 73G |
| Code 865 | TV tuner (digital) | 77G |
| Code 865 | TV tuner (digital) | 81H |
| Code B03 | ECO start/stop function | 7G |
| Code Z04 | High protection B4 | 53G |
| F32 | Front electrical prefuse box | 4L |
| F32f163 | Prefuse 163 | 2K |
| F32f164 | Prefuse 164 | 6K |
| F33 | Rear prefuse box | 12L |
| F33f172 | Prefuse 172 | 11K |
| F97 | Rear SAM control unit with fuse and relay module circuit 30 fuse | 8J |
| K60 | Coolant circulation pump relay | 47L |
| N10/2 | Rear SAM control unit with fuse and relay module | 28A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 36A |
| N10/2 | Rear SAM control unit with fuse and relay module | 44A |
| N10/2 | Rear SAM control unit with fuse and relay module | 53A |
| N10/2 | Rear SAM control unit with fuse and relay module | 60A |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 77A |
| N10/2 | Rear SAM control unit with fuse and relay module | 69A |
| N10/2 | Rear SAM control unit with fuse and relay module | 85A |
| N10/2f37 | Fuse 37 | 16A |
| N10/2f81 | Fuse 81 | 88A |
| N10/2f83 | Fuse 83 | 38A |
| N10/2f84 | Fuse 84 | 62A |
| N10/2f85 | Fuse 85 | 80A |
| N10/2f86 | Fuse 86 | 75A |
| N10/2f87 | Fuse 87 | 46A |
| N10/2kB | Circuit 15R relay (1) | 18A |
| N112/2 | Telematics services communication module | 51L |
| N123/4 | Emergency call system control unit | 42L |
| N148 | 360° camera control unit | 63L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 55L |
| N41/1 | Navigation processor | 34L |
| N41/1 | Navigation processor | 86L |
| N87/3 | Digital Audio Broadcasting control unit | 59L |
| N87/8 | SDAR control unit / high definition tuner | 63L |
| U1 | Valid for USA | 45G |
| U1032 | Valid for engine 278 and 157 | 44G |
| U118 | Valid for front battery | 5G |
| U119 | Valid for rear battery | 10G |
| U135 | Valid for Electronic Toll Collection | 36G |
| U135 | Valid for Electronic Toll Collection | 24J |
| U135 | Valid for Electronic Toll Collection | 24K |
| U141 | Valid for Digital Audio Broadcasting | 57G |
| U2 | Valid for all except USA | 45G |
| U2009 | Not valid for model 212.076/276 | 44G |
| U221 | Valid for China | 85G |
| U221 | Valid for China | 30H |
| U222 | Valid for Korea | 85G |
| U223 | Valid for external navigation | 33G |
| U223 | Valid for external navigation | 85G |
| U223 | Valid for external navigation | 21H |
| U240 | Valid for all except ECO start/stop function | 5G |
| U241 | Valid for comfort telephony without compensator | 89G |
| U391 | Valid for gasoline engine 276.8 | 44G |
| U52 | Valid for Japan | 36G |
| U52 | Valid for Japan | 24J |
| U52 | Valid for Japan | 65G |
| U52 | Valid for Japan | 65H |
| U54 | Valid for all except Japan | 65G |
| U816 | Valid for satellite digital audio radio (SDAR) | 61G |
| U880 | Valid for diesel engine 642 | 6H |
| U925 | Valid for 115V socket | 18H |
| W7 | Right rear wheel well ground point | 15G |
| X1/55 | External navigation electrical connector | 34J |
| X1/55 | External navigation electrical connector | 86J |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 38J |
| X39/37 | Mobile phone electrical connector | 91L |
| X55/3 | Driver seat connector block | 15H |
| X55/4 | Front passenger seat connector block | 17H |
| Z3/12 | Circuit 15R connector sleeve | 23H |
| Z53/29 | Rear entertainment system circuit 30 connector sleeve | 75H |
