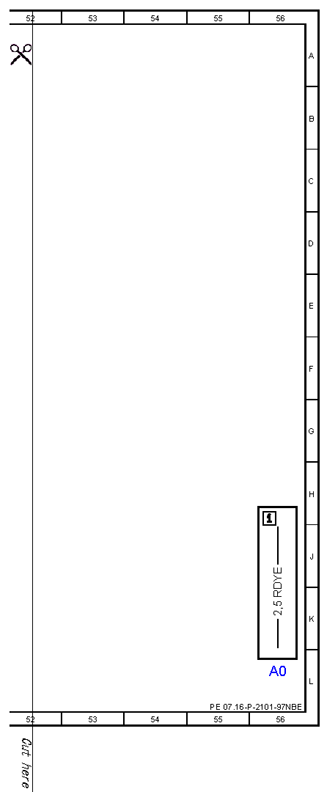

| A0 |
Color code key |
56L |
| B1 |
Engine oil temperature sensor |
16L |
| B107 |
Coolant pump temperature sensor |
14L |
| B11/4 |
Coolant temperature sensor |
17L |
| B17/11 |
Temperature sensor upstream of charge air cooler |
13L |
| B17/8 |
Charge air temperature sensor |
9L |
| B2/5 |
Hot film mass air flow sensor |
38L |
| B2/5b1 |
Intake air temperature sensor |
39L |
| B28/5 |
Pressure sensor downstream of air filter |
26L |
| B28/8 |
Differential pressure sensor (DPF) |
22L |
| B4/6 |
Fuel high-pressure sensor |
35L |
| B5/1 |
Boost pressure sensor |
28L |
| B5/4 |
Low-pressure turbocharger boost pressure sensor |
20L |
| B50 |
Fuel temperature sensor |
11L |
| B6/1 |
Camshaft Hall sensor |
33L |
| B60 |
Exhaust pressure sensor |
24L |
| B70 |
Crankshaft Hall sensor |
36L |
| B90 |
Exhaust gas recirculation cooling bypass flap Hall sensor |
31L |
| Code 474 |
Diesel particulate filter |
21G |
| Code 494 |
USA version |
11G |
| Code 494 |
USA version |
29G |
| M16/6 |
Throttle valve actuator |
47L |
| M55 |
Intake port shutoff actuator motor |
42L |

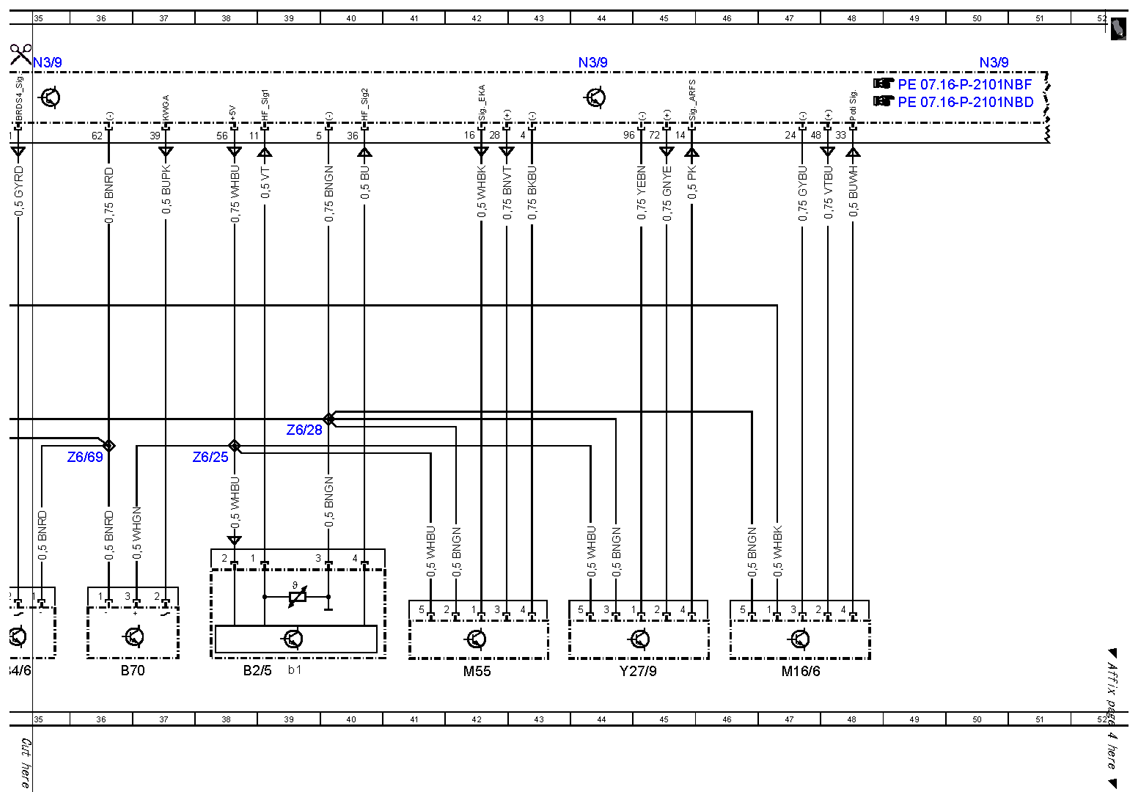

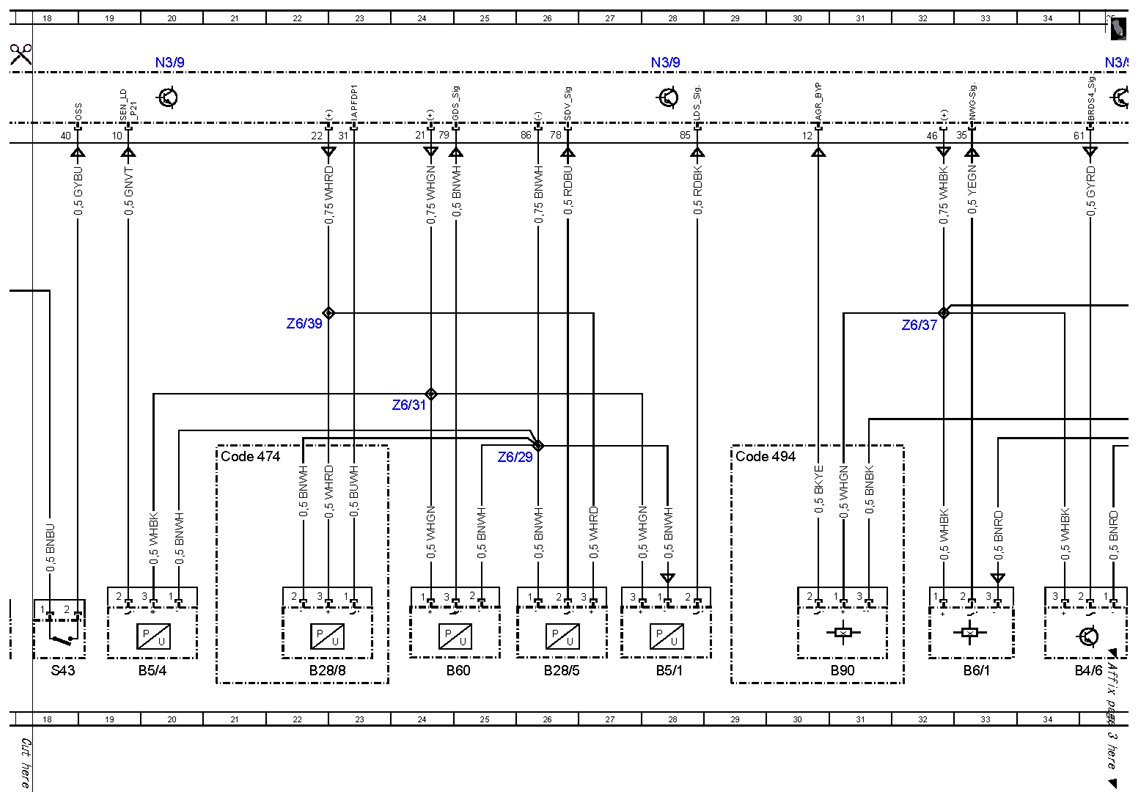

| N3/9 |
CDI control unit |
4A |
| N3/9 |
CDI control unit |
12A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
35A |
| N3/9 |
CDI control unit |
44A |
| N3/9 |
CDI control unit |
50A |
| S43 |
Oil level check switch |
18L |
| Y27/9 |
Exhaust gas recirculation actuator |
44L |

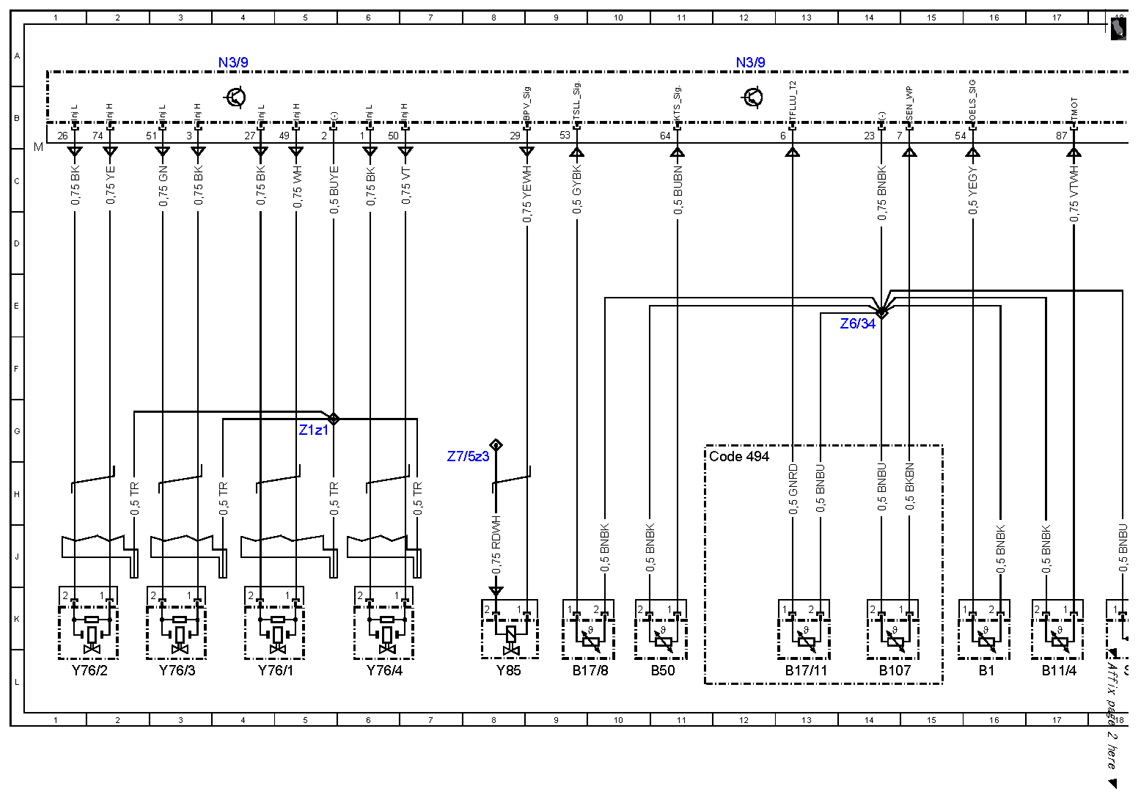

| Y76/1 |
Cylinder 1 fuel injector |
4L |
| Y76/2 |
Cylinder 2 fuel injector |
1L |
| Y76/3 |
Cylinder 3 fuel injector |
3L |
| Y76/4 |
Cylinder 4 fuel injector |
6L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
8L |
| Z1z1 |
Fuel injector shielding connector sleeve |
5G |
| Z6/25 |
Sensor voltage supply connector sleeve |
38G |
| Z6/28 |
Sensor ground connector sleeve |
39G |
| Z6/29 |
Sensor ground connector sleeve |
25G |
| Z6/31 |
Sensor voltage supply connector sleeve |
24G |
| Z6/34 |
Sensor ground connector sleeve |
14E |
| Z6/37 |
Sensor voltage supply connector sleeve |
32E |
| Z6/39 |
Sensor voltage supply connector sleeve |
22E |
| Z6/69 |
Ground connection connector sleeve |
36G |
| Z7/5z3 |
Circuit 87 connector sleeve |
8G |
