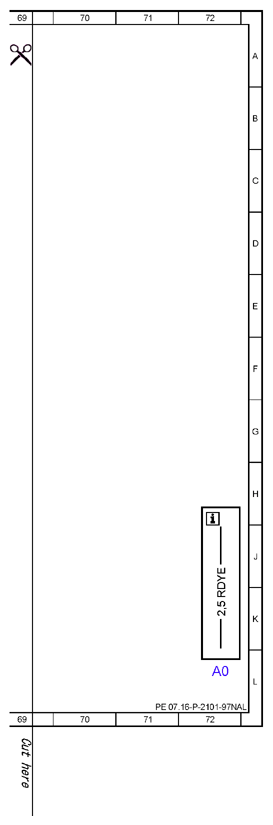

| A0 |
Color code key |
72L |
| B16/15 |
Temperature sensor upstream of SCR catalytic converter |
58L |
| B37 |
Accelerator pedal sensor |
51L |
| CAN C |
Drive train CAN |
14K |
| CAN C |
Drive train CAN |
11K |
| CAN E1 |
Chassis CAN 1 |
20K |
| Code B03 |
ECO start/stop function |
8H |
| Code U42 |
BlueTEC® diesel exhaust treatment |
57A |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
57A |
| F32/3 |
Engine compartment prefuse box |
45L |
| F32/3f6 |
Fuse 6 |
44K |
| F58 |
Engine compartment fuse and relay module |
2L |
| F58 |
Engine compartment fuse and relay module |
29L |
| F58 |
Engine compartment fuse and relay module |
32L |
| F58f213 |
Fuse 213 |
2L |
| F58f215 |
Fuse 215 |
33L |
| F58f216 |
Fuse 216 |
30L |
| F58f217 |
Fuse 217 |
31L |
| M4/7 |
Fan motor |
48L |

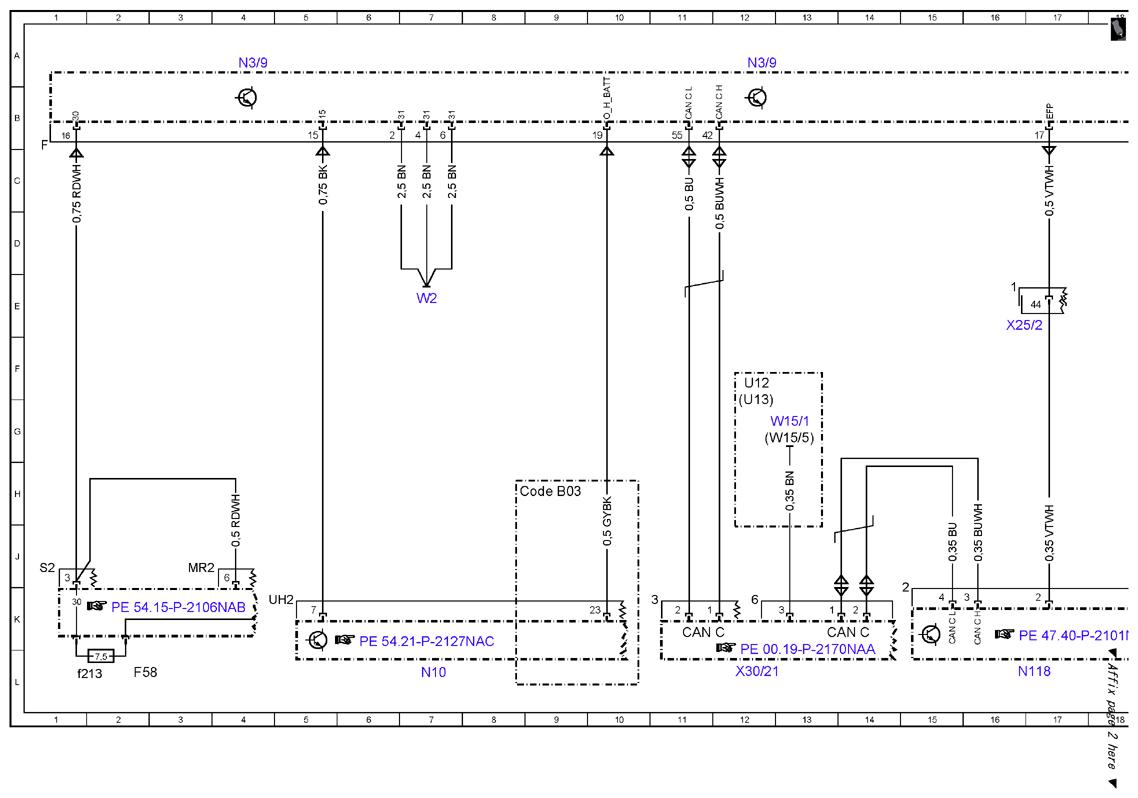

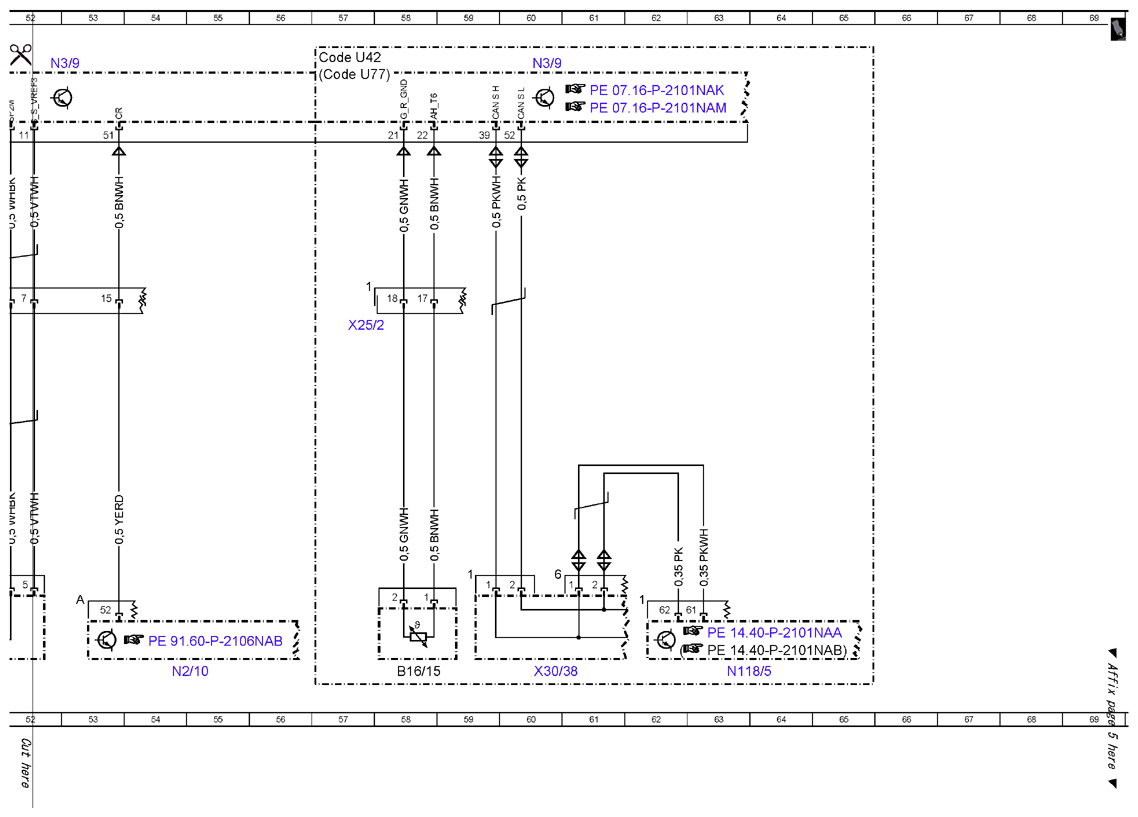

| N10 |
SAM control unit |
7L |
| N118 |
Fuel pump control unit |
17L |
| N118/5 |
AdBlue® control unit |
63L |
| N2/10 |
Supplemental restraint system control unit |
54L |
| N3/9 |
CDI control unit |
4A |
| N3/9 |
CDI control unit |
12A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
36A |
| N3/9 |
CDI control unit |
44A |
| N3/9 |
CDI control unit |
52A |
| N3/9 |
CDI control unit |
60A |
| U12 |
Valid for left-hand drive vehicles |
12F |
| U13 |
Valid for right-hand drive vehicles |
12G |
| U591 |
Not valid for trailer hitch |
22H |
| U960 |
Valid for radiator shutters |
22H |
| W15/1 |
Right footwell ground point |
13G |
| W15/5 |
Left front footwell ground point |
13G |
| W2 |
Right front ground point at lamp unit |
28G |
| W2 |
Right front ground point at lamp unit |
7E |
| W2/1 |
Right front ground point |
48H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
16E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
50E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
57E |
| X26/31 |
Engine/engine compartment electrical connector |
35G |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
20L |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
12L |
| X30/38 |
Potential distributor electrical connector (CAN I) |
60L |

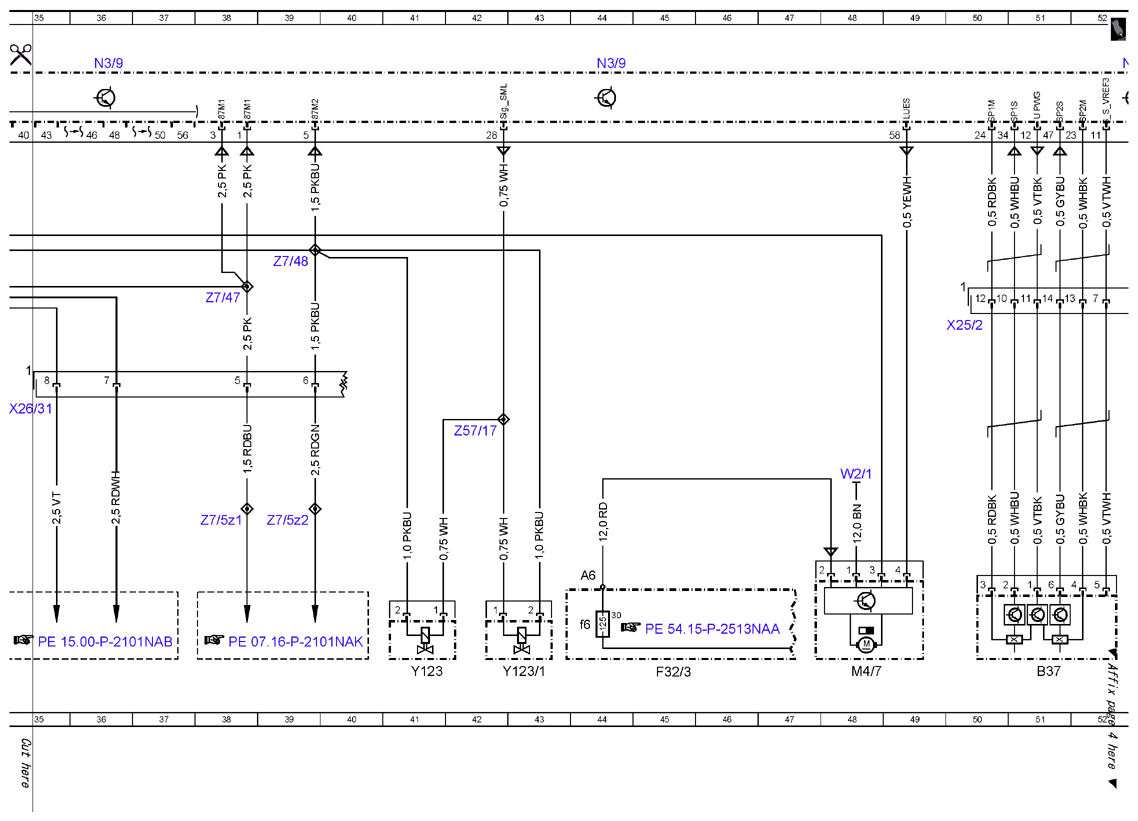

| Y123 |
Left switchable engine mount |
41L |
| Y123/1 |
Right switchable engine mount |
43L |

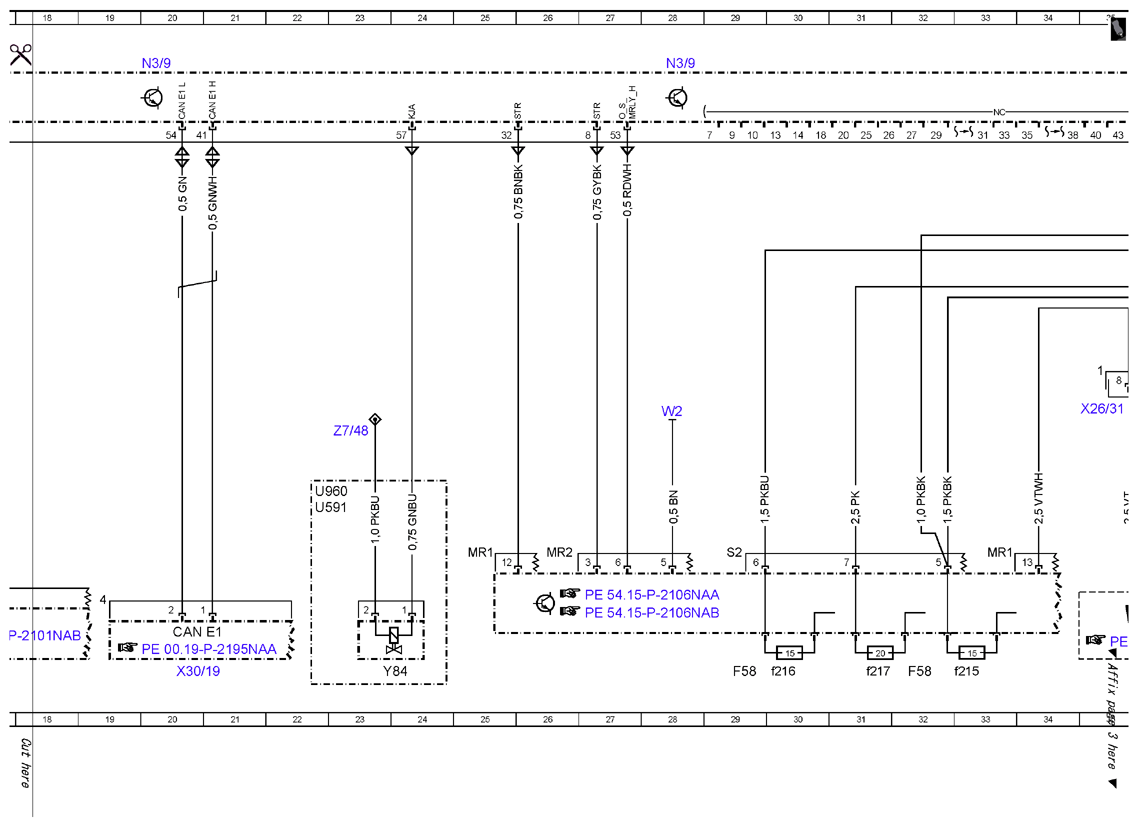

| Y84 |
Radiator shutters actuator |
23L |
| Z57/17 |
Engine mount connector sleeve in engine compartment |
42G |
| Z7/47 |
Circuit 87D1 connector sleeve |
38E |
| Z7/48 |
Circuit 87D2 connector sleeve |
23G |
| Z7/48 |
Circuit 87D2 connector sleeve |
39D |
| Z7/5z1 |
Circuit 87 connector sleeve |
38H |
| Z7/5z2 |
Circuit 87 connector sleeve |
39H |
