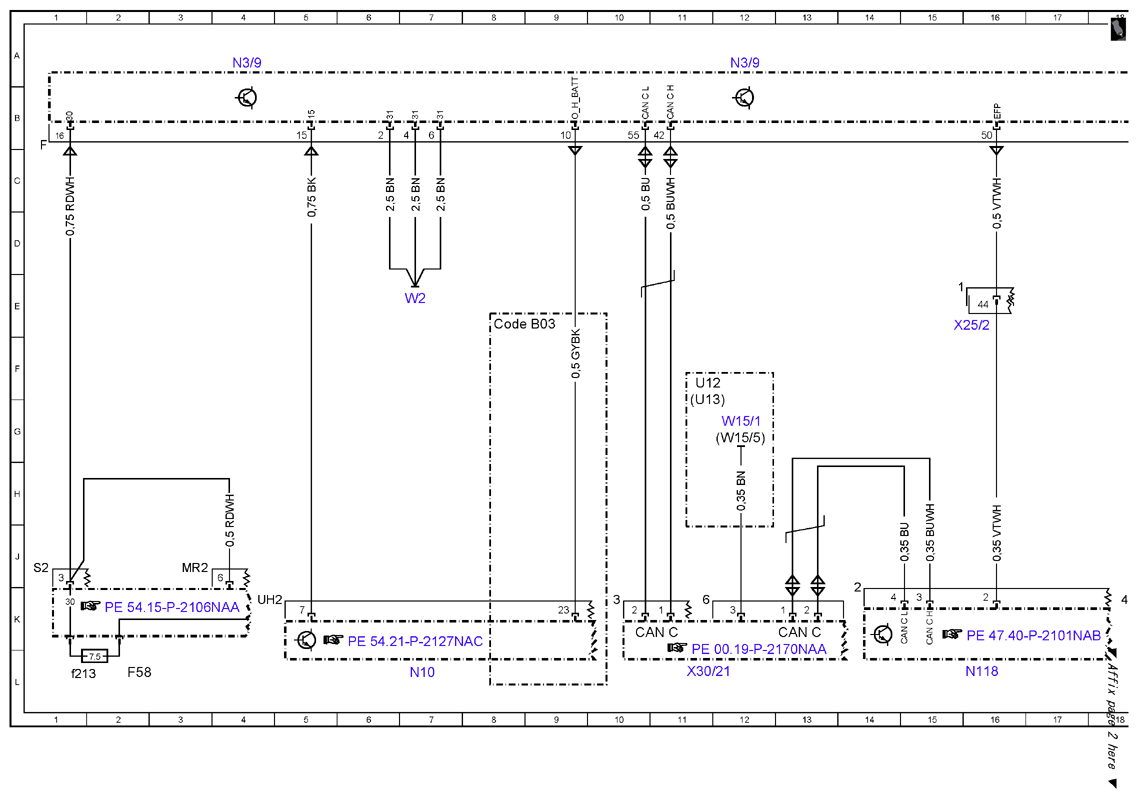

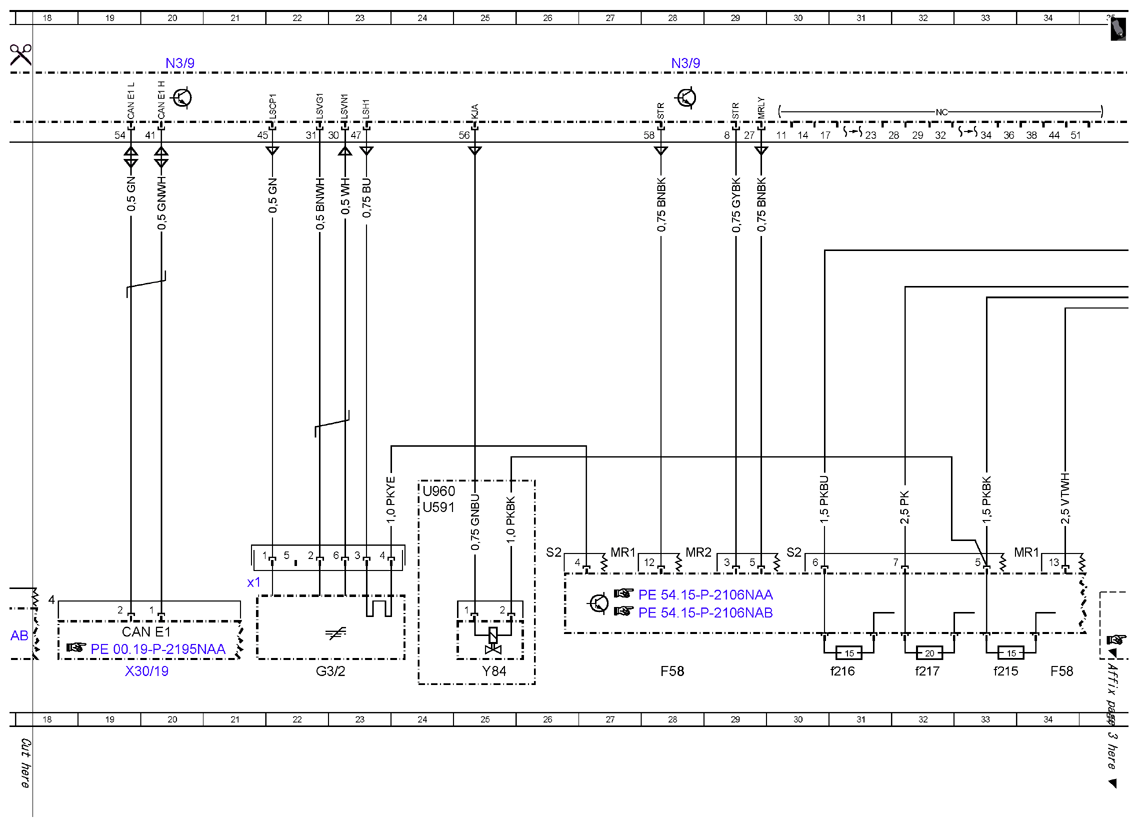

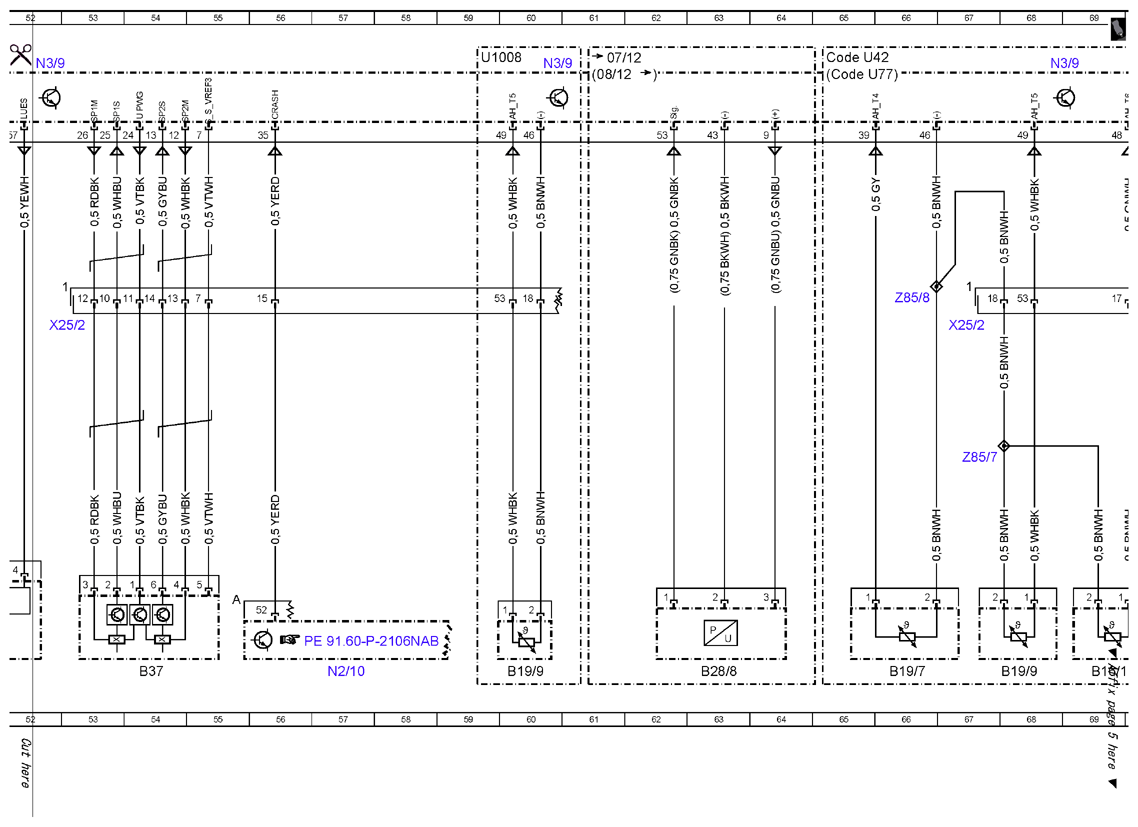

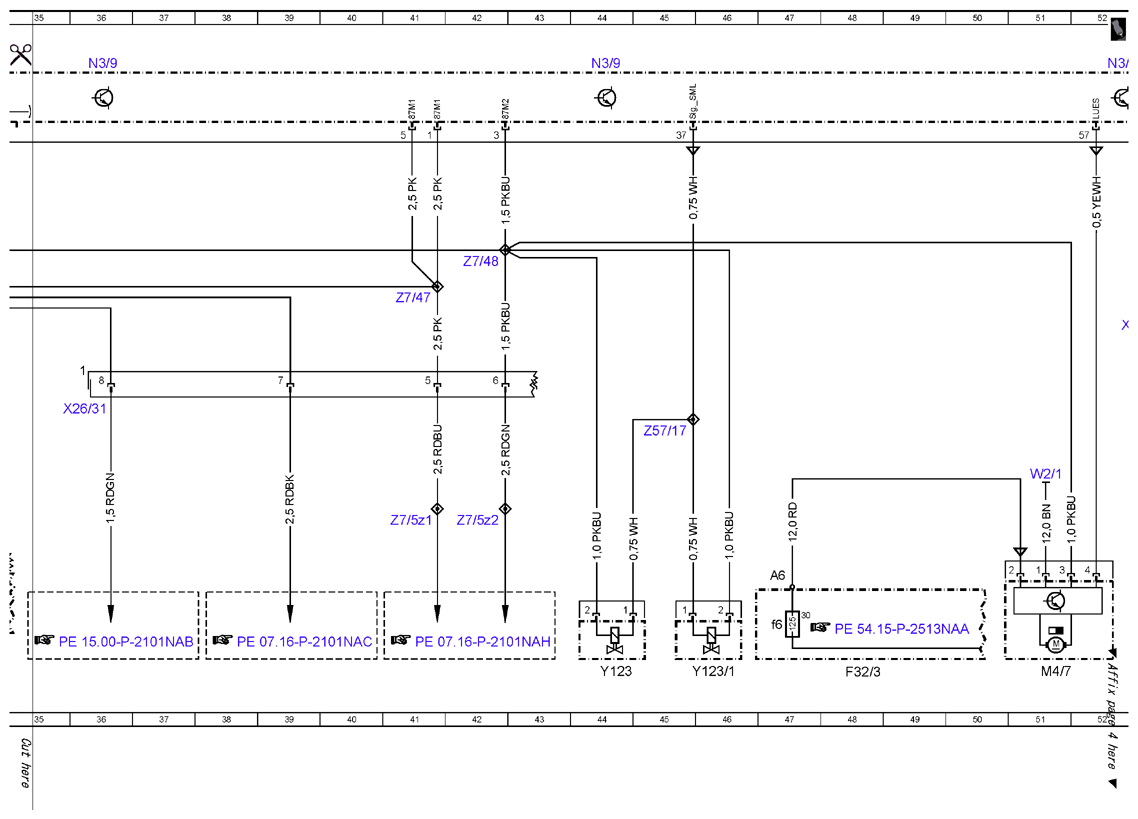

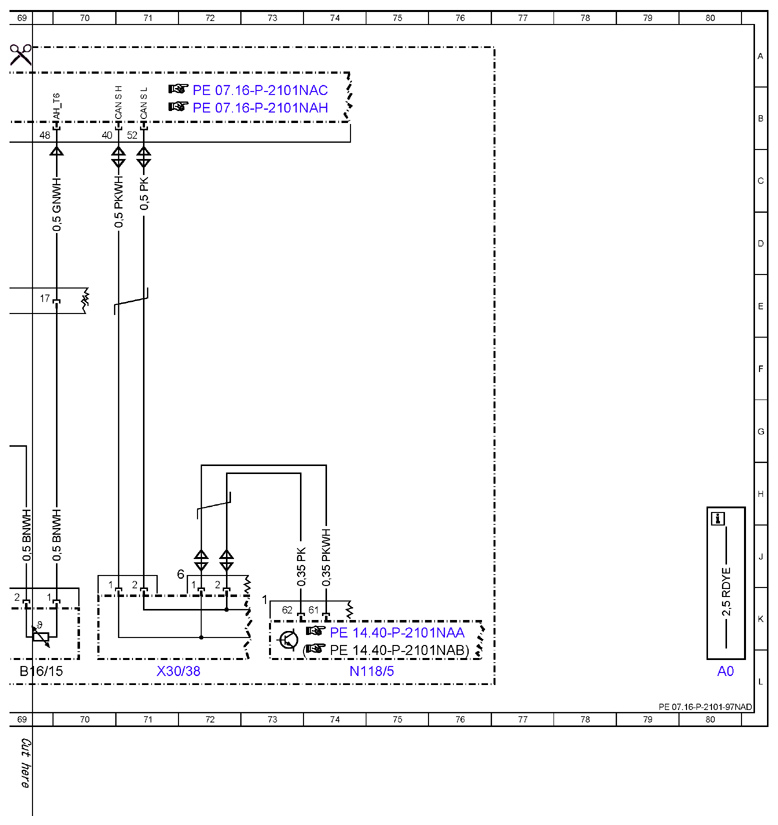

| A0 |
Color code key |
80L |
| B16/15 |
Temperature sensor upstream of SCR catalytic converter |
69L |
| B19/7 |
Temperature sensor upstream of catalytic converter |
66L |
| B19/9 |
Temperature sensor upstream of diesel particulate filter |
60L |
| B19/9 |
Temperature sensor upstream of diesel particulate filter |
68L |
| B28/8 |
Differential pressure sensor (DPF) |
63L |
| B37 |
Accelerator pedal sensor |
54L |
| CAN C |
Drive train CAN |
13K |
| CAN C |
Drive train CAN |
10K |
| CAN E1 |
Chassis CAN 1 |
19K |
| Code B03 |
ECO start/stop function |
8E |
| Code U42 |
BlueTEC® diesel exhaust treatment |
65A |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
65A |
| F32/3 |
Engine compartment prefuse box |
48L |
| F32/3f6 |
Fuse 6 |
47K |
| F58 |
Engine compartment fuse and relay module |
2L |
| F58 |
Engine compartment fuse and relay module |
28L |
| F58 |
Engine compartment fuse and relay module |
34L |
| F58f213 |
Fuse 213 |
1L |
| F58f215 |
Fuse 215 |
33L |
| F58f216 |
Fuse 216 |
31L |
| F58f217 |
Fuse 217 |
32L |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
22L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
21J |
| M4/7 |
Fan motor |
51L |
| N10 |
SAM control unit |
7L |
| N118 |
Fuel pump control unit |
16L |
| N118/5 |
AdBlue® control unit |
74L |
| N2/10 |
Supplemental restraint system control unit |
57L |
| N3/9 |
CDI control unit |
4A |
| N3/9 |
CDI control unit |
12A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
36A |
| N3/9 |
CDI control unit |
44A |
| N3/9 |
CDI control unit |
52A |
| N3/9 |
CDI control unit |
60A |
| N3/9 |
CDI control unit |
68A |
| U1008 |
Not valid for BlueTEC |
59A |
| U12 |
Valid for left-hand drive vehicles |
11F |
| U13 |
Valid for right-hand drive vehicles |
11G |
| U591 |
Not valid for trailer hitch |
24H |
| U960 |
Valid for radiator shutters |
24H |
| W15/1 |
Right footwell ground point |
12G |
| W15/5 |
Left front footwell ground point |
12G |
| W2 |
Right front ground point at lamp unit |
7E |
| W2/1 |
Right front ground point |
51H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
16E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
53E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
67E |
| X26/31 |
Engine/engine compartment electrical connector |
36G |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
19L |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
11L |
| X30/38 |
Potential distributor electrical connector (CAN I) |
71L |
| Y123 |
Left switchable engine mount |
44L |
| Y123/1 |
Right switchable engine mount |
46L |
| Y84 |
Radiator shutters actuator |
25L |
| Z57/17 |
Engine mount connector sleeve in engine compartment |
45G |
| Z7/47 |
Circuit 87D1 connector sleeve |
41E |
| Z7/48 |
Circuit 87D2 connector sleeve |
42D |
| Z7/5z1 |
Circuit 87 connector sleeve |
41H |
| Z7/5z2 |
Circuit 87 connector sleeve |
42H |
| Z85/7 |
Interior compartment exhaust temperature sensor ground line connector sleeve |
67G |
| Z85/8 |
Engine compartment exhaust temperature sensor ground line connector sleeve |
66E |
