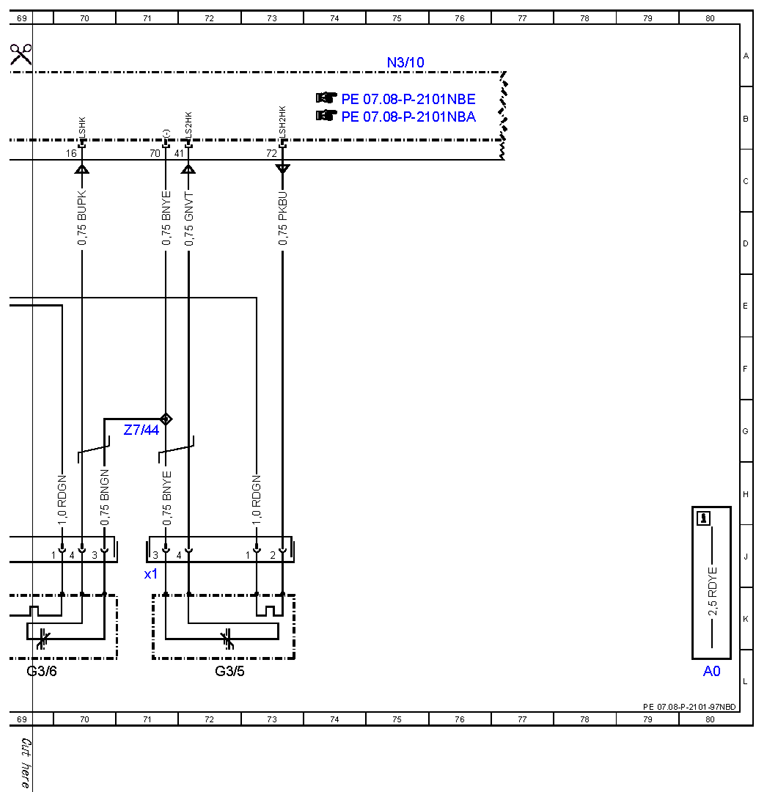

| A0 |
Color code key |
80L |

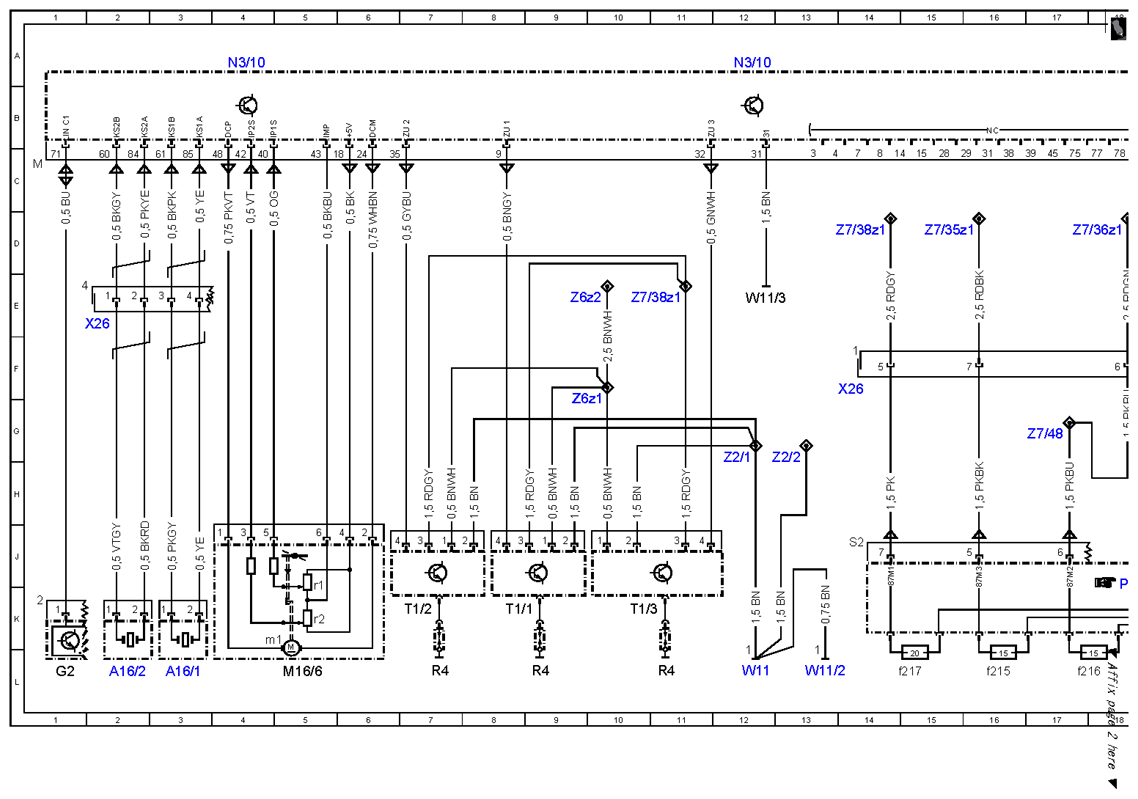

| A16/1 |
Knock sensor 1 |
3L |
| A16/2 |
Knock sensor 2 |
2L |

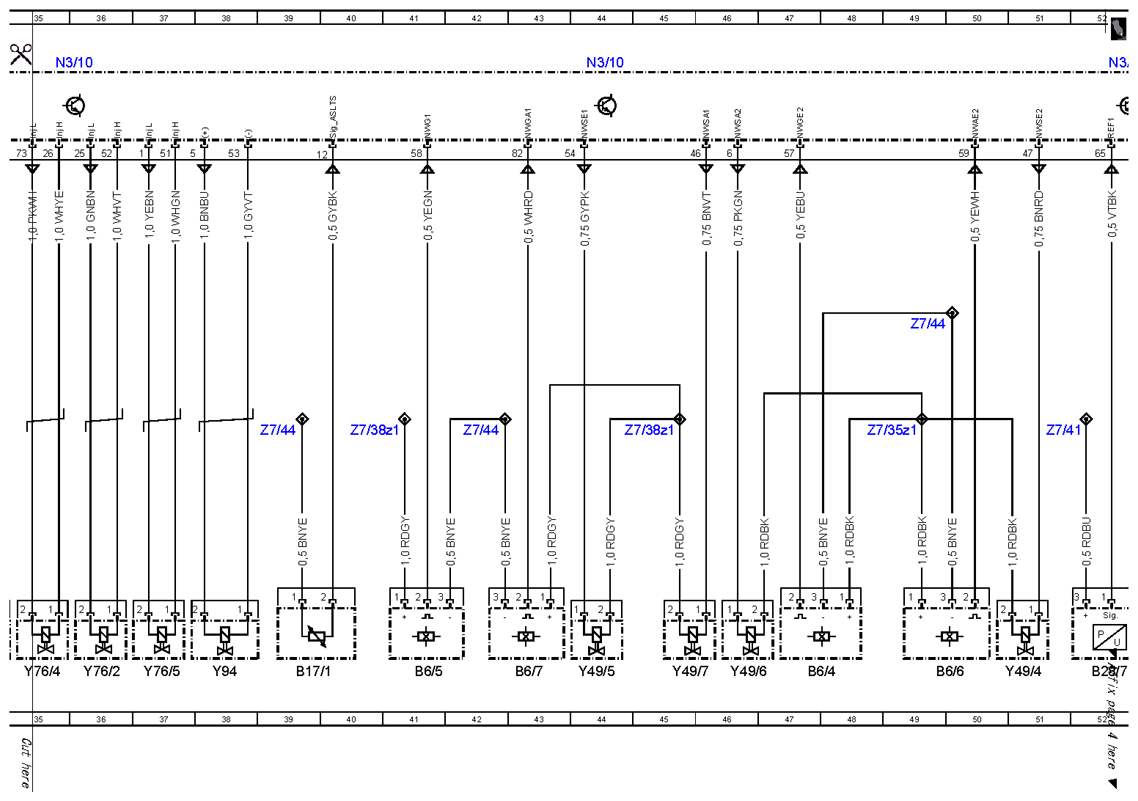

| B17/1 |
Intake manifold intake air temperature sensor |
39L |

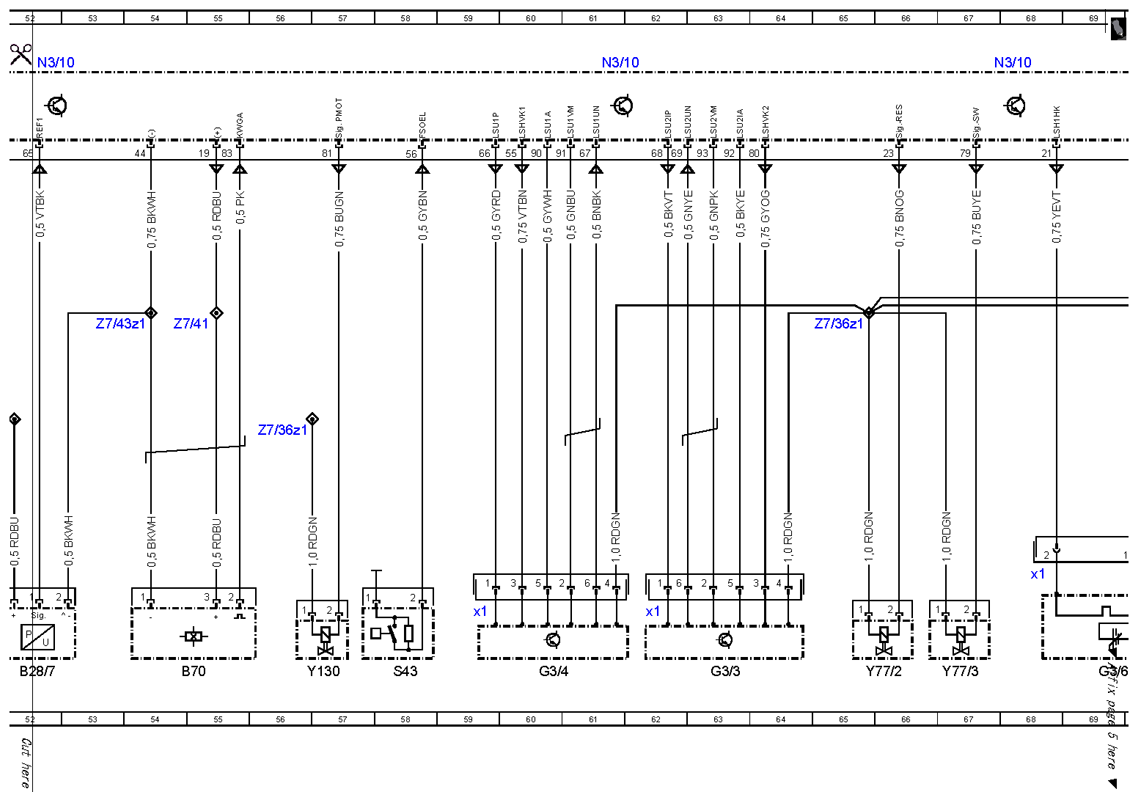

| B28/7 |
Pressure sensor downstream of throttle valve |
52L |

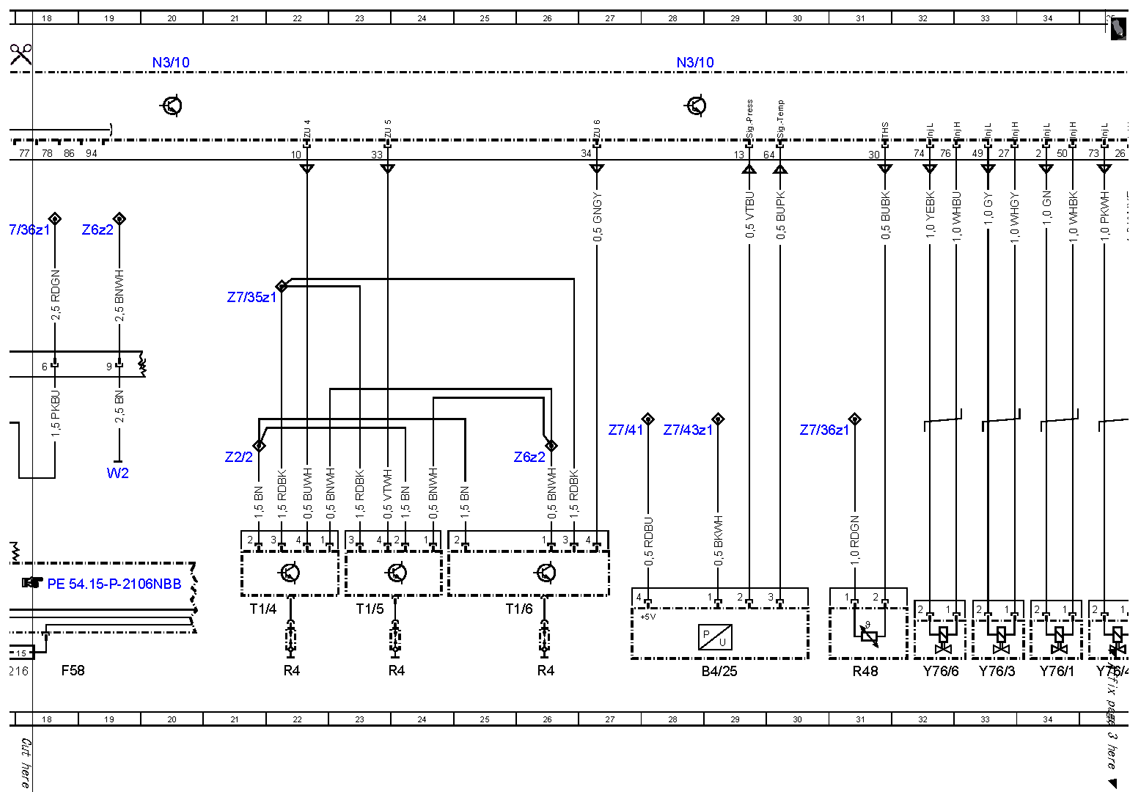

| B4/25 |
Fuel tank pressure and temperature sensor |
29L |
| B6/4 |
Left intake camshaft Hall sensor |
47L |
| B6/5 |
Right intake camshaft Hall sensor |
41L |
| B6/6 |
Left exhaust camshaft Hall sensor |
49L |
| B6/7 |
Right exhaust camshaft Hall sensor |
43L |
| B70 |
Crankshaft Hall sensor |
55L |
| F58 |
Engine compartment fuse and relay module |
18L |
| F58f215 |
Fuse 215 |
16L |
| F58f216 |
Fuse 216 |
17L |
| F58f217 |
Fuse 217 |
15L |
| G2 |
Alternator |
1L |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
63L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
62K |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
60L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
59K |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
72L |
| G3/5x1 |
Electrical connector for left oxygen sensor downstream of catalytic converter |
71J |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
69L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
68J |
| M16/6 |
Throttle valve actuator |
5L |
| M16/6m1 |
Actuator motor |
4K |
| M16/6r1 |
Actual value potentiometer 1 |
5K |
| M16/6r2 |
Actual value potentiometer 2 |
5K |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
35A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
61A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/10 |
ME-SFI [ME] control unit |
68A |
| N3/10 |
ME-SFI [ME] control unit |
75A |
| R4 |
Spark plugs |
7L |
| R4 |
Spark plugs |
9L |
| R4 |
Spark plugs |
11L |
| R4 |
Spark plugs |
22L |
| R4 |
Spark plugs |
24L |
| R4 |
Spark plugs |
26L |
| R48 |
Coolant thermostat heating element |
31L |
| S43 |
Oil level check switch |
58L |
| T1/1 |
Cylinder 1 ignition coil |
8K |
| T1/2 |
Cylinder 2 ignition coil |
7K |
| T1/3 |
Cylinder 3 ignition coil |
10K |
| T1/4 |
Cylinder 4 ignition coil |
21K |
| T1/5 |
Cylinder 5 ignition coil |
23K |
| T1/6 |
Cylinder 6 ignition coil |
25K |
| W11 |
Combustion engine ground point |
12L |
| W11/2 |
Right combustion engine ground point |
13L |
| W11/3 |
Left combustion engine ground point |
12E |
| W2 |
Right front ground point at lamp unit |
19H |
| X26 |
Interior and engine wiring harness electrical connector |
14F |
| X26 |
Interior and engine wiring harness electrical connector |
2E |
| Y130 |
Engine oil pump valve |
57L |
| Y49/4 |
Left intake camshaft solenoid |
51L |
| Y49/5 |
Right intake camshaft solenoid |
44L |
| Y49/6 |
Left exhaust camshaft solenoid |
46L |
| Y49/7 |
Right exhaust camshaft solenoid |
45L |
| Y76/1 |
Cylinder 1 fuel injector |
34L |
| Y76/2 |
Cylinder 2 fuel injector |
36L |
| Y76/3 |
Cylinder 3 fuel injector |
33L |
| Y76/4 |
Cylinder 4 fuel injector |
35L |
| Y76/5 |
Cylinder 5 fuel injector |
37L |
| Y76/6 |
Cylinder 6 fuel injector |
32L |
| Y77/2 |
Intake manifold resonance flap switchover valve |
65L |
| Y77/3 |
Intake manifold selector drum switchover valve |
67L |
| Y94 |
Quantity control valve |
38L |
| Z2/1 |
Right engine ground connector sleeve |
12G |
| Z2/2 |
Left engine ground connector sleeve |
13G |
| Z2/2 |
Left engine ground connector sleeve |
21G |
| Z6z1 |
Circuit 31 connector sleeve |
9G |
| Z6z2 |
Circuit 31 connector sleeve |
26G |
| Z6z2 |
Circuit 31 connector sleeve |
9E |
| Z6z2 |
Circuit 31 connector sleeve |
19D |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
49G |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
21E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
15D |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
18D |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
56G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
30G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
65E |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
11E |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
14D |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
40G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
45G |
| Z7/41 |
Sensor voltage supply connector sleeve |
27G |
| Z7/41 |
Sensor voltage supply connector sleeve |
51G |
| Z7/41 |
Sensor voltage supply connector sleeve |
55E |
| Z7/43z1 |
Sensor ground line connector sleeve |
28G |
| Z7/43z1 |
Sensor ground line connector sleeve |
53E |
| Z7/44 |
Ground connection connector sleeve |
42G |
| Z7/44 |
Ground connection connector sleeve |
39G |
| Z7/44 |
Ground connection connector sleeve |
71G |
| Z7/44 |
Ground connection connector sleeve |
49E |
| Z7/48 |
Circuit 87D2 connector sleeve |
17G |
