| A0 |
Color code key |
80L |
| B11/4 |
Coolant temperature sensor |
23L |
| B17/8 |
Charge air temperature sensor |
25L |

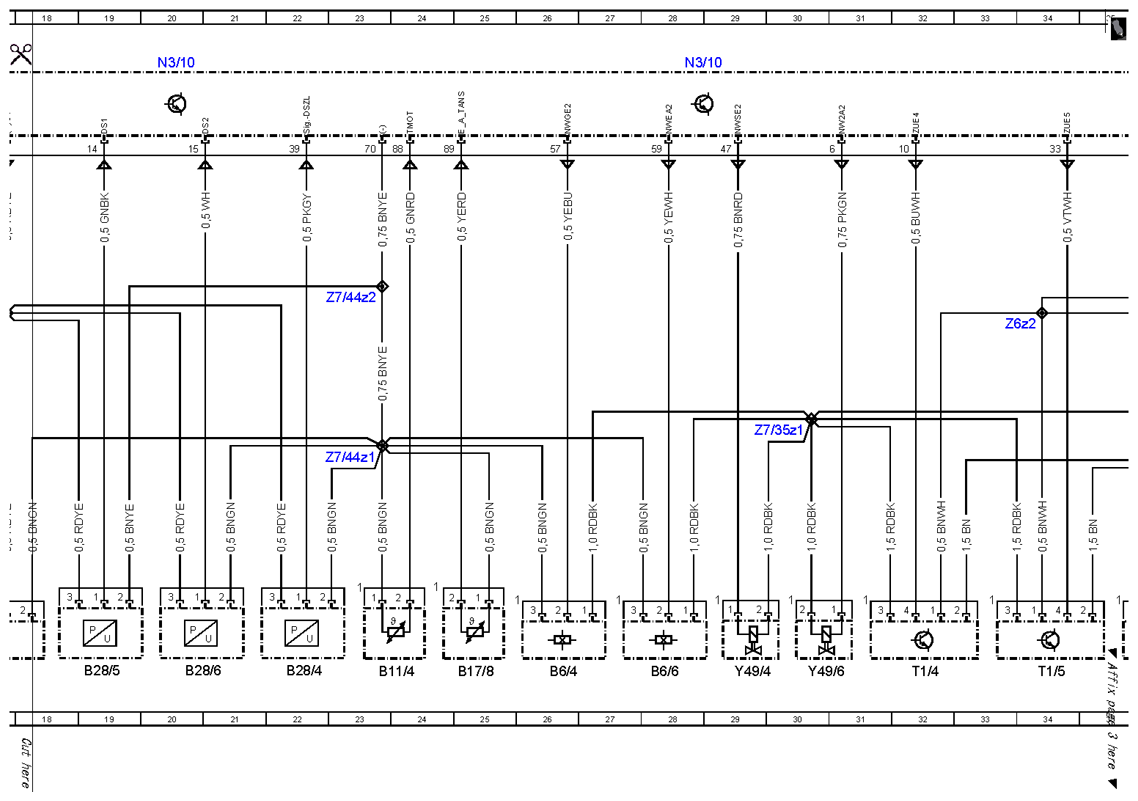

| B28/4 |
Pressure sensor downstream of left cylinder bank air filter |
22L |
| B28/5 |
Pressure sensor downstream of air filter |
19L |
| B28/6 |
Pressure sensor upstream of throttle valve |
20L |
| B28/7 |
Pressure sensor downstream of throttle valve |
72L |

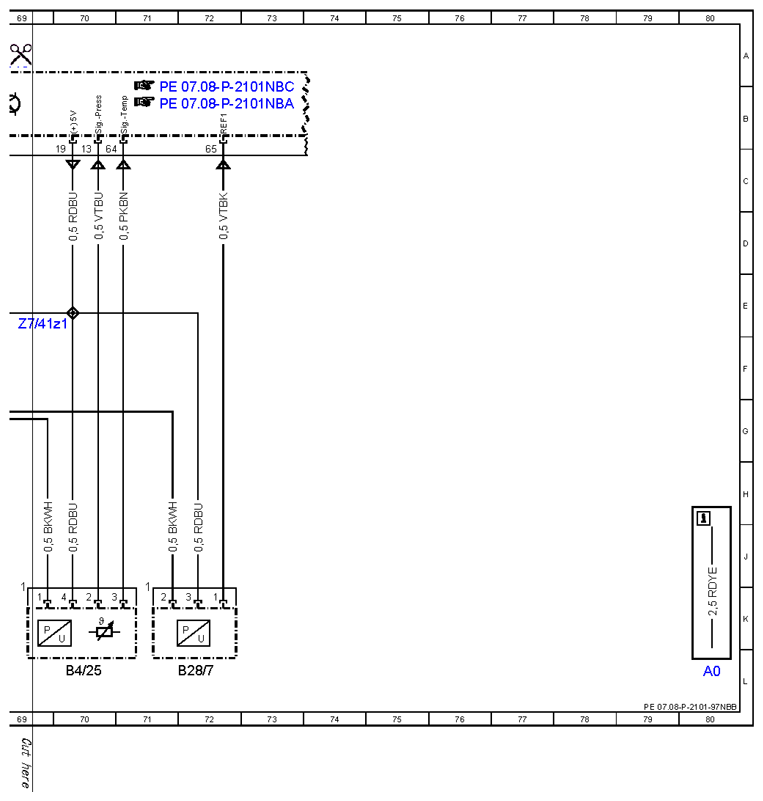

| B4/25 |
Fuel tank pressure and temperature sensor |
70L |
| B4/4 |
Purging pressure sensor |
17L |
| B6/4 |
Left intake camshaft Hall sensor |
26L |
| B6/5 |
Right intake camshaft Hall sensor |
48L |
| B6/6 |
Left exhaust camshaft Hall sensor |
28L |
| B6/7 |
Right exhaust camshaft Hall sensor |
50L |
| B70 |
Crankshaft Hall sensor |
68L |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
63A |

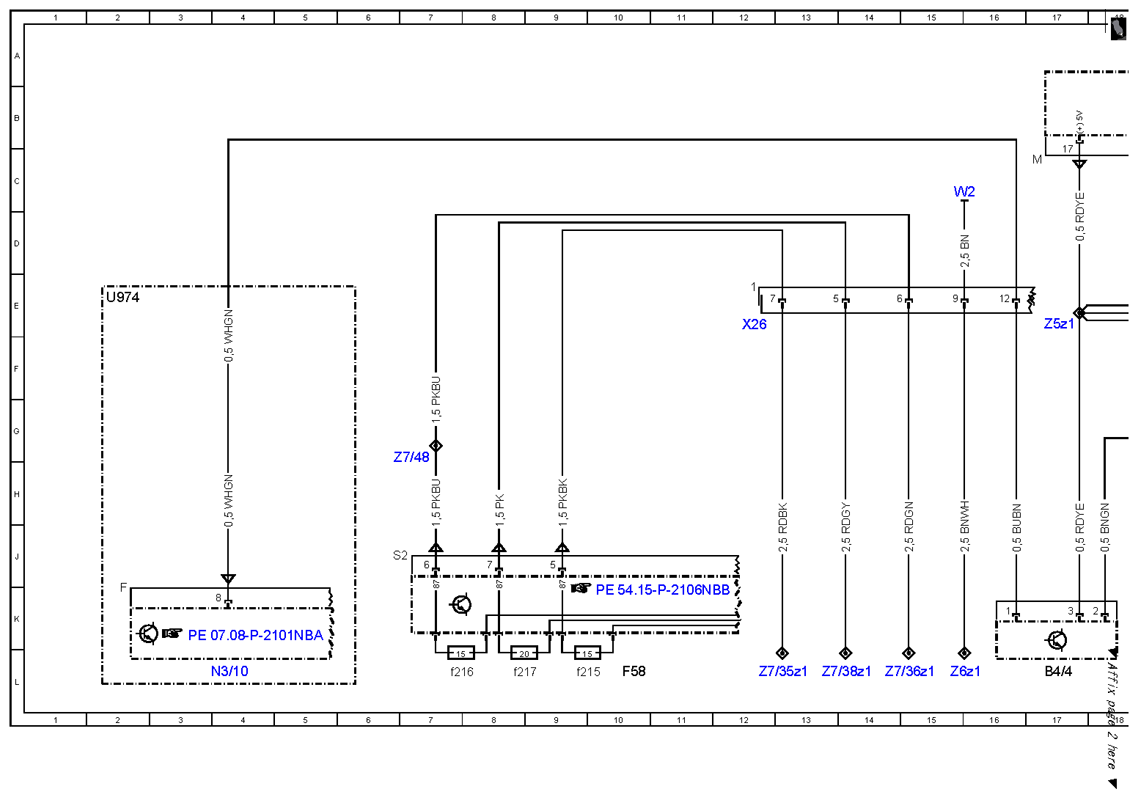

| F58 |
Engine compartment fuse and relay module |
10L |
| F58f215 |
Fuse 215 |
9L |
| F58f216 |
Fuse 216 |
7L |
| F58f217 |
Fuse 217 |
8L |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
60L |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
61L |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
52L |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
54L |

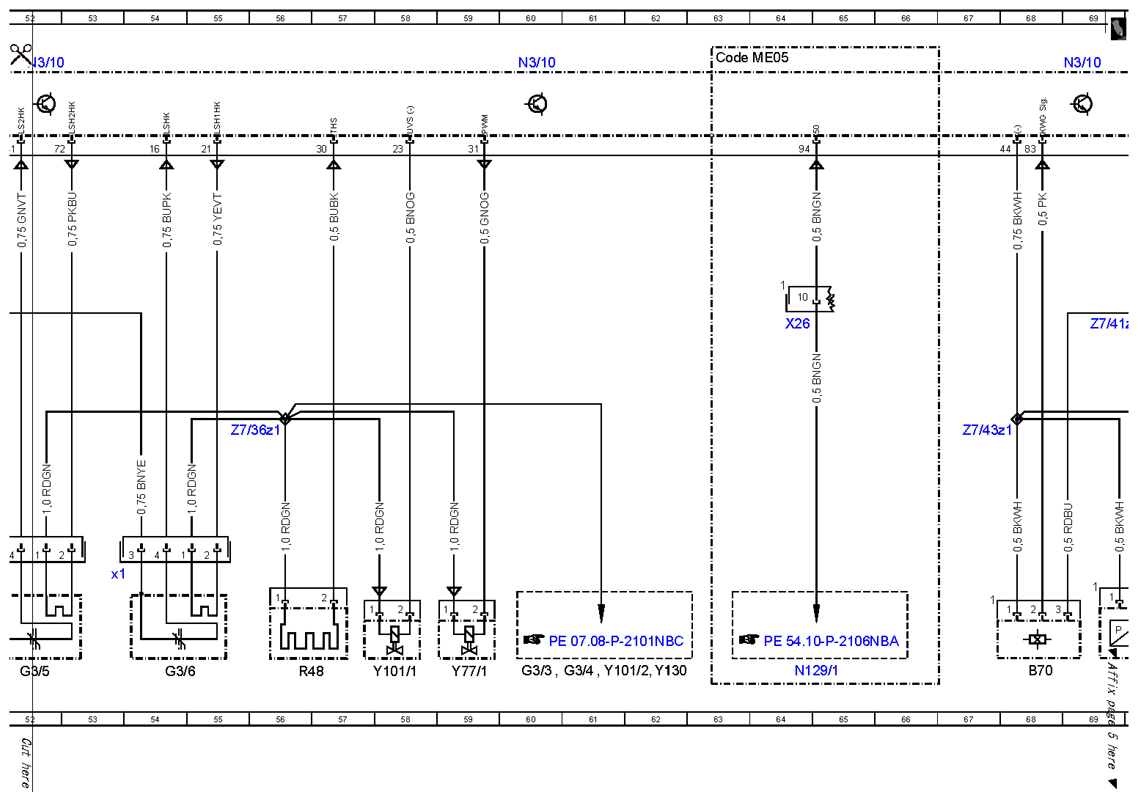

| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
51J |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
53J |
| N129/1 |
Power electronics control unit |
64L |
| N3/10 |
ME-SFI [ME] control unit |
4L |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
36A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/10 |
ME-SFI [ME] control unit |
60A |
| N3/10 |
ME-SFI [ME] control unit |
69A |
| R48 |
Coolant thermostat heating element |
56L |

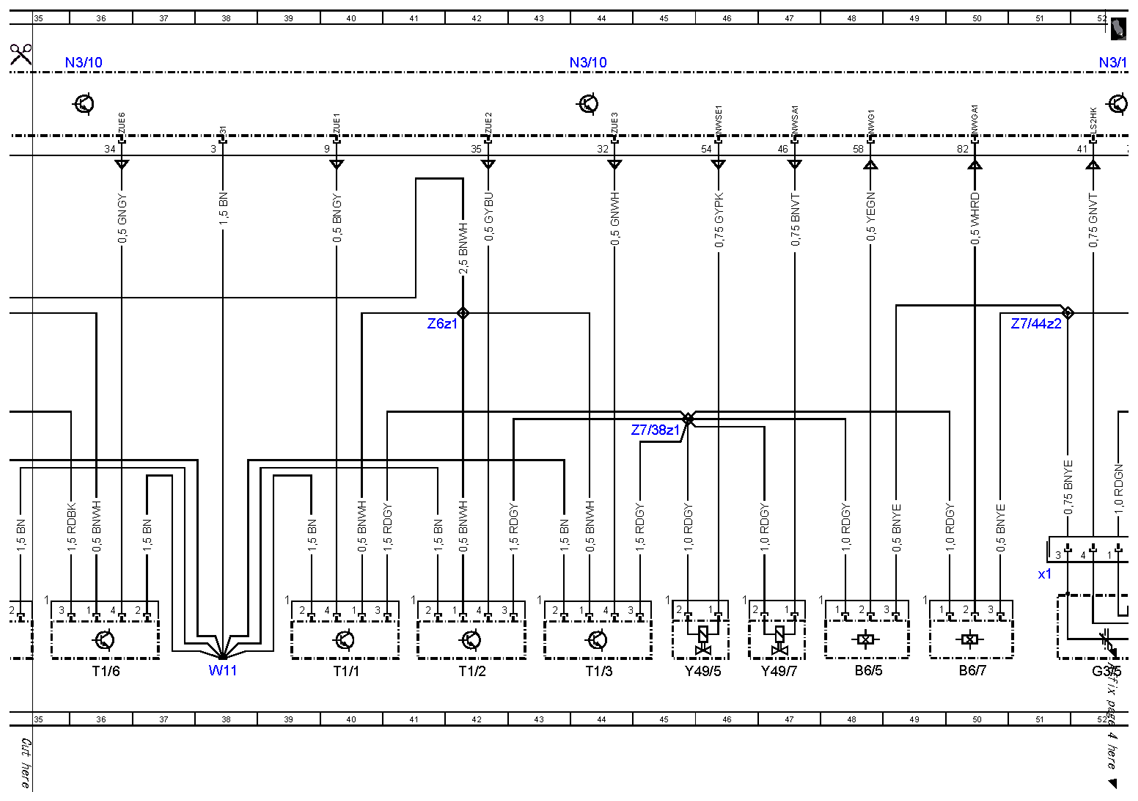

| T1/1 |
Cylinder 1 ignition coil |
40L |
| T1/2 |
Cylinder 2 ignition coil |
42L |
| T1/3 |
Cylinder 3 ignition coil |
44L |
| T1/4 |
Cylinder 4 ignition coil |
32L |
| T1/5 |
Cylinder 5 ignition coil |
34L |
| T1/6 |
Cylinder 6 ignition coil |
36L |
| U974 |
Not valid for hybrid drive |
2E |
| W11 |
Combustion engine ground point |
38L |
| W2 |
Right front ground point at lamp unit |
15C |
| X26 |
Interior and engine wiring harness electrical connector |
12E |
| X26 |
Interior and engine wiring harness electrical connector |
64E |
| Y101/1 |
Left bypass air switchover valve |
58L |
| Y101/2 |
Right bypass air switchover valve |
61L |
| Y130 |
Engine oil pump valve |
62L |
| Y49/4 |
Left intake camshaft solenoid |
29L |
| Y49/5 |
Right intake camshaft solenoid |
45L |
| Y49/6 |
Left exhaust camshaft solenoid |
30L |
| Y49/7 |
Right exhaust camshaft solenoid |
47L |
| Y77/1 |
Boost pressure control pressure transducer |
59L |
| Z5z1 |
Sensor voltage supply connector sleeve |
17E |
| Z6z1 |
Circuit 31 connector sleeve |
15L |
| Z6z1 |
Circuit 31 connector sleeve |
41E |
| Z6z2 |
Circuit 31 connector sleeve |
34E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
12L |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
30G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
14L |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
56G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
13L |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
45G |
| Z7/41z1 |
Sensor power supply connector sleeve |
69E |
| Z7/43z1 |
Sensor ground line connector sleeve |
67G |
| Z7/44z1 |
Sensor ground line connector sleeve |
23G |
| Z7/44z2 |
Sensor ground line connector sleeve |
23E |
| Z7/44z2 |
Sensor ground line connector sleeve |
51E |
| Z7/48 |
Circuit 87D2 connector sleeve |
7G |
