| A0 |
Color code key |
32L |
| A2/19 |
FM 2, DAB and TV 1 antenna amplifier |
11L |
| A2/19 |
FM 2, DAB and TV 1 antenna amplifier |
15L |
| A90/1 |
TV tuner (analog/digital) |
23L |

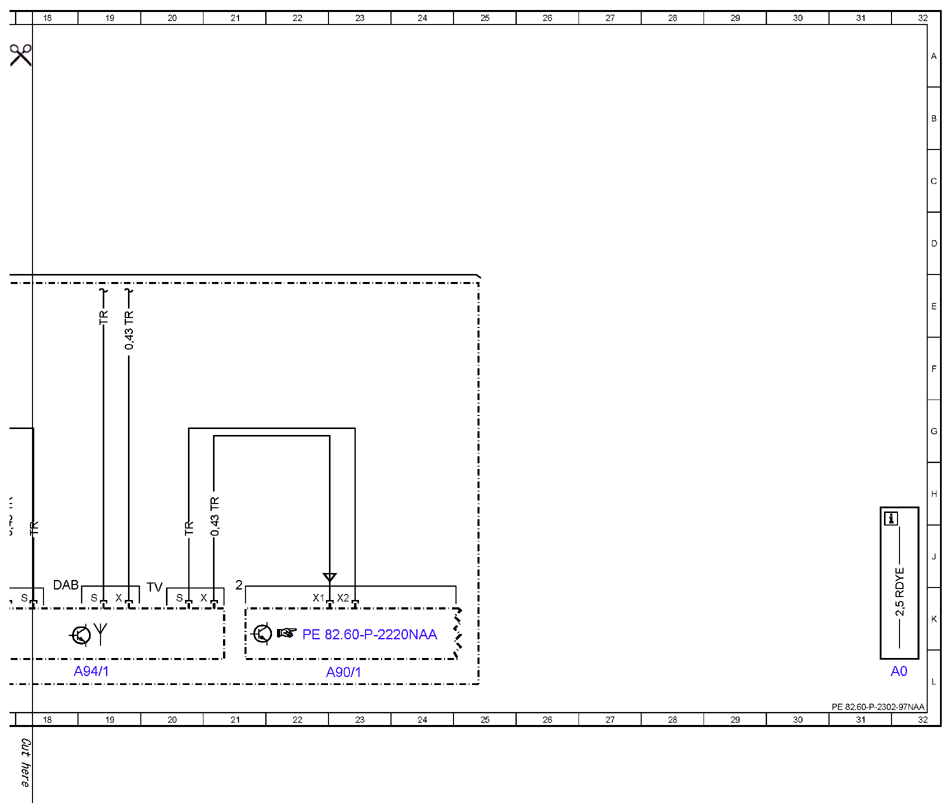

| A94/1 |
TV 1 antenna amplifier |
19L |
| Code 863 |
Digital/analog TV tuner |
13E |
| Code 865 |
TV tuner (digital) |
13F |
| F33 |
Battery compartment prefuse box |
3L |
| F33MF2 |
Multiple fuse 2 |
1K |

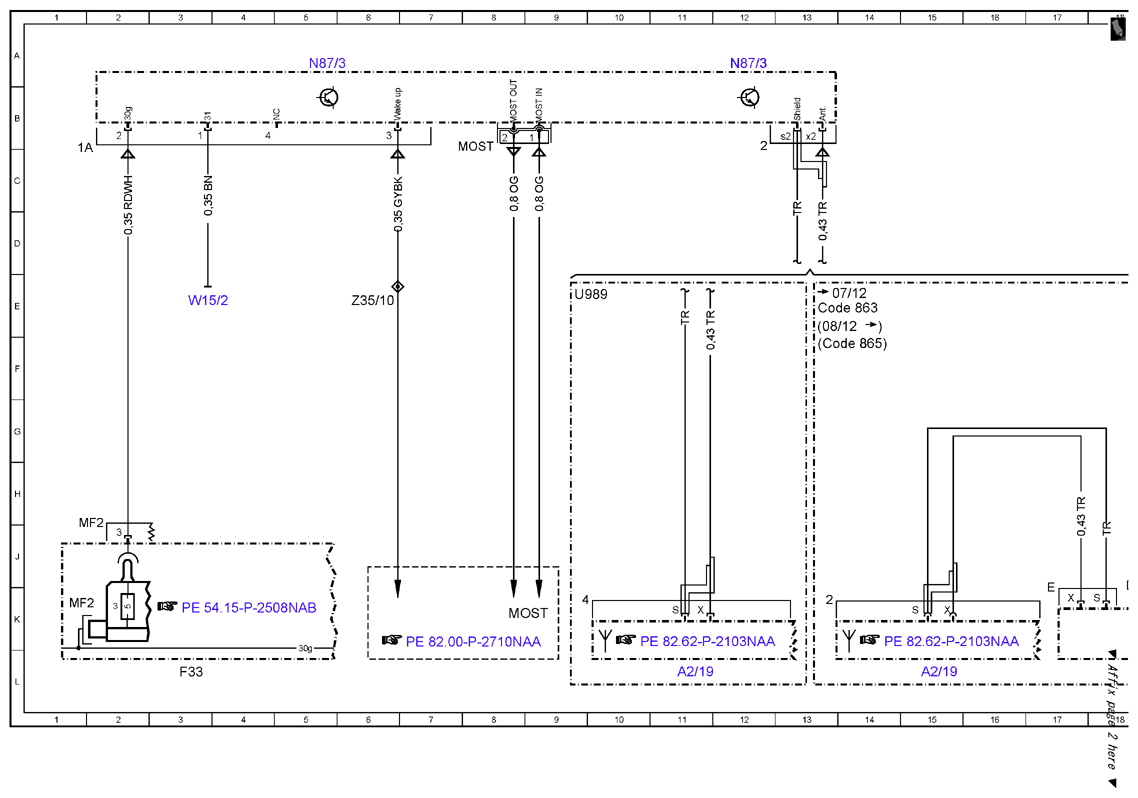

| N87/3 |
Digital Audio Broadcasting control unit |
5A |
| N87/3 |
Digital Audio Broadcasting control unit |
12A |
| U989 |
Valid without TV tuner |
9E |
| W15/2 |
Left footwell ground point |
3E |
| Z35/10 |
MOST wake-up signal connector sleeve |
6E |
