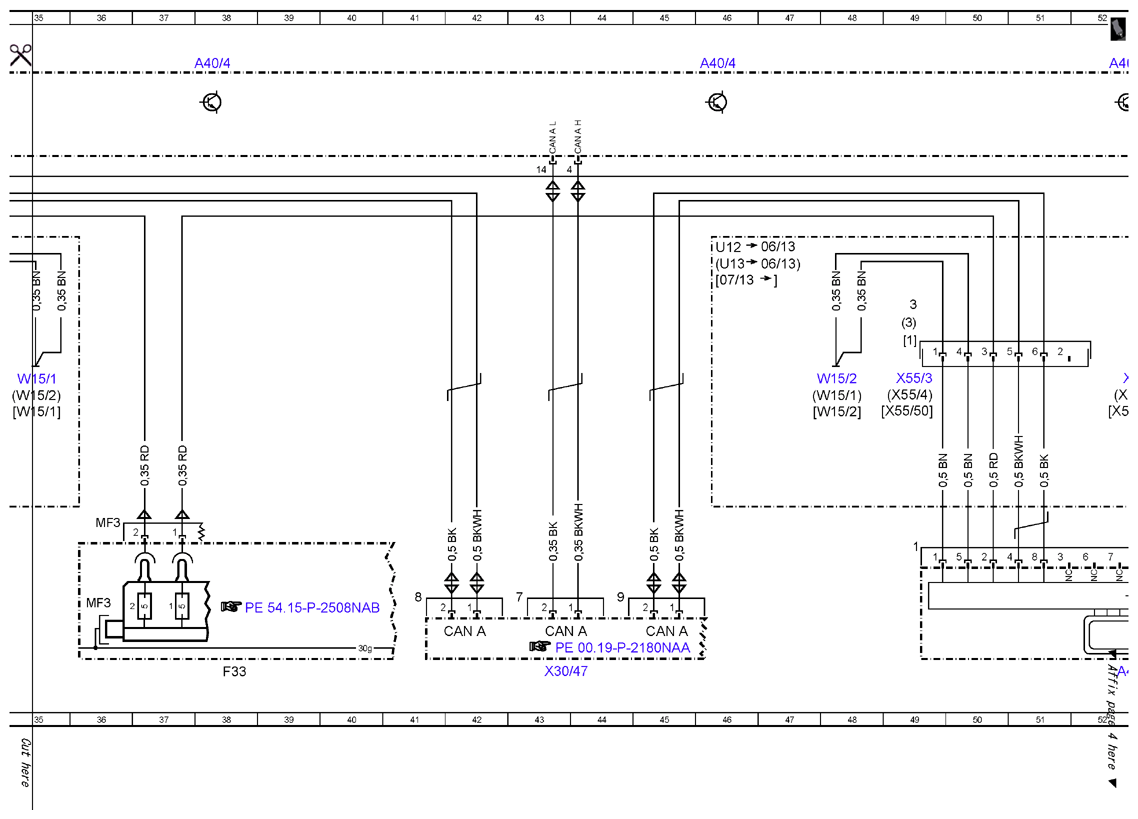

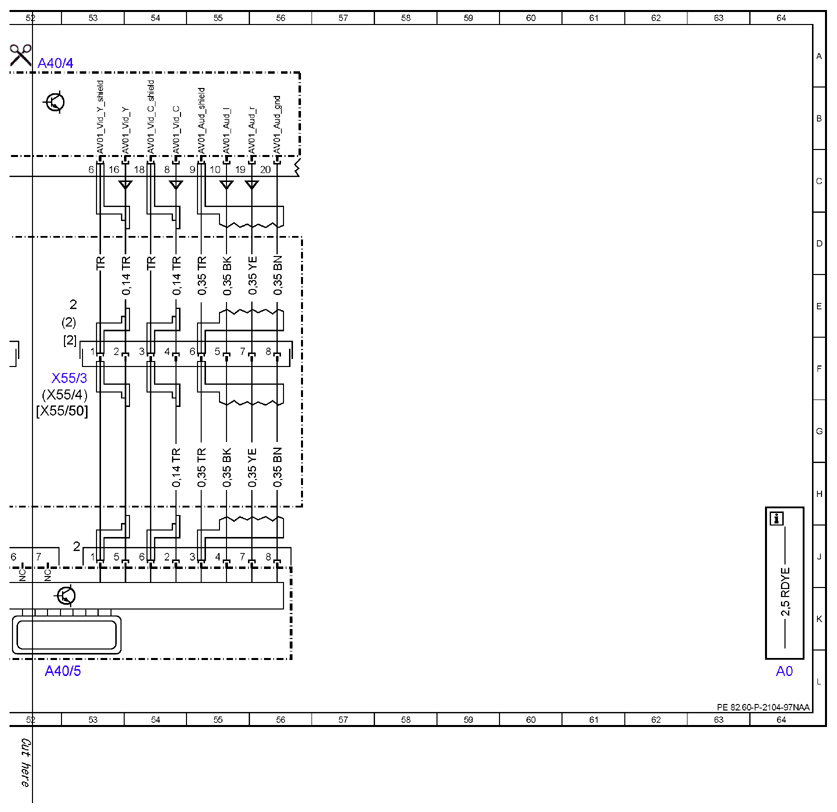

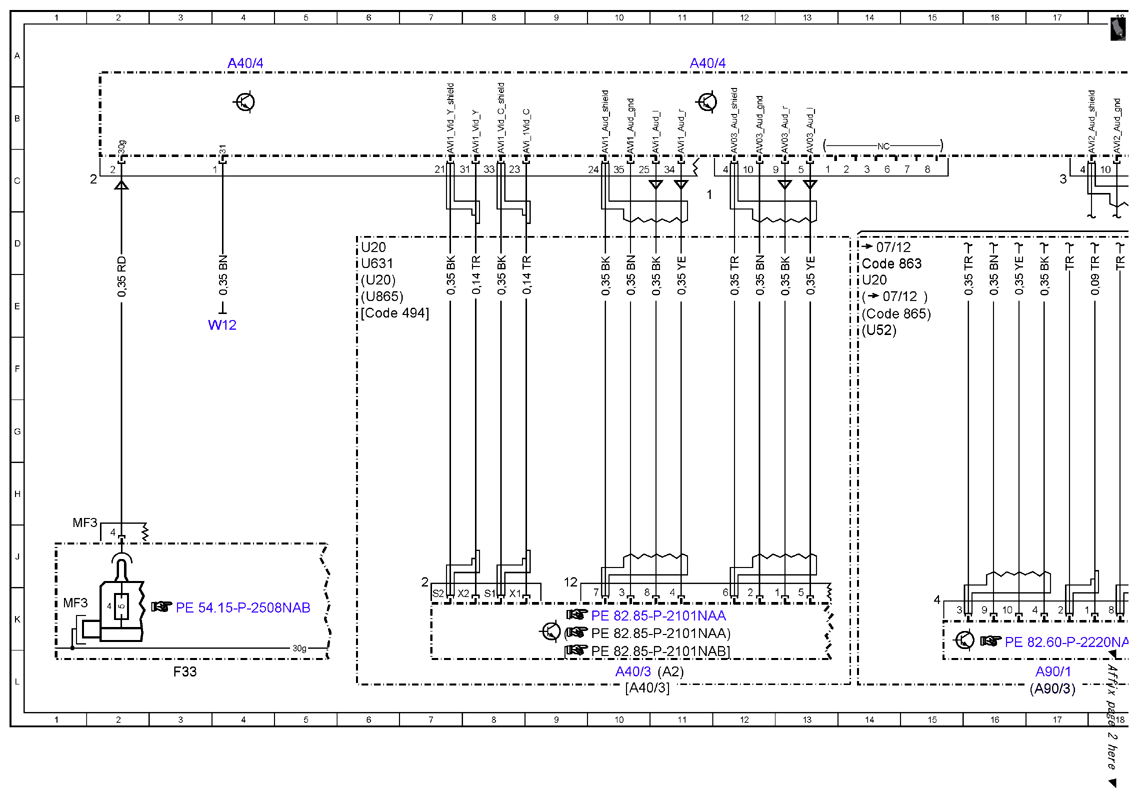

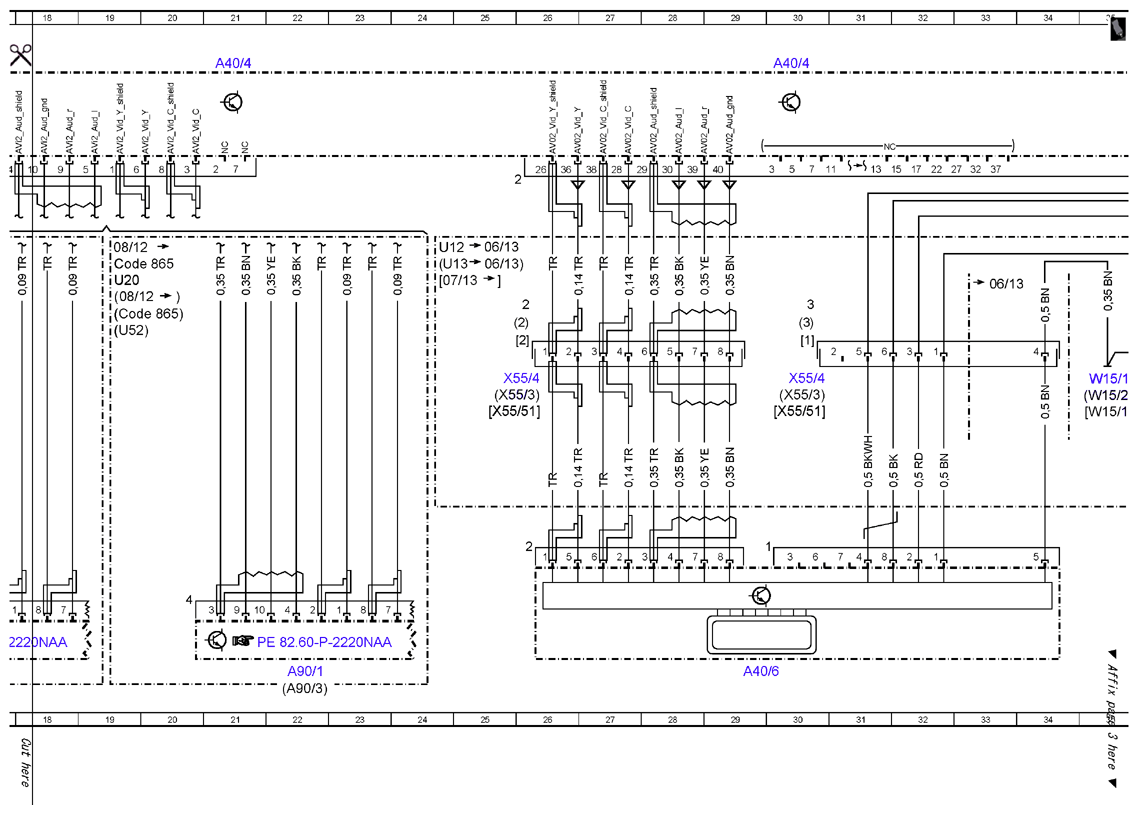

| A0 |
Color code key |
64L |
| A2 |
Radio |
11L |
| A40/3 |
COMAND control unit |
10L |
| A40/3 |
COMAND control unit |
10L |
| A40/4 |
DVD player |
4A |
| A40/4 |
DVD player |
11A |
| A40/4 |
DVD player |
21A |
| A40/4 |
DVD player |
30A |
| A40/4 |
DVD player |
38A |
| A40/4 |
DVD player |
46A |
| A40/4 |
DVD player |
52A |
| A40/5 |
Left rear display |
52L |
| A40/6 |
Right rear display |
29L |
| A90/1 |
TV tuner (analog/digital) |
17L |
| A90/1 |
TV tuner (analog/digital) |
22L |
| A90/3 |
TV digital tuner |
17L |
| A90/3 |
TV digital tuner |
22L |
| CAN A |
Telematics CAN |
43K |
| CAN A |
Telematics CAN |
45K |
| CAN A |
Telematics CAN |
42K |
| Code 494 |
USA version |
6E |
| Code 863 |
Digital/analog TV tuner |
14D |
| Code 865 |
TV tuner (digital) |
19E |
| Code 865 |
TV tuner (digital) |
19D |
| Code 865 |
TV tuner (digital) |
14E |
| F33 |
Battery compartment prefuse box |
3L |
| F33 |
Battery compartment prefuse box |
38L |
| F33MF3 |
Multiple fuse 3 |
1K |
| F33MF3 |
Multiple fuse 3 |
36K |
| U12 |
Valid for left-hand drive vehicles |
24D |
| U12 |
Valid for left-hand drive vehicles |
46D |
| U13 |
Valid for right-hand drive vehicles |
24D |
| U13 |
Valid for right-hand drive vehicles |
46D |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
6E |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
6D |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
19E |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
14E |
| U52 |
Valid for Japan |
19E |
| U52 |
Valid for Japan |
14E |
| U631 |
Valid for COMAND |
6D |
| U865 |
Valid for Audio 20 |
6E |
| W12 |
Ground point (center console) |
4E |
| W15/1 |
Right footwell ground point |
35F |
| W15/1 |
Right footwell ground point |
35G |
| W15/1 |
Right footwell ground point |
48G |
| W15/2 |
Left footwell ground point |
35G |
| W15/2 |
Left footwell ground point |
48G |
| W15/2 |
Left footwell ground point |
48F |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
43L |
| X55/3 |
Driver seat connector block |
49F |
| X55/3 |
Driver seat connector block |
53F |
| X55/3 |
Driver seat connector block |
25F |
| X55/3 |
Driver seat connector block |
30F |
| X55/4 |
Front passenger seat connector block |
26F |
| X55/4 |
Front passenger seat connector block |
30F |
| X55/4 |
Front passenger seat connector block |
49F |
| X55/4 |
Front passenger seat connector block |
53F |
| X55/50 |
Left rear display electrical connector |
49G |
| X55/50 |
Left rear display electrical connector |
52G |
| X55/51 |
Right rear display electrical connector |
25G |
| X55/51 |
Right rear display electrical connector |
30G |
