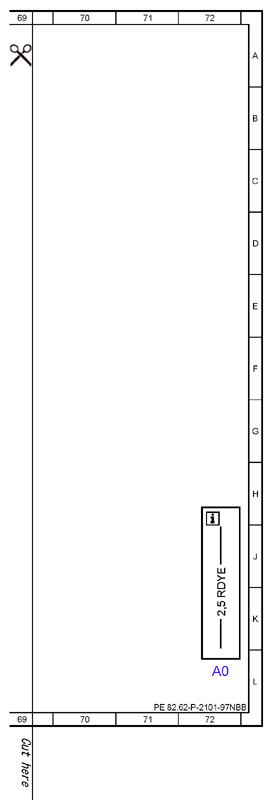

| A0 |
Color code key |
72L |

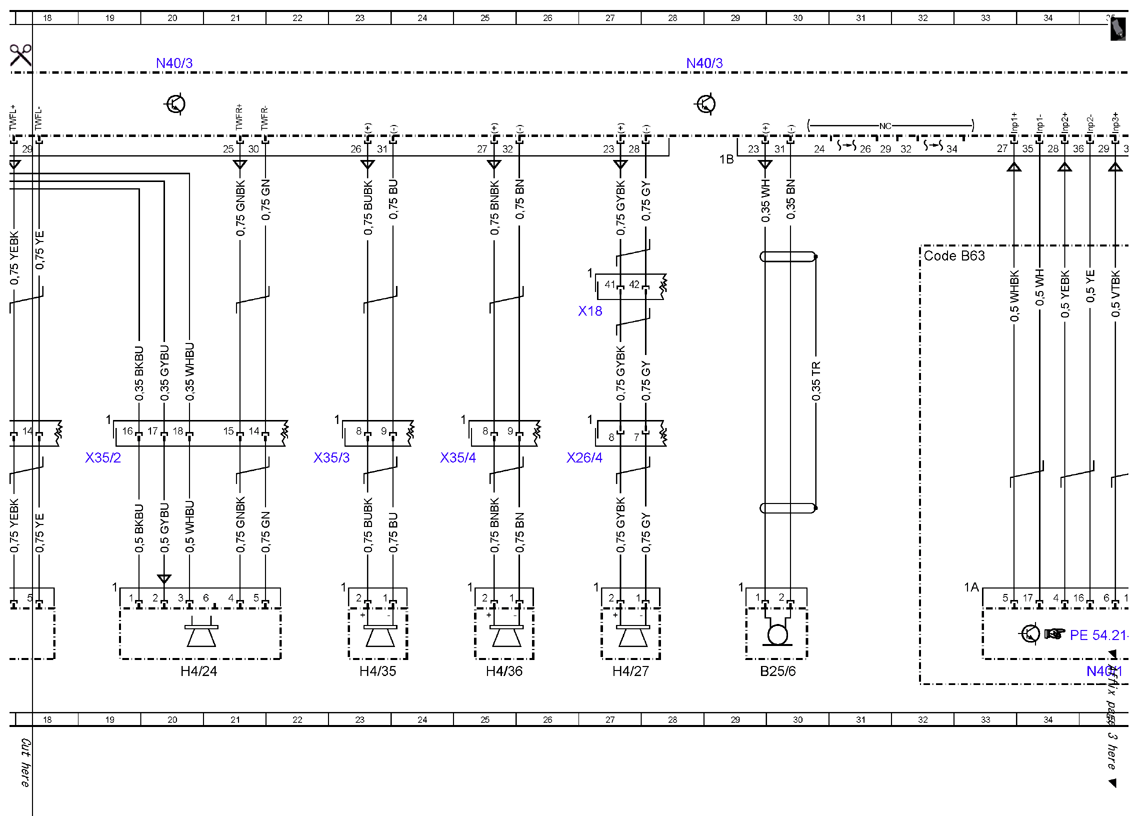

| B25/6 |
Sound system microphone |
30L |
| Code 06U |
Mercedes connect me basic services |
61K |
| Code 348 |
Emergency call/assistance system |
60K |
| Code 350 |
Ecall Europe emergency call system |
60K |
| Code 9U1 |
|
60K |
| Code B63 |
AMG eSound |
32D |
| Code E64 |
|
61K |

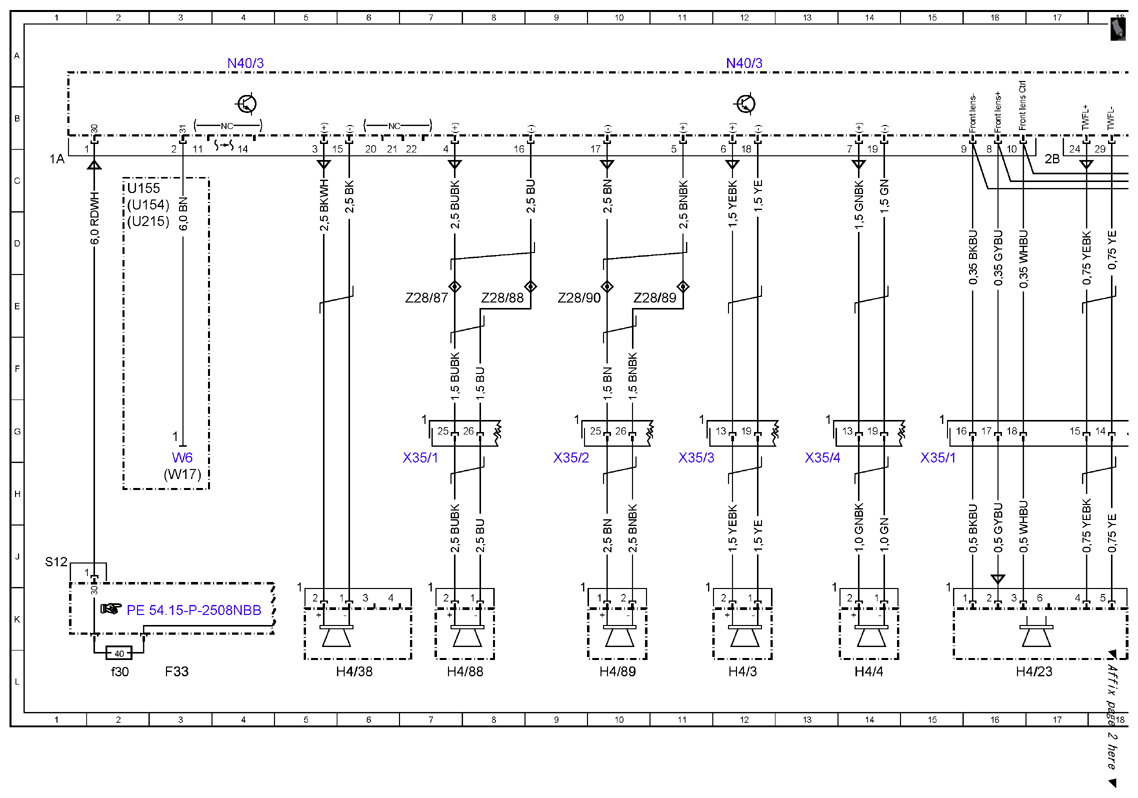

| F33 |
Battery compartment prefuse box |
3L |
| F33f30 |
Fuse 30 |
2L |
| H4/23 |
Left front door speaker, mirror triangle |
17L |
| H4/24 |
Right front door speaker, mirror triangle |
20L |
| H4/27 |
Center instrument panel speaker |
27L |
| H4/3 |
Left rear door speaker |
12L |
| H4/35 |
Left rear door tweeter |
23L |
| H4/36 |
Right rear door tweeter |
25L |
| H4/38 |
|
6L |
| H4/4 |
Right rear door speaker |
14L |

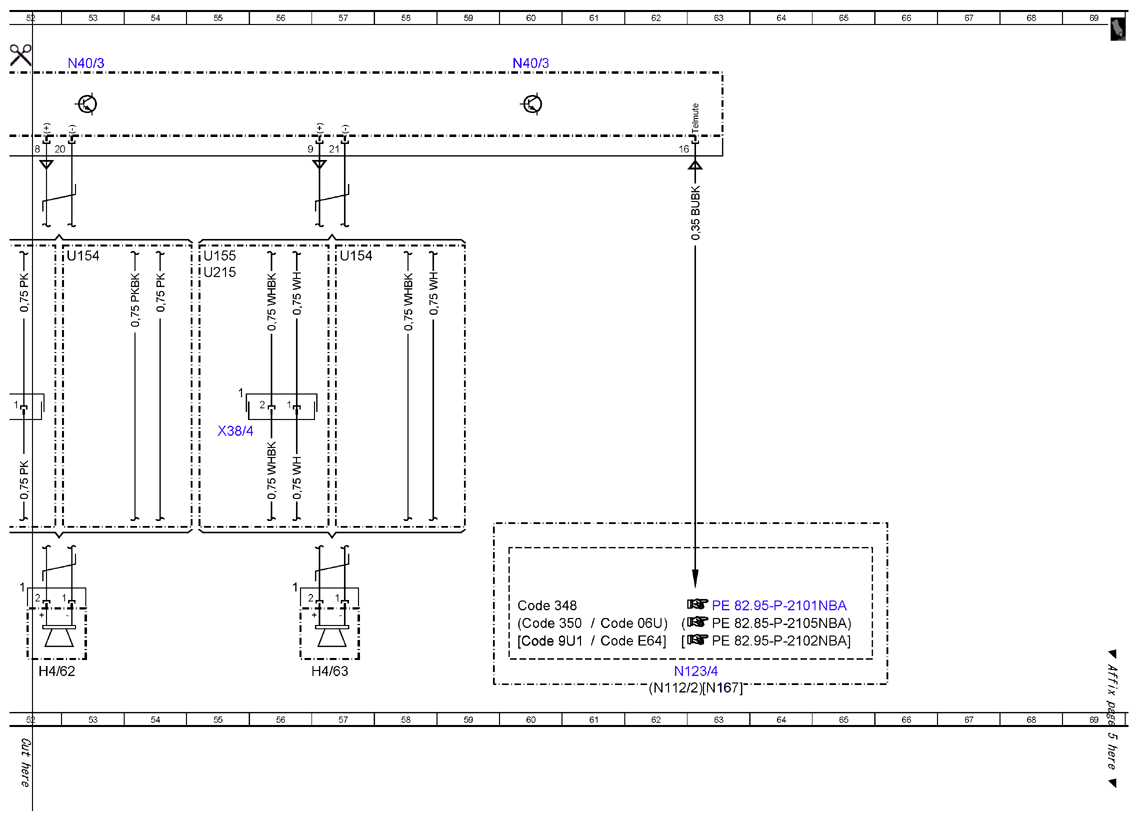

| H4/62 |
Left rear surround speaker |
52L |
| H4/63 |
Right rear surround speaker |
57L |
| H4/86 |
Left front door midrange speaker |
44L |
| H4/87 |
Right front door midrange speaker |
49L |
| H4/88 |
|
7L |
| H4/89 |
|
10L |
| N112/2 |
Telematics services communication module |
62L |
| N123/4 |
Emergency call system control unit |
62L |
| N167 |
E-Call Russia (GLONASS) control unit |
63L |
| N40/1 |
Engine sound control unit |
35L |

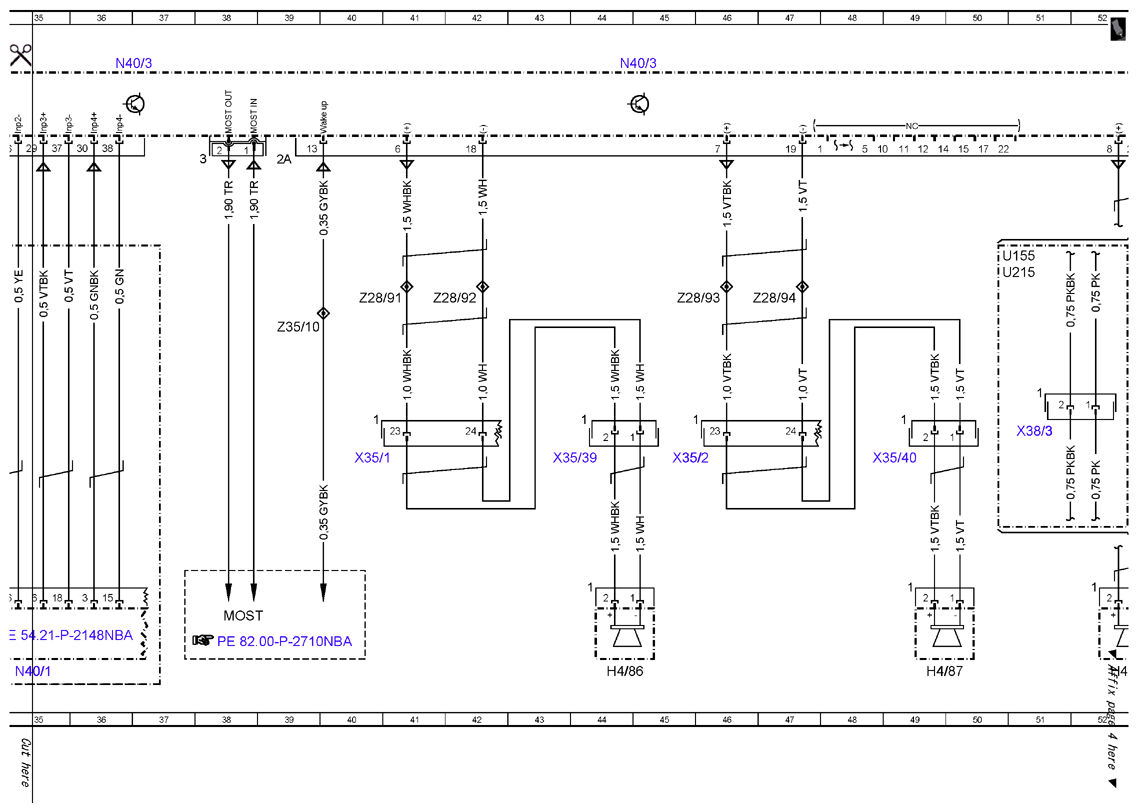

| N40/3 |
Sound system amplifier control unit |
4A |
| N40/3 |
Sound system amplifier control unit |
12A |
| N40/3 |
Sound system amplifier control unit |
20A |
| N40/3 |
Sound system amplifier control unit |
28A |
| N40/3 |
Sound system amplifier control unit |
36A |
| N40/3 |
Sound system amplifier control unit |
44A |
| N40/3 |
Sound system amplifier control unit |
60A |
| N40/3 |
Sound system amplifier control unit |
53A |
| U154 |
Valid for 166.0 |
2C |
| U154 |
Valid for 166.0 |
53D |
| U154 |
Valid for 166.0 |
57D |
| U155 |
Valid for 166.8 |
2C |
| U155 |
Valid for 166.8 |
50D |
| U155 |
Valid for 166.8 |
55D |
| U215 |
Valid for model series 292 |
2D |
| U215 |
Valid for model series 292 |
50E |
| U215 |
Valid for model series 292 |
55E |
| W17 |
Right rear seat ground point |
3H |
| W6 |
Inner left D-pillar ground point |
3H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
27E |
| X26/4 |
Cockpit adapter wiring harness electrical connector |
27H |
| X35/1 |
Left front door electrical connector |
7H |
| X35/1 |
Left front door electrical connector |
15H |
| X35/1 |
Left front door electrical connector |
40H |
| X35/2 |
Right front door electrical connector |
9H |
| X35/2 |
Right front door electrical connector |
19H |
| X35/2 |
Right front door electrical connector |
45H |
| X35/3 |
Left rear door electrical connector |
11H |
| X35/3 |
Left rear door electrical connector |
23H |
| X35/39 |
Left front door midrange speaker electrical connector |
44H |
| X35/4 |
Right rear door electrical connector |
25H |
| X35/4 |
Right rear door electrical connector |
13H |
| X35/40 |
Right front door midrange speaker electrical connector |
49H |
| X38/3 |
Left surround speaker electrical intermediate connector |
51G |
| X38/4 |
Right surround speaker electrical intermediate connector |
55G |
| Z28/87 |
Left front door subwoofer/woofer connector sleeve (+) |
7E |
| Z28/88 |
Left front door subwoofer/woofer connector sleeve (-) |
8E |
| Z28/89 |
Right front door subwoofer/woofer connector sleeve (+) |
11E |
| Z28/90 |
Right front door subwoofer/woofer connector sleeve (-) |
9E |
| Z28/91 |
Left front door midrange speaker connector sleeve (+) |
40E |
| Z28/92 |
Left front door midrange speaker connector sleeve (-) |
42E |
| Z28/93 |
Right front door midrange speaker connector sleeve (+) |
46E |
| Z28/94 |
Right front door midrange speaker connector sleeve (-) |
47E |
| Z35/10 |
MOST wake-up signal connector sleeve |
39E |
