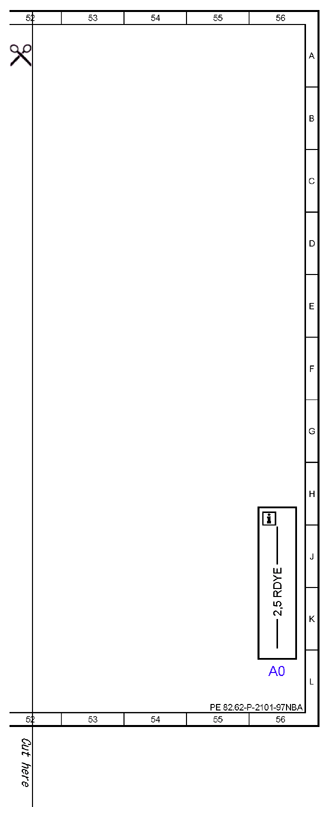

| A0 |
Color code key |
56L |
| Code 06U |
Mercedes connect me basic services |
42K |
| Code 348 |
Emergency call/assistance system |
41K |
| Code 350 |
Ecall Europe emergency call system |
41K |
| Code 9U1 |
|
41K |
| Code B63 |
AMG eSound |
10D |
| Code E64 |
|
42K |

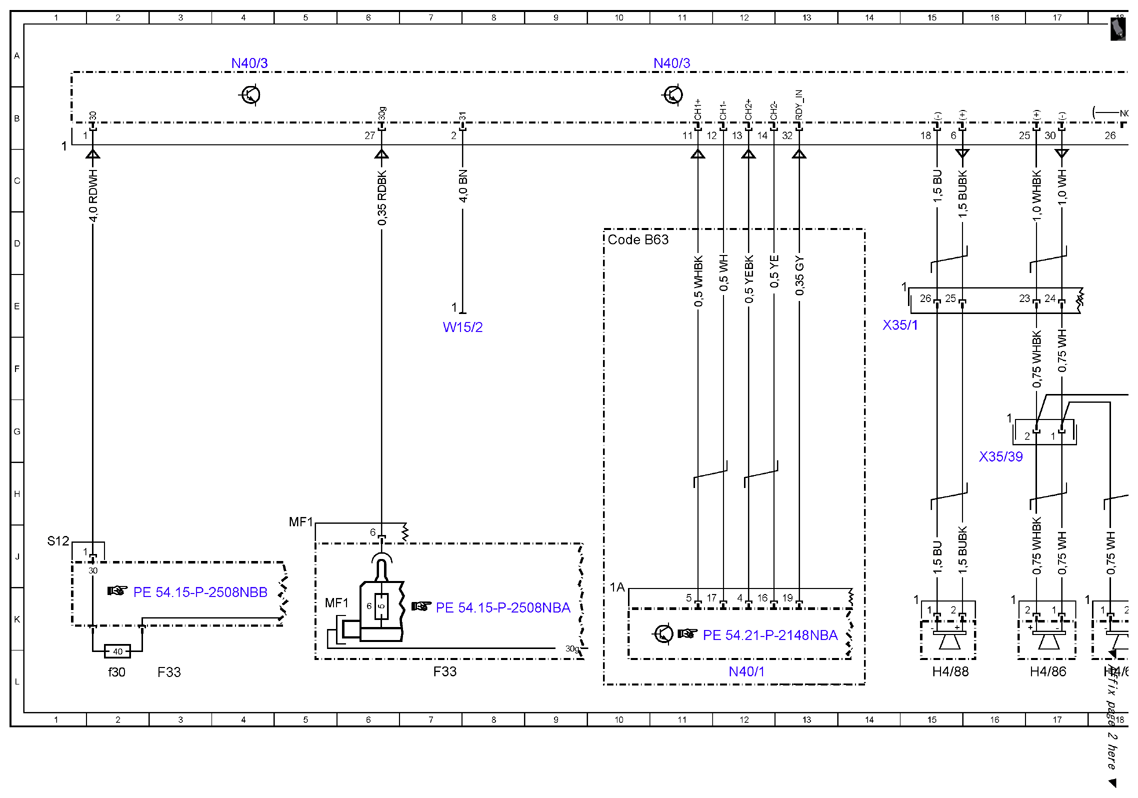

| F33 |
Battery compartment prefuse box |
3L |
| F33 |
Battery compartment prefuse box |
7L |
| F33MF1 |
Multiple fuse 1 |
6K |
| F33f30 |
Fuse 30 |
2L |
| H4/27 |
Center instrument panel speaker |
39L |
| H4/3 |
Left rear door speaker |
26L |
| H4/35 |
Left rear door tweeter |
27L |
| H4/36 |
Right rear door tweeter |
29L |
| H4/38 |
|
24L |
| H4/4 |
Right rear door speaker |
28L |
| H4/62 |
Left rear surround speaker |
32L |
| H4/63 |
Right rear surround speaker |
36L |
| H4/68 |
Left front door sound system tweeter |
18L |

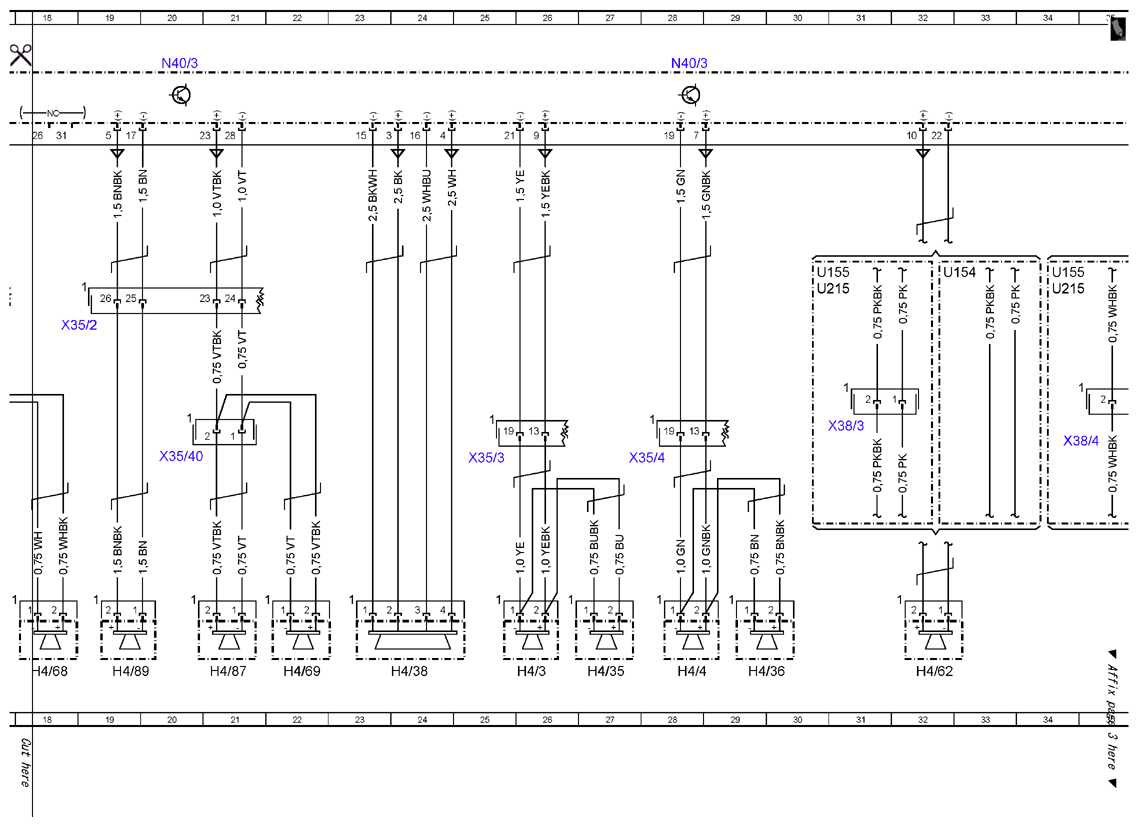

| H4/69 |
Right front door sound system tweeter |
22L |
| H4/86 |
Left front door midrange speaker |
17L |
| H4/87 |
Right front door midrange speaker |
21L |
| H4/88 |
|
15L |
| H4/89 |
|
19L |

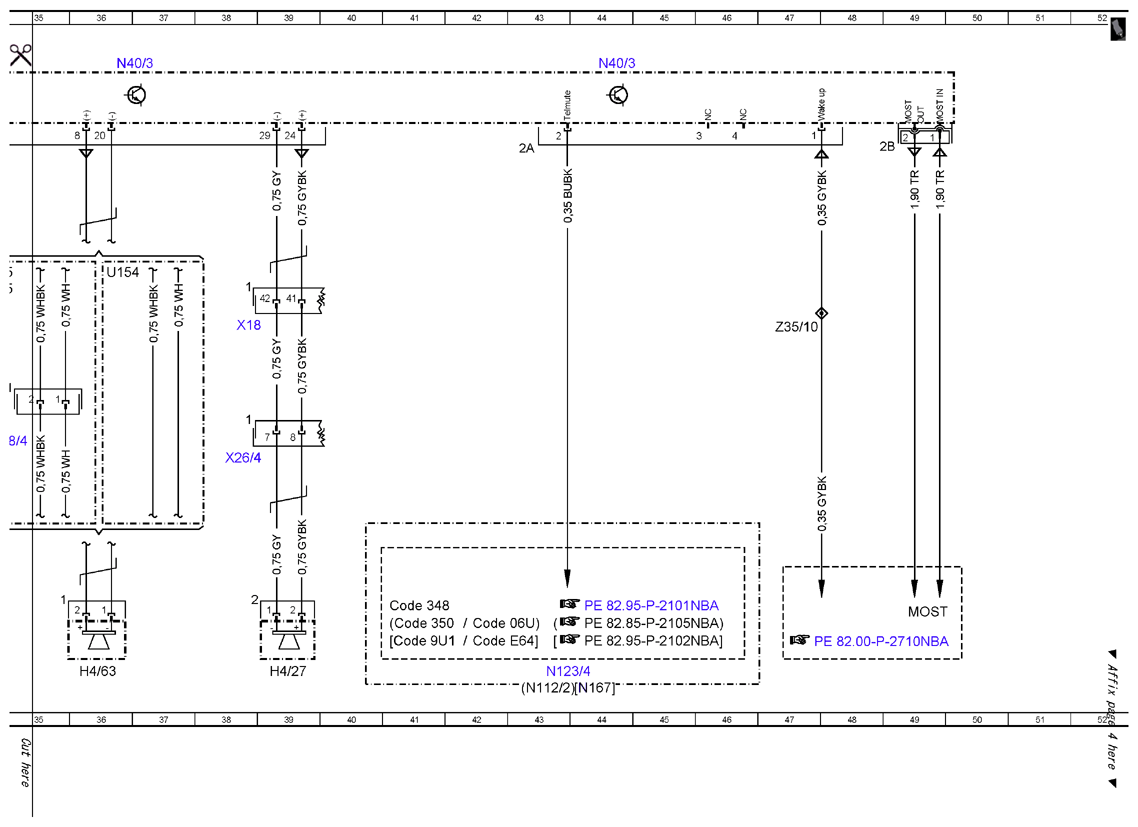

| N112/2 |
Telematics services communication module |
43L |
| N123/4 |
Emergency call system control unit |
43L |
| N167 |
E-Call Russia (GLONASS) control unit |
44L |
| N40/1 |
Engine sound control unit |
12L |
| N40/3 |
Sound system amplifier control unit |
4A |
| N40/3 |
Sound system amplifier control unit |
11A |
| N40/3 |
Sound system amplifier control unit |
20A |
| N40/3 |
Sound system amplifier control unit |
36A |
| N40/3 |
Sound system amplifier control unit |
44A |
| N40/3 |
Sound system amplifier control unit |
28A |
| U154 |
Valid for 166.0 |
36E |
| U154 |
Valid for 166.0 |
32E |
| U155 |
Valid for 166.8 |
30E |
| U155 |
Valid for 166.8 |
34E |
| U215 |
Valid for model series 292 |
30E |
| U215 |
Valid for model series 292 |
34E |
| W15/2 |
Left footwell ground point |
7E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
38E |
| X26/4 |
Cockpit adapter wiring harness electrical connector |
38H |
| X35/1 |
Left front door electrical connector |
14E |
| X35/2 |
Right front door electrical connector |
19E |
| X35/3 |
Left rear door electrical connector |
25H |
| X35/39 |
Left front door midrange speaker electrical connector |
16G |
| X35/4 |
Right rear door electrical connector |
28H |
| X35/40 |
Right front door midrange speaker electrical connector |
20G |
| X38/3 |
Left surround speaker electrical intermediate connector |
31G |
| X38/4 |
Right surround speaker electrical intermediate connector |
35G |
| Z35/10 |
MOST wake-up signal connector sleeve |
47E |
