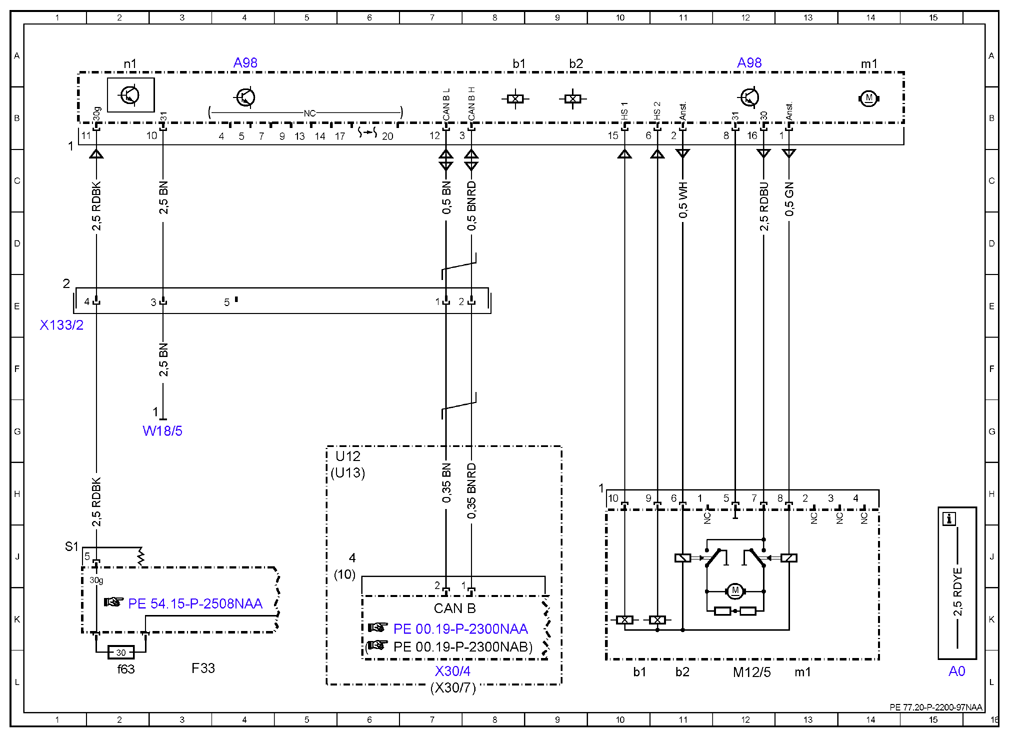

| A0 |
Color code key |
15L |
| A98 |
Panoramic sliding roof control module |
4A |
| A98 |
Panoramic sliding roof control module |
12A |
| A98b1 |
Hall sensor 1, panoramic sliding roof |
8A |
| A98b2 |
Hall sensor 2, panoramic sliding roof |
9A |
| A98m1 |
Panoramic sliding roof motor |
14A |
| A98n1 |
Panoramic sliding roof control unit |
2A |
| CAN B |
Interior CAN |
7K |
| F33 |
Battery compartment prefuse box |
3L |
| F33f63 |
Fuse 63 |
2L |
| M12/5 |
Panoramic sliding roof roller sun blind drive unit |
12L |
| M12/5b1 |
Hall sensor 1, panoramic sliding roof roller sun blind |
10L |
| M12/5b2 |
Hall sensor 2, panoramic sliding roof roller sun blind |
11L |
| M12/5m1 |
Panoramic sliding roof roller sun blind motor |
13L |
| U12 |
Valid for left-hand drive vehicles |
5G |
| U13 |
Valid for right-hand drive vehicles |
5H |
| W18/5 |
Roof ground point |
3G |
| X133/2 |
Sliding roof electrical connector |
1E |
| X30/4 |
Right potential distributor electrical connector (CAN) |
7L |
| X30/7 |
Left potential distributor electrical connector (CAN) |
7L |
