Remove/install Night View Assist control unit - AR54.30-P-3000GQ

MODEL 166 with CODE (610) Night vision assist

Shows model 166.024

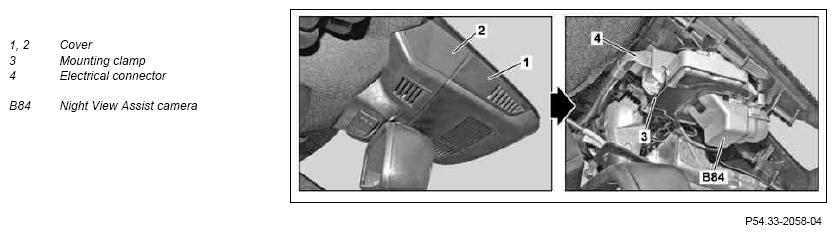

Fig 1: Identifying Night View Assist Control Unit Remove/Install Components - Shows Model 166.024

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition
2	Remove covers (1, 2)	Unclip cover (1) and remove from cover (2). Unclip cover (2) with feed lines attached downwards.
			Figure
3	Unclip mounting clamp (3) and swing downwards
4	Remove Night View Assist camera (B84) and release and detach electrical connection (4)	To avoid soiling, do not touch lens of Night View Assist camera (B84)!
5	Install in the reverse order
6	Calibrate Night View Assist camera (B84) using STAR DIAGNOSIS and calibration target	Calibration target for Night Vision Assist 0	AD00.00-P-2000-04A

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
