Remove/install transmission with torque converter - AR27.10-P-0500CWX

TRANSMISSION 722.96 in MODEL 204

TRANSMISSION 722.96 in MODEL 207.3, 212, 218

MODIFICATION NOTES

5.3.14 "Remove corrosion from crankshaft" added. Operation step 24

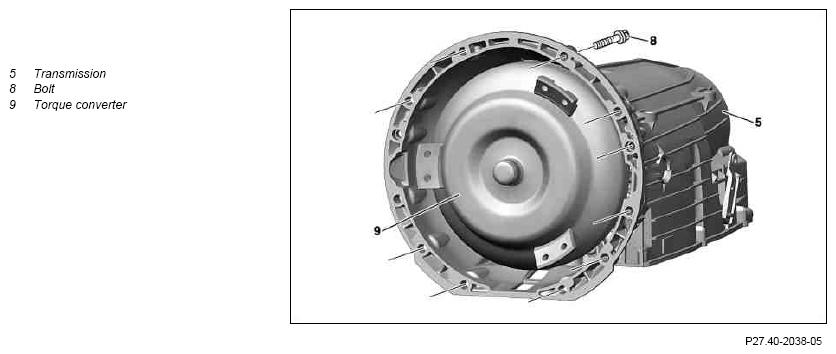

Fig 1: Identifying Transmission With Torque Converter Remove/Install Components (1 Of 2)
G09975670Courtesy of MERCEDES-BENZ USA

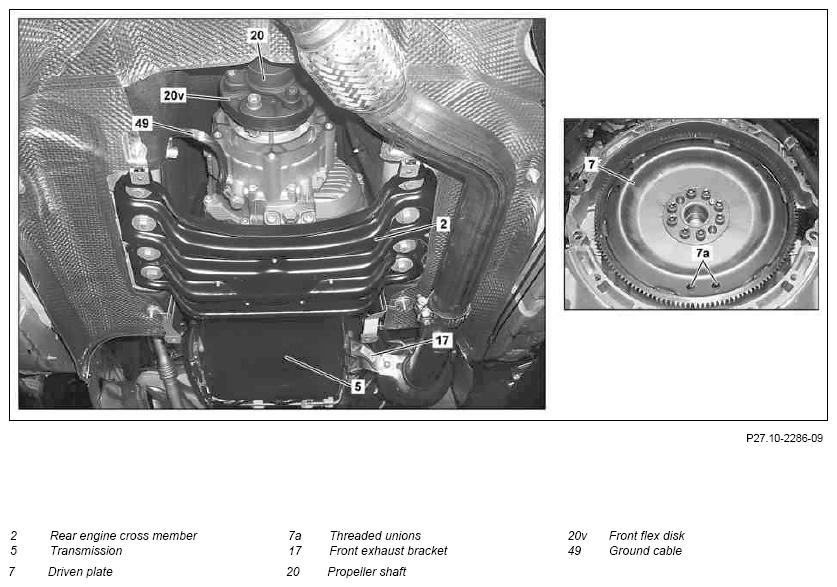

Fig 2: Identifying Transmission With Torque Converter Remove/Install Components (2 Of 2)
G09975671Courtesy of MERCEDES-BENZ USA

Shown on model 204 with diesel engine

DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
REMOVINGINSTALLING Remove/install
1 Move selector lever into position "N"
2 Release parking brake
3 Disconnect battery ground line TRANSMISSION 722.96 in MODEL 204 AR54.10-P-0003CW
TRANSMISSION 722.96 in MODEL 207.3, 212, 218 AR54.10-P-0003EW
4 Secure vehicle on vehicle lift TRANSMISSION 722.96 in MODEL 204, 207.3 AR00.60-P-0100CW
TRANSMISSION 722.96 in MODEL 212, 218 AR00.60-P-0100EWS
5.1 Remove catalytic converters TRANSMISSION 722.96 in MODEL 204.0/3/9, 207.3 with ENGINE 276
TRANSMISSION 722.96 in MODEL 204.0/9 with ENGINE 272
AR49.10-P-7100CW
5.2 Remove catalytic converters with front connecting strut TRANSMISSION 722.96 in MODEL 212 with ENGINE 272
TRANSMISSION 722.96 in MODEL 212 with ENGINE 273
AR49.10-P-7100EW
5.3 Remove catalytic converters together with center muffler TRANSMISSION 722.96 in MODEL 212 with ENGINE 276
TRANSMISSION 722.96 in MODEL 212, 218 with ENGINE 278
AR49.10-P-7100EL
5.4 Remove catalytic converter TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 642
up to model year 2009
TRANSMISSION 722.96 in MODEL 204.9 with ENGINE 274
TRANSMISSION 722.96 in MODEL 204.9, 212 with ENGINE 651
MODEL 204.9 with ENGINE 274 AR49.10-P-7100MR
MODEL 204.0/2/9 with ENGINE 642
up to model year 2009		 AR49.10-P-5500CO
Model 204.9, 212 with engine 651 AR49.10-P-5500OMD
5.5 Remove diesel particulate filter TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 642
as of model year 2009
TRANSMISSION 722.96 in MODEL 212, 218 with ENGINE 642
TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 642
as of model year 2009		 AR14.40-P-1000CWI
TRANSMISSION 722.96 in MODEL 212, 218 with ENGINE 642 AR14.40-P-1000OGE
5.6 Remove catalytic converter diesel particulate filter unit MODEL 204.0/2 with ENGINE 651
6.1 Remove front exhaust bracket(s) (17) between engine and transmission (5) TRANSMISSION 722.96 in MODEL 204.0/9 with ENGINE 272
TRANSMISSION 722.96 in MODEL 212 with ENGINE 651
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 204.0/9 with ENGINE 272		 *BA49.10-P-1008-01AC
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 204.0/9 with ENGINE 272		 *BA49.10-P-1009-01AC
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 212 with ENGINE 651		 *BA49.10-P-1023-01AE
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 212 with ENGINE 651		 *BA49.10-P-1025-01AE
6.2 Detach front exhaust bracket(s) (17) and rear exhaust bracket from transmission (5) TRANSMISSION 722.96 in MODEL 204.0/2/9, 212 with ENGINE 651
TRANSMISSION 722.96 in MODEL 204.0/2/9, 212, 218 with ENGINE 642
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 642
TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 651		 *BA49.10-P-1002-01AC
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 642
TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 651		 *BA49.10-P-1009-01AC
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 642
TRANSMISSION 722.96 in MODEL 204.0/2/9 with ENGINE 651		 *BA49.10-P-1011-01AC
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 212 with ENGINE 651
TRANSMISSION 722.96 in MODEL 212, 218 with ENGINE 642		 *BA49.10-P-1002-01AE
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 212 with ENGINE 651
TRANSMISSION 722.96 in MODEL 212, 218 with ENGINE 642		 *BA49.10-P-1024-01AE
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 212 with ENGINE 651
TRANSMISSION 722.96 in MODEL 212, 218 with ENGINE 642		 *BA49.10-P-1026-01AE
6.3 Remove exhaust bracket from transmission (5) TRANSMISSION 722.96 in MODEL 204.0/3/9, 207.3 with ENGINE 276
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 204.0/3/9 with ENGINE 276		 *BA49.10-P-1035-01AC
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 204.0/3/9 with ENGINE 276		 *BA49.10-P-1036-01AC
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 207.3 with ENGINE 276		 *BA49.10-P-1023-01AE
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 207.3 with ENGINE 276		 *BA49.10-P-1024-01AE
7 Mark position of front flexible coupling (20v) relative to transmission (5) NOTES In order when installing to be able to reproduce the installation position used by the plant.
Otherwise, drive train vibrations will occur.
8 Detach front flexible coupling (20v) on transmission (5) TRANSMISSION 722.96 in MODEL 204, 207.3 AR41.10-P-0050CW
TRANSMISSION 722.96 in MODEL 212, 218
TORQUE SPECIFICATION The front flexible coupling (20v) remains on the propeller shaft (20).		 AR41.10-P-0050EW
9 Remove shield and disconnect electrical connector on electric controller unit TRANSMISSION 722.96 in MODEL 204, 207.3 AR27.40-P-0700-01CW
TRANSMISSION 722.96 in MODEL 212, 218 AR27.40-P-0700-01EW
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 204
TRANSMISSION 722.96 in MODEL 207.3		 *BA27.40-P-1014-01A
TORQUE SPECIFICATION
TRANSMISSION 722.96 in MODEL 212, 218		 *BA27.40-P-1014-01A
10 Detach ground line (49) from transmission (5) TORQUE SPECIFICATION Bolt, ground strap to transmission *BA15.10-P-1002-05C
11 Support transmission (5) and secure to prevent it from falling down Transmission platform
Transmission jack
12 Remove rear engine cross member (2)   AR22.10-P-1180CW
NOTES Notes on bolted connections with self tapping screws AH00.00-P-0007-01SF
13.1 Detach shift rod at range selector lever of transmission (5) TRANSMISSION 722.96 in MODEL 204.0/2/3, 207.3
INSTALLATION IMPORTANT Replace retaining clamp.
13.2 Detach electrical line from intelligent servo module for DIRECT SELECT TRANSMISSION 722.96 in MODEL 212, 218
14 Disconnect electrical line from transmission oil pump, unclip from transmission (5) and place outside of the working area If an auxiliary oil pump is installed.
15.1 Detach front axle transmission drive shaft and fasten to transmission (5) using tensioning strap TRANSMISSION 722.96 in MODEL 204.0/2/3
TRANSMISSION 722.96 in MODEL 207.3, 212, 218
TRANSMISSION 722.96 in MODEL 204.0/2/3, 207.3 AR41.10-P-0070CWX
TRANSMISSION 722.96 in MODEL 212.08/09/28/29, 218.39 AR41.10-P-0070EWX
15.2 Remove front axle gear propeller shaft TRANSMISSION 722.96 in MODEL 204.9
AR41.10-P-0070CWX
16 Remove oil drain screw from transmission oil pan and drain automatic transmission fluid When replacing the transmission (5) or the torque converter (9).
INSTALLATION IMPORTANT Replace seal.
If the transmission oil is burnt or interspersed with abrasion, the oil cooler lines and oil cooler must be flushed out.
↓
Flush out automatic transmission and torque converter
AR27.55-P-0100B
TORQUE SPECIFICATION Oil drain screw to oil pan *BA27.10-P-1001-03D
17 Detach bracket of wiring harness on transmission (5) TRANSMISSION 722.96 in MODEL 204.0/9, 212 with ENGINE 272
18 Detach oil cooling lines from transmission (5), transfer case and engine oil pan and place to one side   AR27.55-P-0600CWX
19 Detach torque converter (9) from driven plate (7) and pry driven plate (7) off evenly using a long wedge   AR27.20-P-0100-01A
NOTES Do not use an impact wrench/driver or a compressed-air tool.
Otherwise the threaded unions (7a) of the driven plate (7) may be damaged.
TORQUE SPECIFICATION Bolt, torque converter to driver spider *BA27.20-P-1002-01C
SPECIAL TOOL Socket wrench bit Figure
SPECIAL TOOL Long wedge Figure
20 Remove starter from transmission (5) TRANSMISSION 722.96 in MODEL 204 with ENGINE 272 AR15.30-P-7100CV
MODEL 212 with ENGINE 272 with TRANSMISSION 722.96
MODEL 212 with ENGINE 273 with TRANSMISSION 722.96		 AR15.30-P-7100EW
TRANSMISSION 722.96 in MODEL 204 with ENGINE 274 AR15.30-P-7100MR
TRANSMISSION 722.96 in MODEL 204.0/3/9, 207.3 with ENGINE 276 AR15.30-P-7100FH
TRANSMISSION 722.96 in MODEL 212 with ENGINE 276 AR15.30-P-7100EL
TRANSMISSION 722.96 in MODEL 212, 218 with ENGINE 278 AR15.30-P-7100ELB
TRANSMISSION 722.96 in MODEL 204.08/28/98 AR15.30-P-7100CWX
MODEL 212, 218 with ENGINE 642 with TRANSMISSION 722.96 AR15.30-P-7100SXI
TRANSMISSION 722.96 in MODEL 204 with ENGINE 651
TRANSMISSION 722.96 in MODEL 212 with ENGINE 651
IMPORTANT Place starter to the side with lines connected and secure to prevent it falling down.		 AR15.30-P-7100CD
21 Remove screws/bolts (8) INSTALLATION IMPORTANT Secure bracket of electric feed lines at transmission (5).
TORQUE SPECIFICATION Bolt, automatic transmission to engine *BA27.40-P-1008-01A
22 Remove transmission (5) from below IMPORTANT Secure torque converter (9) to prevent it from falling out.
INSTALLATION IMPORTANT Align the holes of the torque converter (9) with the threaded unions (7a) in the driven plate (7).
23 Remove torque converter (9) If necessary.
AR27.20-P-0500-01W
Installed height of torque converter *BE27.20-P-1001-01E
Multi-purpose paste *BR00.45-Z-1009-06A
SPECIAL TOOL Parallel rest Figure
SPECIAL TOOL Handles Figure
24 Remove corrosion from crankshaft   AR03.20-P-1000-01A
Assembly cleaner *BR00.45-Z-1028-04A
Multi-purpose paste *BR00.45-Z-1009-06A
INSPECT Check
25 Check threaded unions (7a) of driven plate (7) If threaded unions (7a) are damaged or loose:
↓
Replace driven plate (7).
MODEL 212, 218 with ENGINE 276 with TRANSMISSION 722.96
MODEL 212, 218 with ENGINE 278 with TRANSMISSION 722.96		 AR03.30-P-8001EL
MODEL 212, 218 with ENGINE 642 with TRANSMISSION 722.96 AR03.30-P-8001SXI
MODEL 204 with ENGINE 274 with TRANSMISSION 722.96 AR03.30-P-8001MR
MODEL 207.3 with ENGINE 276 with TRANSMISSION 722.96 AR03.30-P-8001FH
MODEL 204 with ENGINE 272 with TRANSMISSION 722.96 AR03.30-P-8001CV
MODEL 204 with ENGINE 642 with TRANSMISSION 722.96 AR03.30-P-8001CO
MODEL 204 with ENGINE 651 with TRANSMISSION 722.96
MODEL 212 with ENGINE 651 with TRANSMISSION 722.96		 AR03.30-P-8001CD
26 Check rear engine mount for wear and damage If necessary replace rear engine mount.
↓
Remove/install engine mount or engine cross member at the rear
AR22.10-P-1180CW
27 Install in the reverse order
28 Fill transmission (5) with transmission oil, check transmission oil level and correct if necessary When replacing the transmission (5) or if transmission oil is drained off.
AR27.00-P-0270SYZ
29 Read out fault memory using the diagnostic system and clear if necessary
REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
30 Perform transmission adaptation using diagnostic system After replacement or repair of transmission (5)
31 Reset data on service life of torque converter lockup clutch using diagnostic system After replacing torque converter (9)
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
30 Test run engine and check transfer case and transmission (5) for leaks and function
TEST VALUES FOR TORQUE CONVERTER

Number Designation TRANSMISSION 722.9
BE27.20-P-1001-01E Installed height of torque converter Distance, bolt flange to transmission housing flange Helical screwed connection mm 9, 5
AR27.20-P-0500-01W
Axial screwed connection mm 19, 5
GROUND STRAP

Number Designation MODEL 204 MODEL 207
BA15.10-P-1002-05C Bolt, ground strap to transmission M8 Nm 27 16
M10 Nm - -
GROUND STRAP

Number Designation MODEL 212 MODEL 218
BA15.10-P-1002-05C Bolt, ground strap to transmission M8 Nm 25 -
M10 Nm 39 39
OIL PAN, AUTOMATIC TRANSMISSION

Number Designation TRANSMISSION 722.9
BA27.10-P-1001-03D Oil drain screw to oil pan Nm 22
TORQUE CONVERTER

Number Designation TRANSMISSION 722.9
BA27.20-P-1002-01C Bolt, torque converter to driver spider Straight threaded connection M8 Nm 42
Angled threaded connection Stage 1 Nm 4
Stage 2 Nm 30
Stage 3 ∠° 90
HOUSING

Number Designation TRANSMISSION 722.9
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10X40 Nm 38
M10X45 Nm 38
M10X90 Nm 38
M12 Nm -
HOUSING

Number Designation TRANSMISSION 722.9
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm 9
EXHAUST SYSTEM

Number Designation ENGINE 642, 646, 651 in MODEL 204
BA49.10-P-1002-01AC Bolt connecting catalytic converter to turbocharger Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 642, 651 in MODEL 212 ENGINE 642, 651 in MODEL 218
BA49.10-P-1002-01AE Bolt, catalytic converter to turbocharger Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 271, 272 in MODEL 204
BA49.10-P-1008-01AC Bolt, exhaust pipe bracket to transmission Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 156, 271, 272 in MODEL 204 ENGINE 642, 646, 651 in MODEL 204
BA49.10-P-1009-01AC Bolt, exhaust pipe bracket to exhaust pipe Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 642, 646, 651 in MODEL 204
BA49.10-P-1011-01AC Nut, suspension ring to connecting pipe Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 271, 272, 273, 276, 278 in MODEL 207 ENGINE 642, 651 in MODEL 212
BA49.10-P-1023-01AE Bolt, exhaust system bracket to transmission Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 271, 272, 273, 276, 278 in MODEL 207 ENGINE 642, 651 in MODEL 212
BA49.10-P-1024-01AE Bolt/nut, exhaust system bracket to exhaust system Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 642, 651 in MODEL 218
BA49.10-P-1024-01AE Bolt/nut, exhaust system bracket to exhaust system Nm 20
EXHAUST SYSTEM

Number Designation ENGINE 642, 651 in MODEL 212
BA49.10-P-1025-01AE Bolt, exhaust system to main floor panel M8 Nm 20
M10 Nm 50
EXHAUST SYSTEM

Number Designation ENGINE 642, 651 in MODEL 212 ENGINE 642, 651 in MODEL 218
BA49.10-P-1026-01AE Nut, suspension ring to pipe Nm 20 20
EXHAUST SYSTEM

Number Designation ENGINE 276 in MODEL 204
BA49.10-P-1035-01AC Bolt, exhaust system bracket to transmission Nm 25
EXHAUST SYSTEM

Number Designation ENGINE 276 in MODEL 204
BA49.10-P-1036-01AC Bolt, exhaust system bracket to exhaust flange Nm 35
Fig 3: Identifying Long Wedge (115 589 03 59 00)
G09975672Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Parallel Rest (126 589 04 31 00)
G09975673Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Handles (168 589 00 62 00)
G09975674Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Socket Wrench Bit (001 589 65 09 00)
G09975675Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1009-06A Multi-purpose paste A 000 989 80 51 10
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
scientia non olet · About LEMON Manuals
