Transmission mode control unit, component description - GF27.19-P-1350AHV
TRANSMISSION 722.930 in MODEL 204.0/2/3

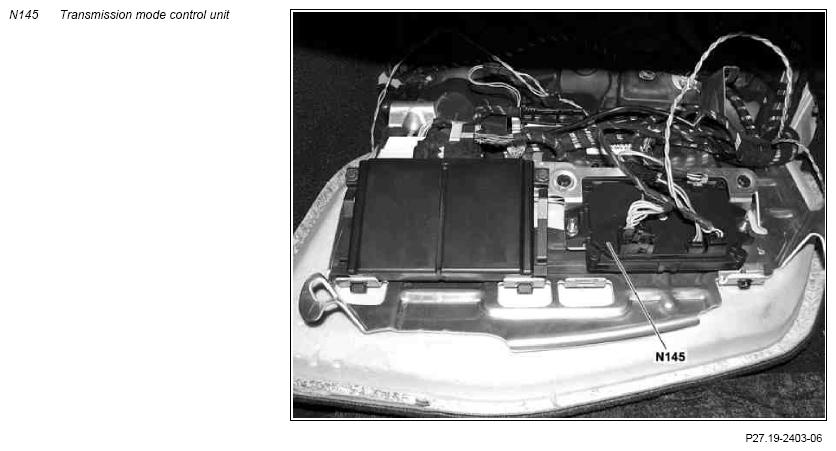

Location
The transmission mode control unit is on the right under the step plate in the front passenger footwell.
Task
General
On the transmission mode control unit, up to 5 modular buttons or sensors can be directly connected. They are read in by the transmission mode control unit directly or via the AMG DRIVE UNIT LIN (LIN B11), processed digitally and placed on the chassis CAN (CAN E) and on the drive train CAN (CAN C).
The transmission mode control unit contains memory functions for storing states (e.g. settings). Apart from this, the transmission mode control unit is also equipped with an internal fault memory.
Input and output signals
The transmission mode control unit evaluates the following input signals and issues the corresponding output signals:
- Direct input signals
- Direct output signals
- CAN input signals
- CAN output signals
- AMG DRIVE UNIT LIN signals
Direct input signals
- Terminal 30
- Circuit 31
Direct output signals
- None
CAN input signals
Electronic ignition lock control unit (N73)
- Circuit 50 and circuit 15, signal
Front SAM control unit with fuse and relay module (N10/1)
- Diagnosis communication
CAN output signals
Instrument cluster (A1)
- Transmission mode selection
ME-SFI [ME] control unit (N3/10)
- Transmission mode selection
Fully integrated transmission control unit (Y3/8n4)
- Transmission mode selection
Front SAM control unit with fuse and relay module (N10/1)
- Diagnosis communication
AMG DRIVE UNIT LIN signals
Transmission mode rotary switch (S192)
- Transmission mode selection "RS", "C", "S", "S +" and "M".
| Designation | Unit | Value | Tolerance range | Remarks |
|---|---|---|---|---|
| Transmission mode control unit (N145) | ||||
| Power supply | V | 8 - 12 | ||
| Overvoltage | V | 18 | For 60 min. | |
| Jump start | V | 27 | For 1 min. | |
| Load Dump | V | 32 | For 400 ms | |
| Power consumption: No-load current mode | mA mA |
0, 1 - 0, 5 80 - 180 |
||
| Reverse polarity protection | V | 16 | For maximal 1 min. | |
| Flash capability | Yes | |||
| Coding capability | No | |||
| Transmission mode rotary switch (S192) | ||||
| Model | Rotary switch | |||
| Power supply | V | 12 | ||
| Power consumption | mA | 500 | ||
| Signal transmission | Over AMG DRIVE UNIT-LIN (LIN B11) |
| Wiring diagram for drive unit control unit | N145 | PE54.21-P-2128-97FAA |
