Remove/install exhaust manifold - AR14.10-P-3915CWX

ENGINES 272 in MODEL 204.08/95/98

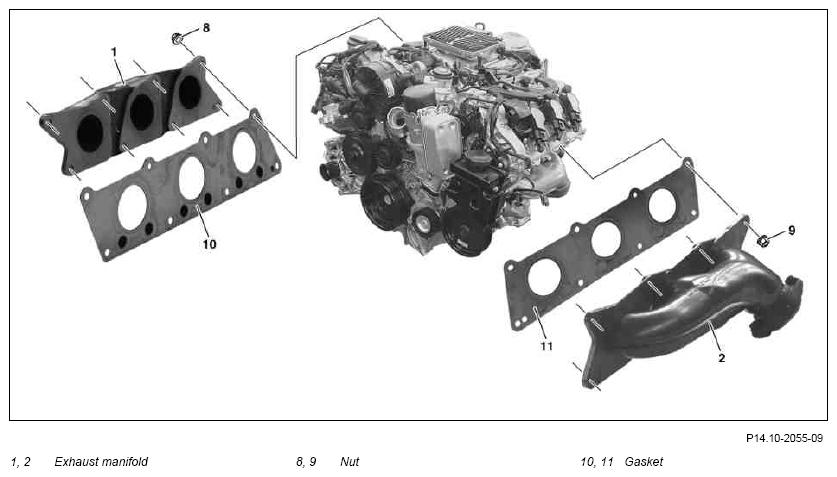

Fig 1: Identifying Exhaust Manifold Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove air filter housing		AR09.10-P-1150CV
2	Remove left and right upper bolt on heat shield for engine mount from engine support
3	Remove rear and middle section of engine compartment paneling
	Only perform steps 4 to 8 for removal of the right exhaust manifold (1)
4	Remove right catalytic converter		AR49.10-P-7100CW
5	Detach electrical wiring harness for alternator, starter on cylinder head at front and middle
6	Unscrew nuts (8) from above		*BA14.10-P-1001-01E
7	Remove left and right upper bolt on heat shield for engine mount from engine support and remove heat shield
8	Unscrew nuts (8) from below and remove exhaust manifold (1) and seal (10)	Replace nuts and seal.
			*BA14.10-P-1001-01E
	Only perform steps 9 to 13 for removal of the left exhaust manifold (2)
9	Detach ground line from battery		AR54.10-P-0003CW
	Notes on battery		AH54.10-P-0001-01A
10	Remove left catalytic converter		AR49.10-P-7100CW
11	Unscrew nuts (9) from above		*BA14.10-P-1001-01E
12	Remove left and right upper bolt on heat shield for engine mount from engine support and remove heat shield
13	Unscrew nuts (9) from below and remove exhaust manifold (2) and seal (11)	Replace nuts and seal.
			*BA14.10-P-1001-01E
14	Install in the reverse order

EXHAUST MANIFOLD

Number	Designation		Engine 272
BA14.10-P-1001-01E	Nut, exhaust manifold to cylinder head	Nm	16
